Injector Control Module Replacement

  1. Remove the passenger's dashboard undercover, refer to the PASSENGER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION .
  2. Remove the right kick panel, refer to the TRIM REMOVAL/INSTALLATION - PILLAR AREAS .
  3. Disconnect the injector control module connector

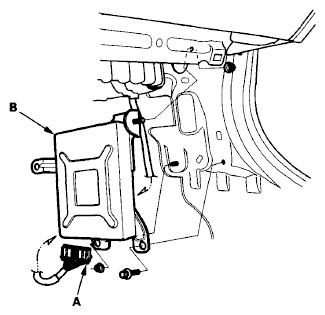

    Fig 1: Disconnecting Injector Control Module Connector
    G06769252Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the injector control module (B).
  5. Install the parts in the reverse order of removal.
