Accessory Power Socket Relay, Front and Accessory Power Socket Relay, Console Connector End View

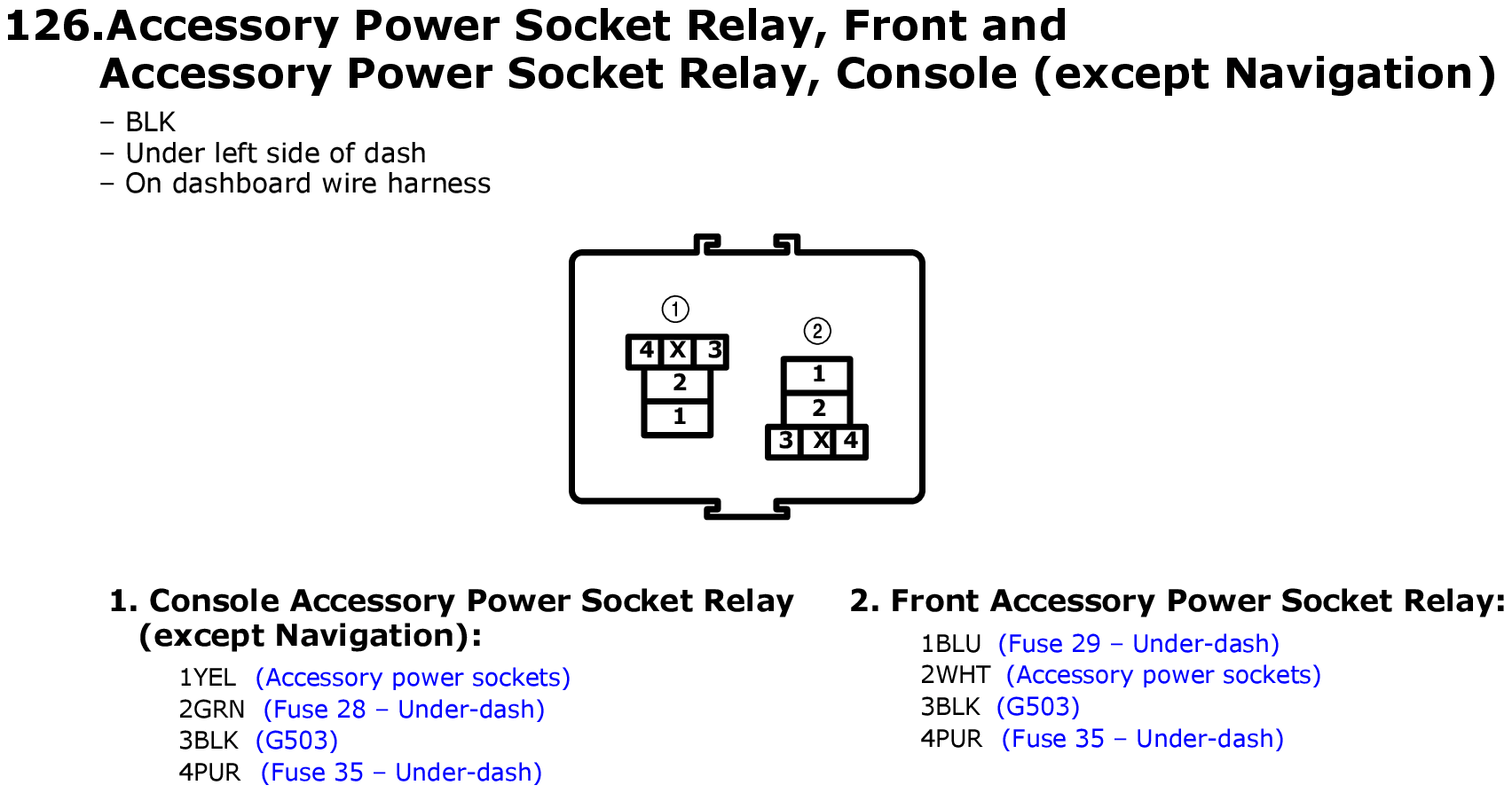

Fig 1: Accessory Power Socket Relay, Front and Accessory Power Socket Relay, Console Connector End View
GHHW2465Courtesy of AMERICAN HONDA MOTOR CO., INC.
