Gauge Control Module (Speedo) Connector End View

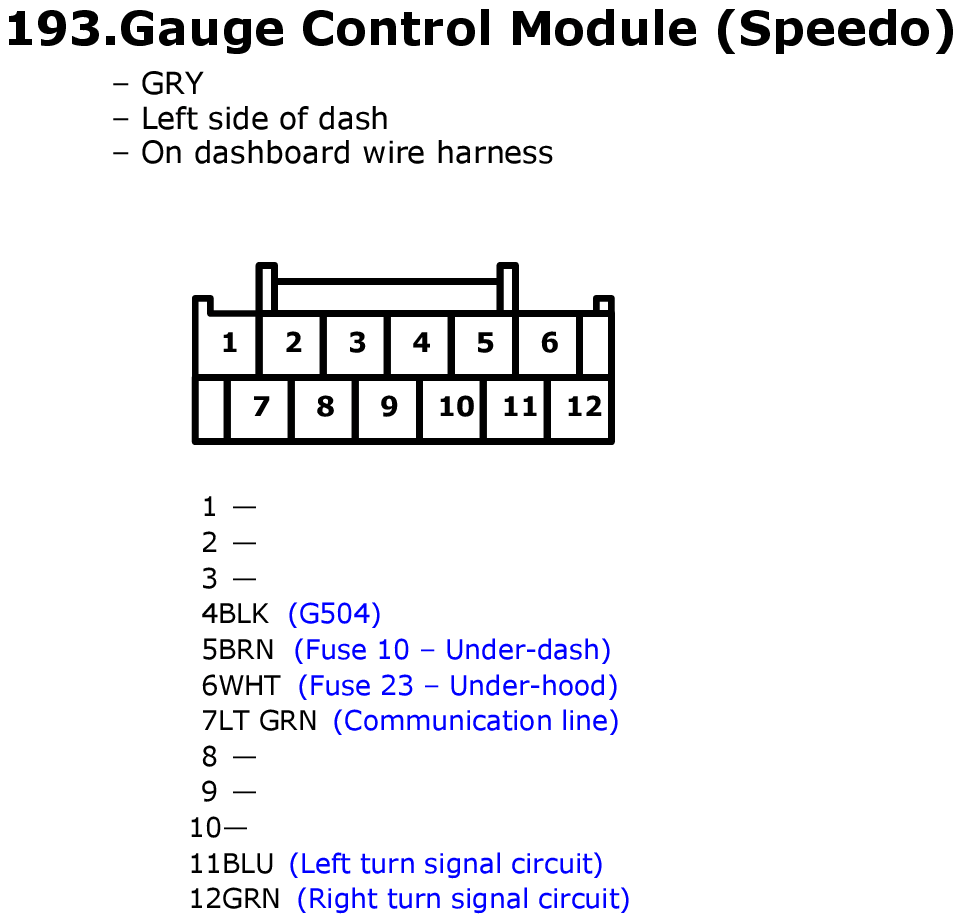

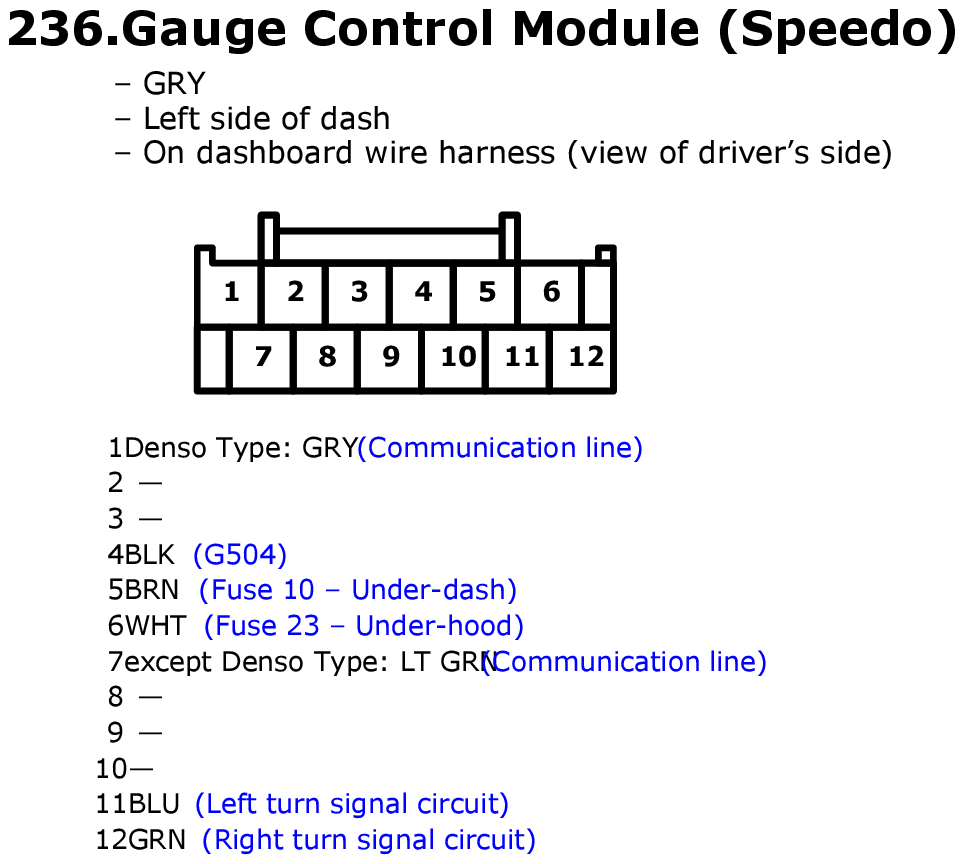

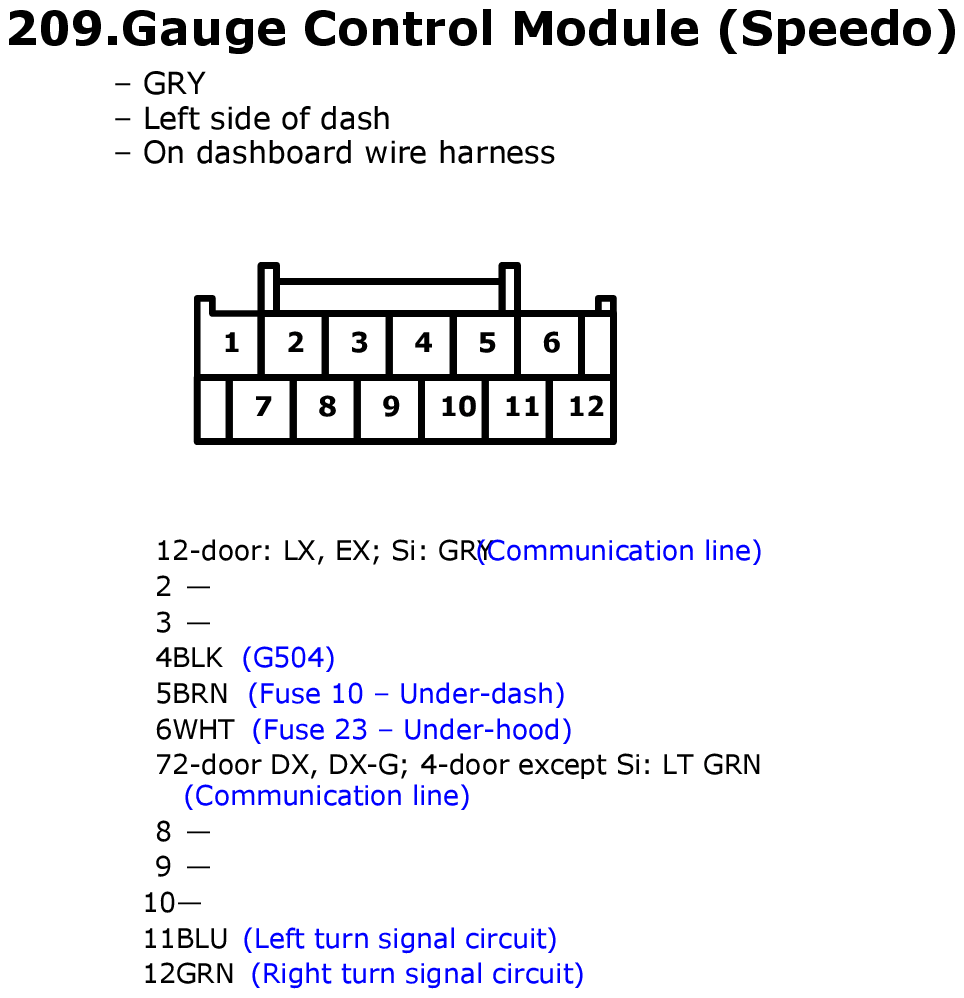

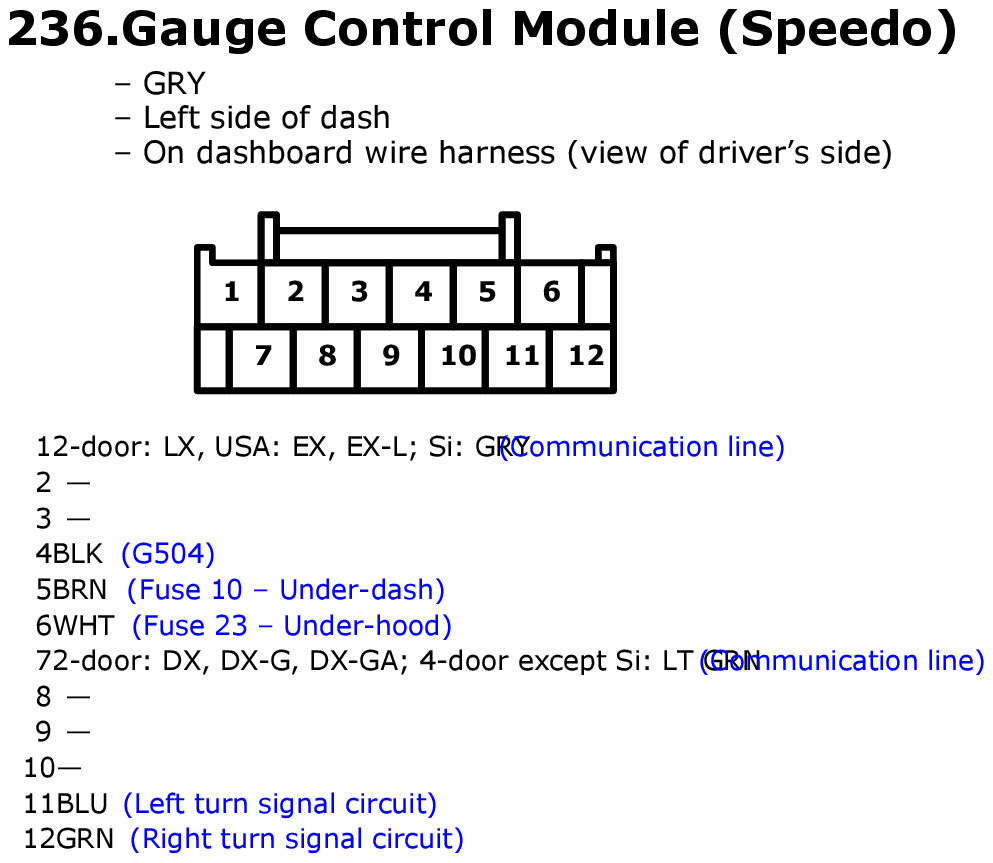

Fig 1: Gauge Control Module (Speedo) Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Gauge Control Module (Speedo) Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Gauge Control Module (Speedo) Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Gauge Control Module (Speedo) Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Gauge Control Module (Speedo) Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Gauge Control Module (Speedo) Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.
