Recirculation Control Motor Connector End View

Fig 1: Recirculation Control Motor Connector End View
GHHW1113Courtesy of AMERICAN HONDA MOTOR CO., INC.

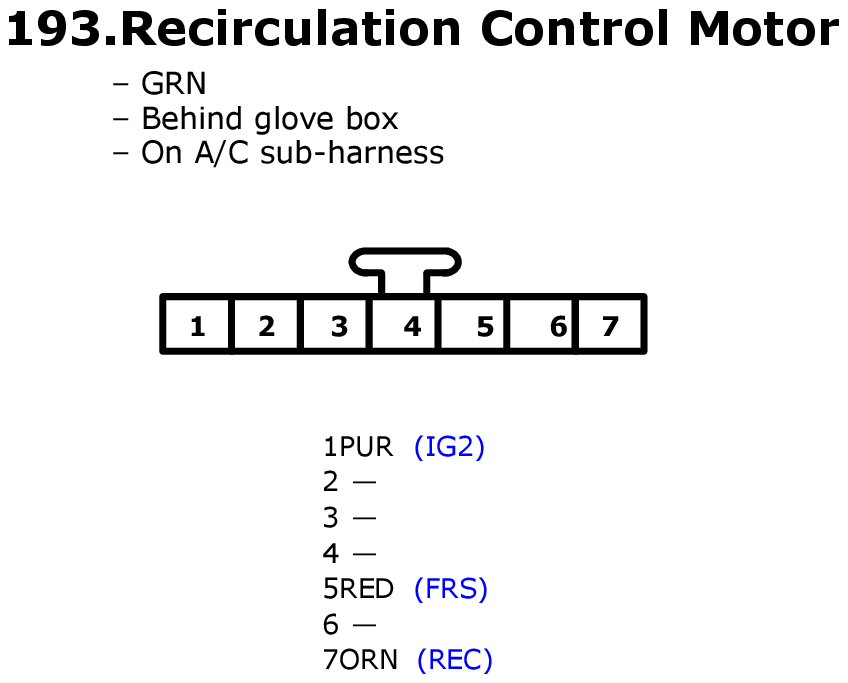

Fig 1: Recirculation Control Motor Connector End View
GHHW1389Courtesy of AMERICAN HONDA MOTOR CO., INC.

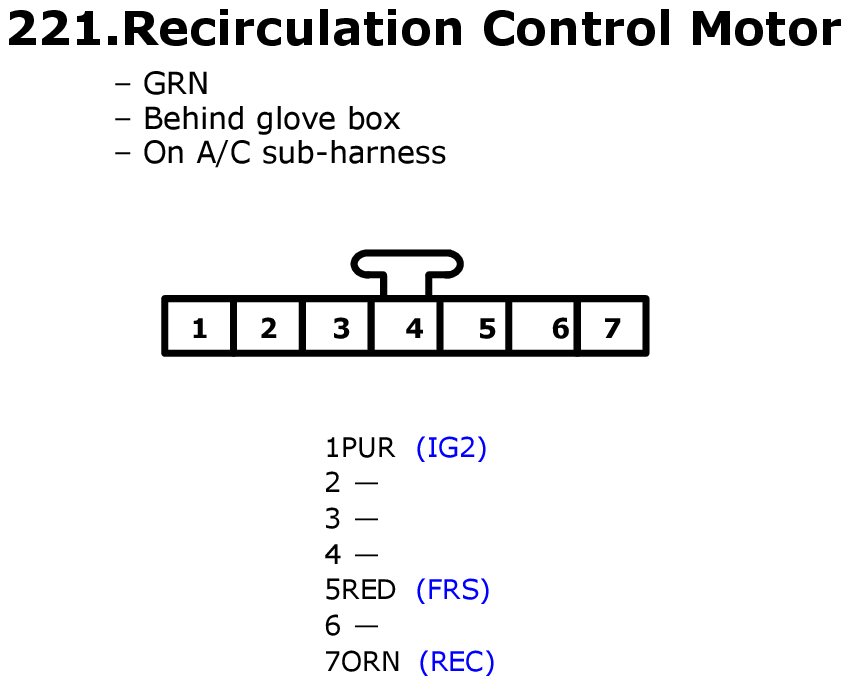

Fig 1: Recirculation Control Motor Connector End View
GHHW1695Courtesy of AMERICAN HONDA MOTOR CO., INC.

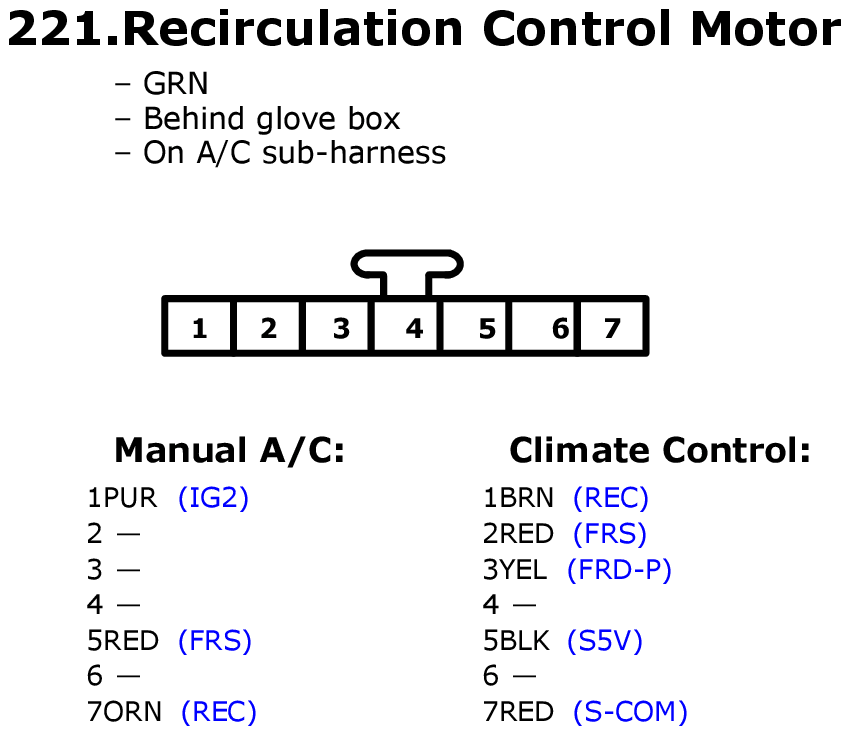

Fig 1: Recirculation Control Motor Connector End View
GHHW1999Courtesy of AMERICAN HONDA MOTOR CO., INC.

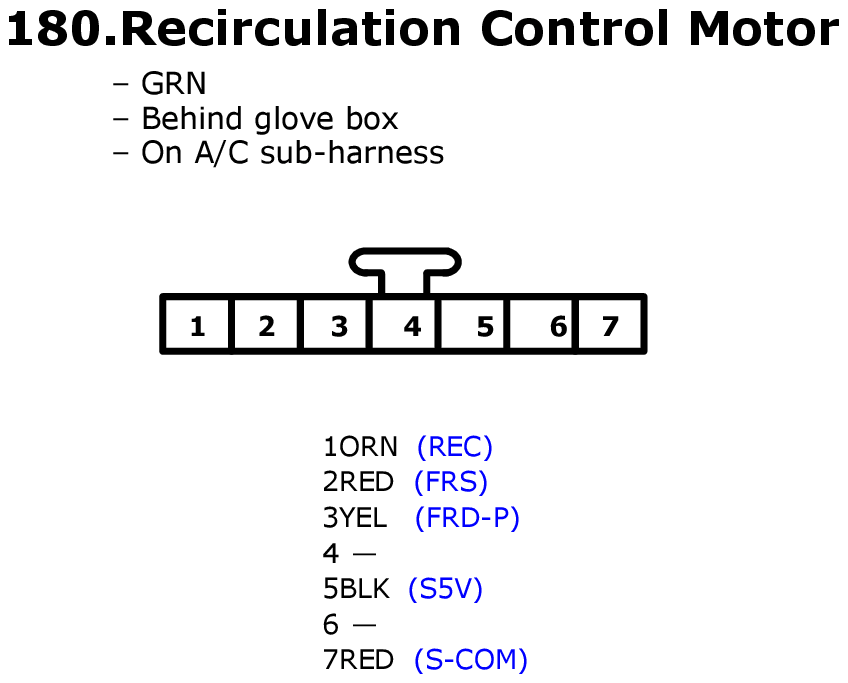

Fig 1: Recirculation Control Motor Connector End View
GHHW2268Courtesy of AMERICAN HONDA MOTOR CO., INC.

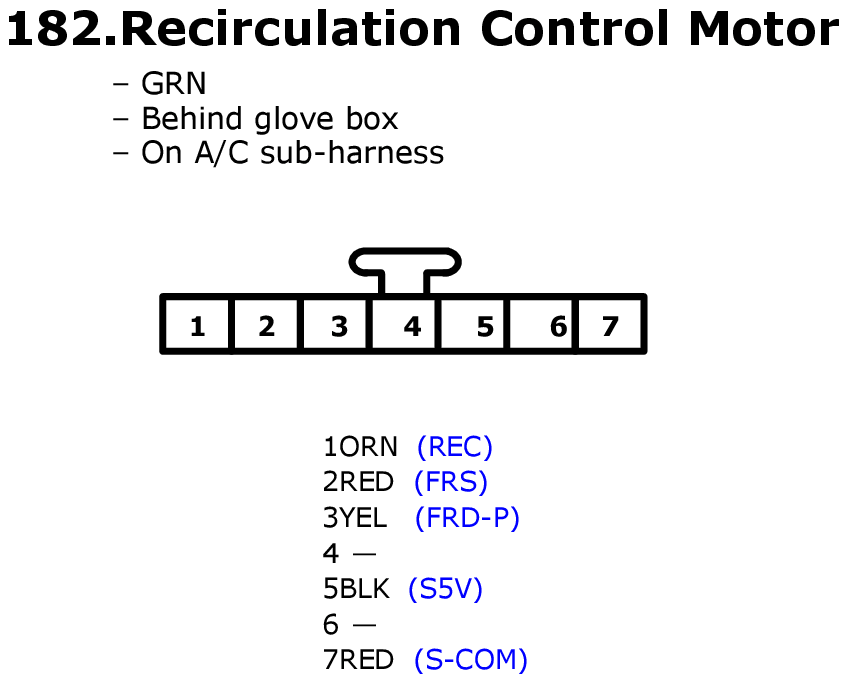

Fig 1: Recirculation Control Motor Connector End View
GHHW2521Courtesy of AMERICAN HONDA MOTOR CO., INC.
