Component Location Index

NOTE: Refer to the PGM-FI SYSTEM (SUPPLEMENT) (GX) article for additional information for the GX model.

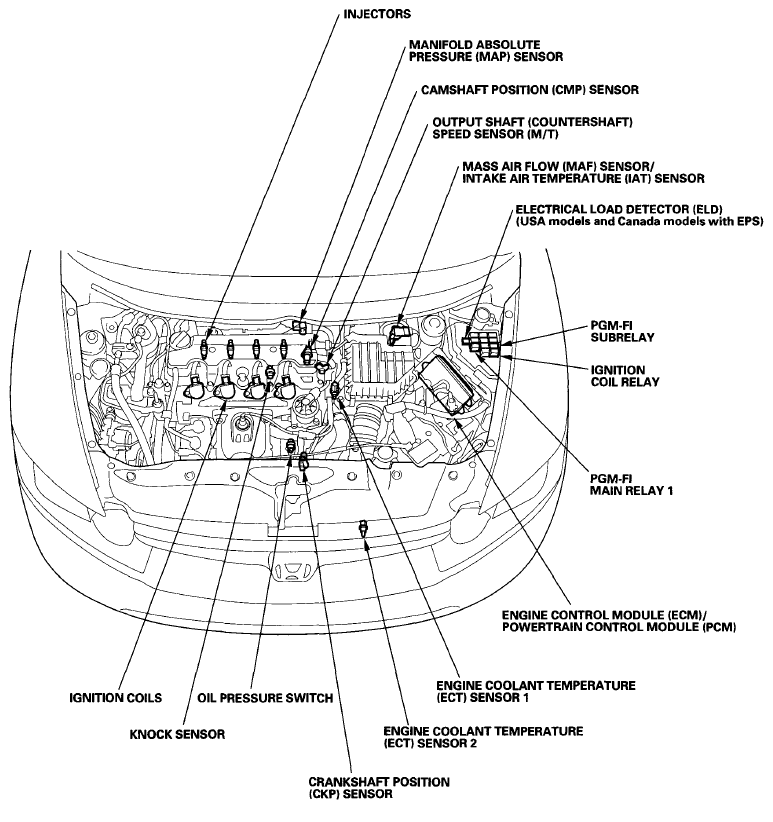

Fig 1: Identifying PGM-FI System Component Location (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

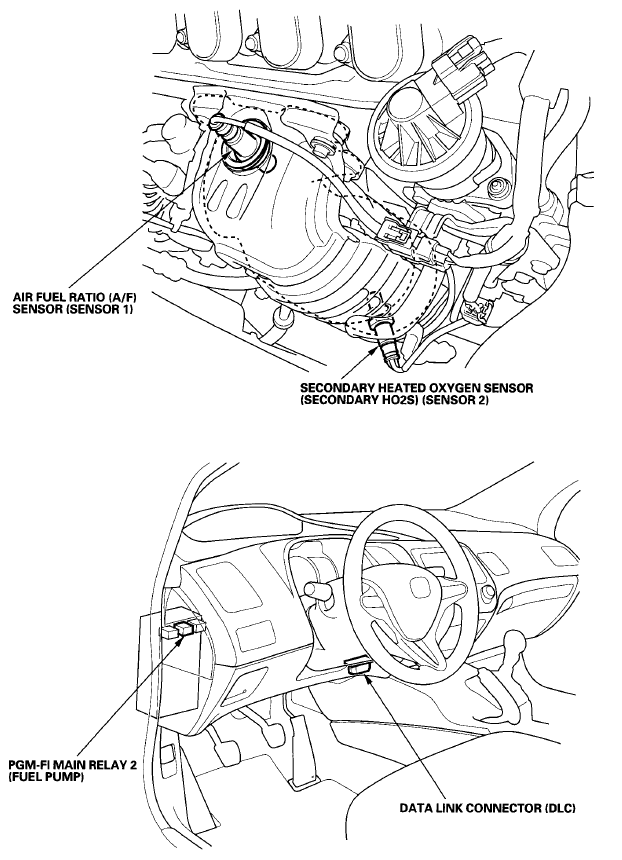

Fig 2: Identifying PGM-FI System Component Location (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
