FTP Sensor Connector End View

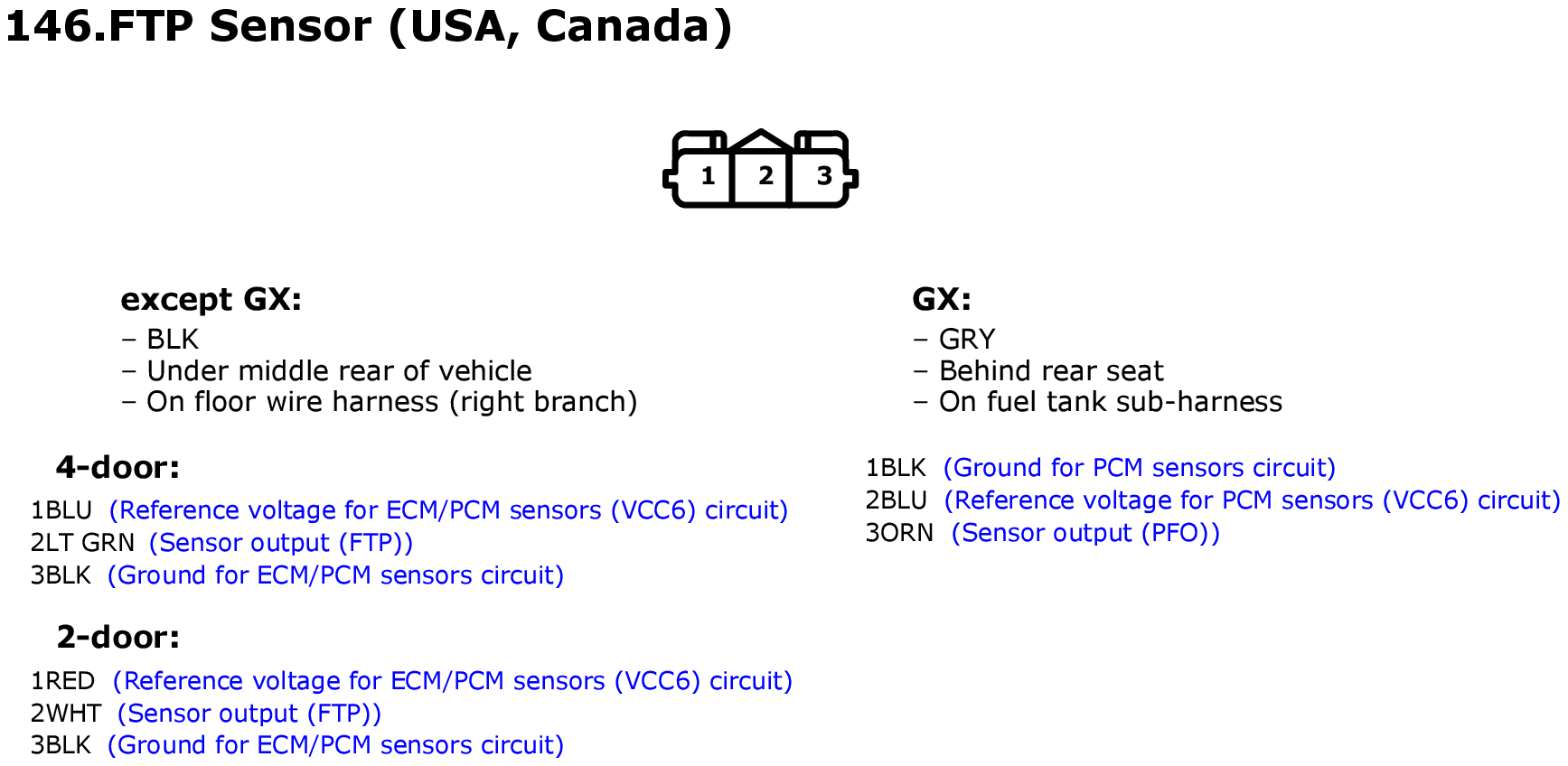

Fig 1: FTP Sensor Connector End View
GHHW1924Courtesy of AMERICAN HONDA MOTOR CO., INC.

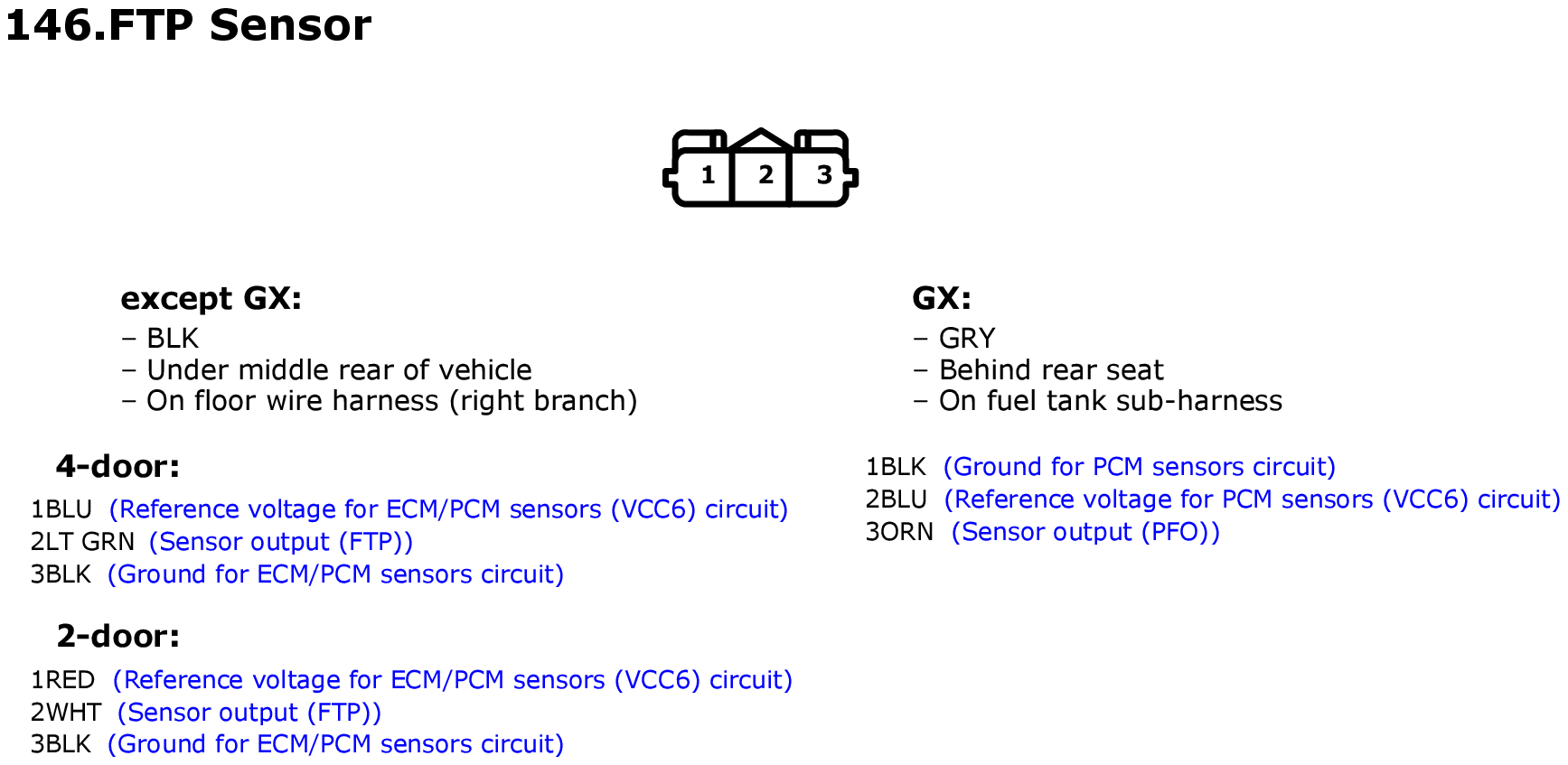

Fig 1: FTP Sensor Connector End View
GHHW1620Courtesy of AMERICAN HONDA MOTOR CO., INC.

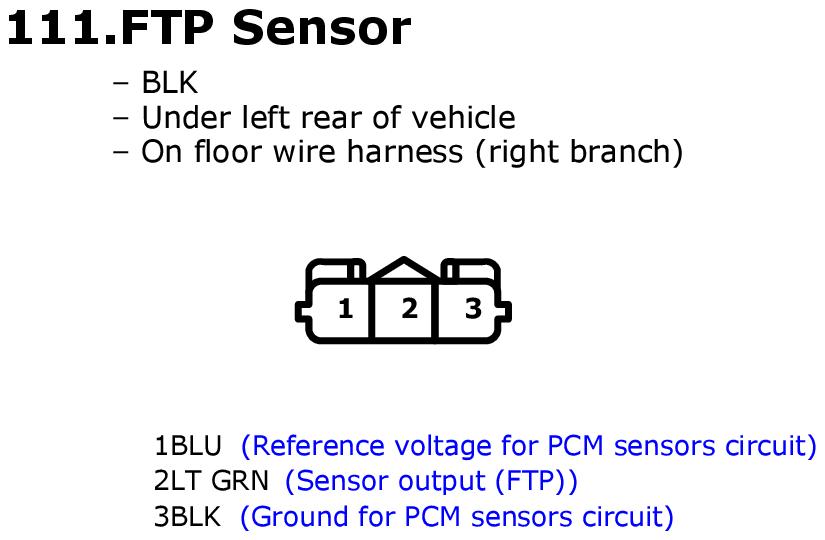

Fig 1: FTP Sensor Connector End View
GHHW2199Courtesy of AMERICAN HONDA MOTOR CO., INC.
