DTC P1890: Problem in CVT Speed Control System: Notes

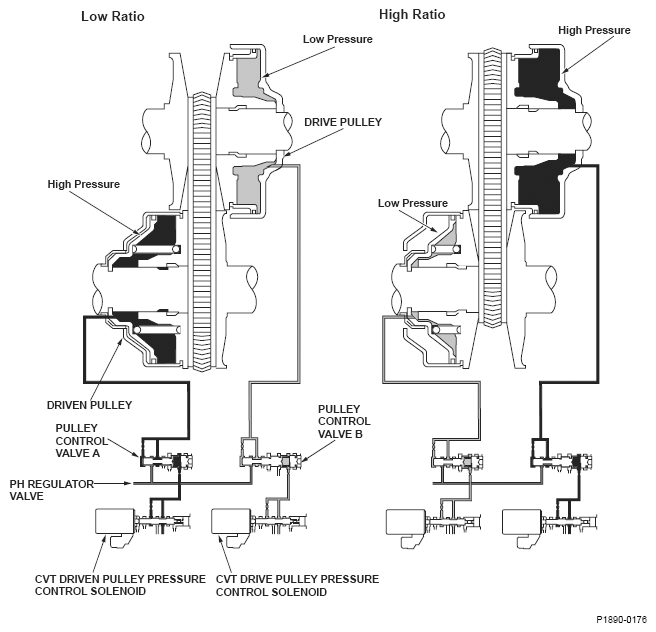

Fig 1: CVT Speed Control System Diagram

G04826704
