Climate Control Unit Bulb Removal/Installation
Climate Control Unit Bulb Replacement1. Remove the climate control unit.
2. Discharge the static electricity (which accumulated on you when you removed the climate control unit) by touching the door striker or other body parts.
3. Remove the self-tapping screws, then carefully separate the climate control unit display (A) from the control unit (B). Do not kink or pull on the wires between the display and the control panel. Do not touch the electronic components on the printed circuit board in the control panel.

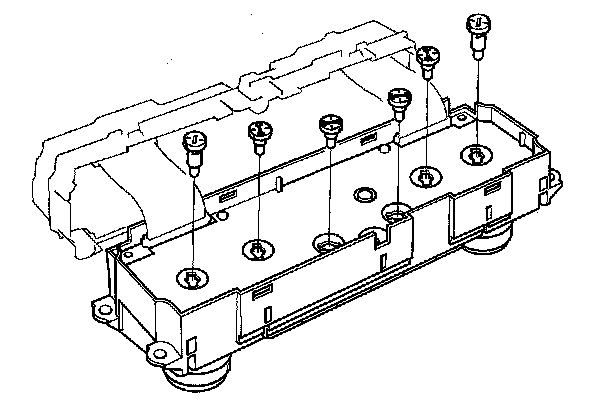

4. Remove the bulbs with a flat-tip screwdriver.
5. Install the bulbs in the reverse order of removal.
