Pinout Values and Diagnostic Parameters

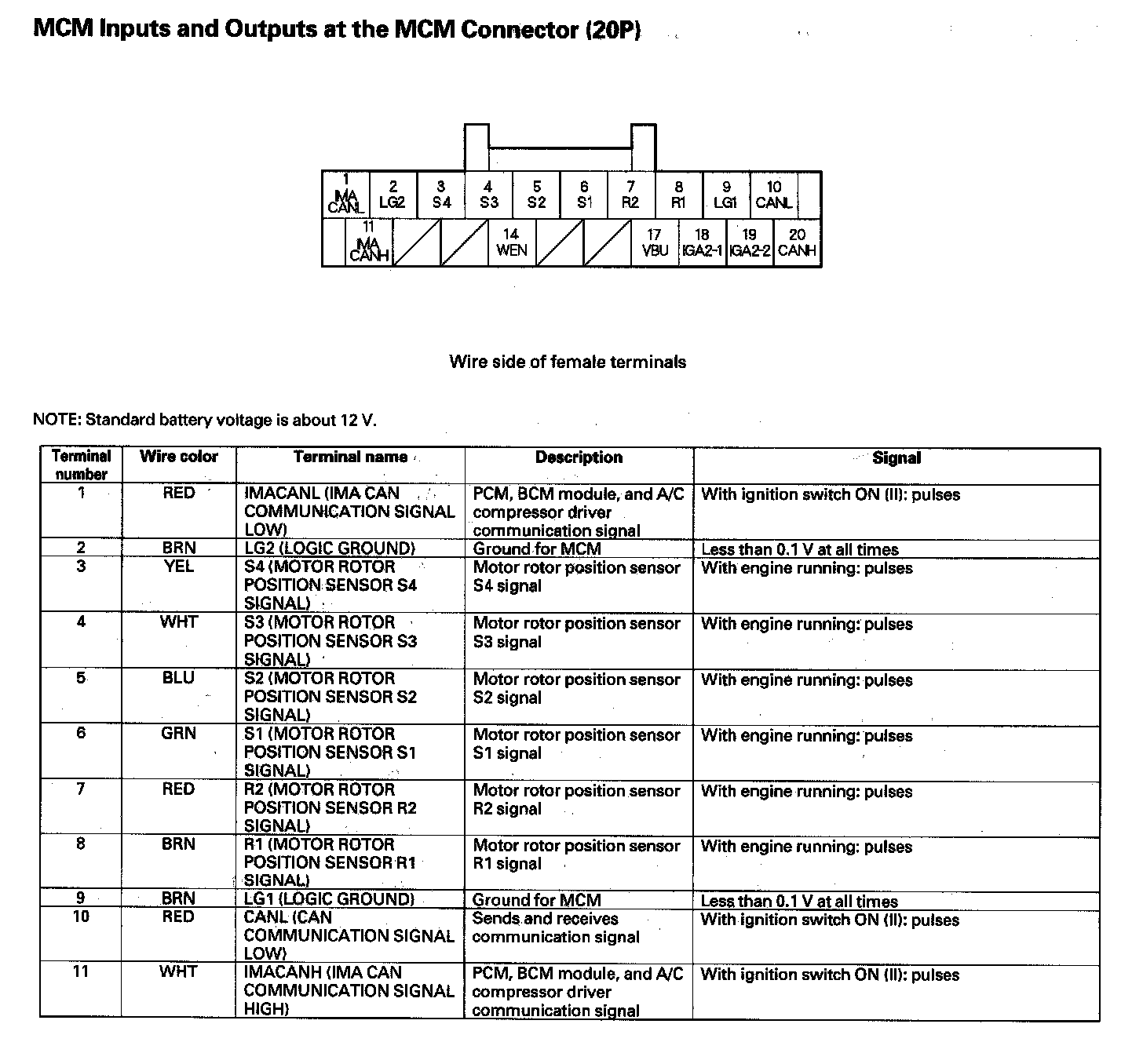

MCM Inputs And Outputs At The MCM Connector (20P) Part 1:

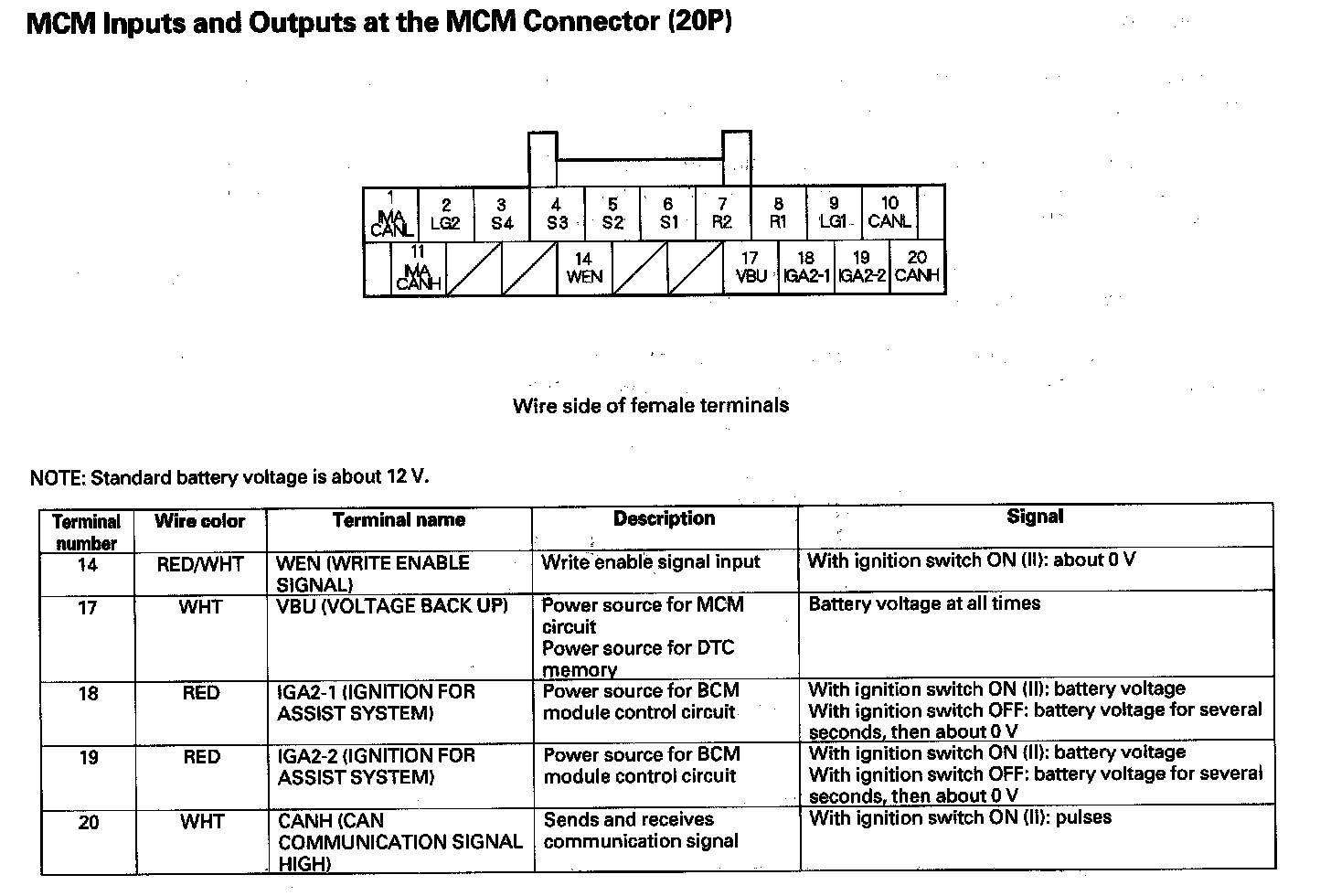

MCM Inputs And Outputs At The MCM Connector (20P) Part 2:
