Pinout Values and Diagnostic Parameters

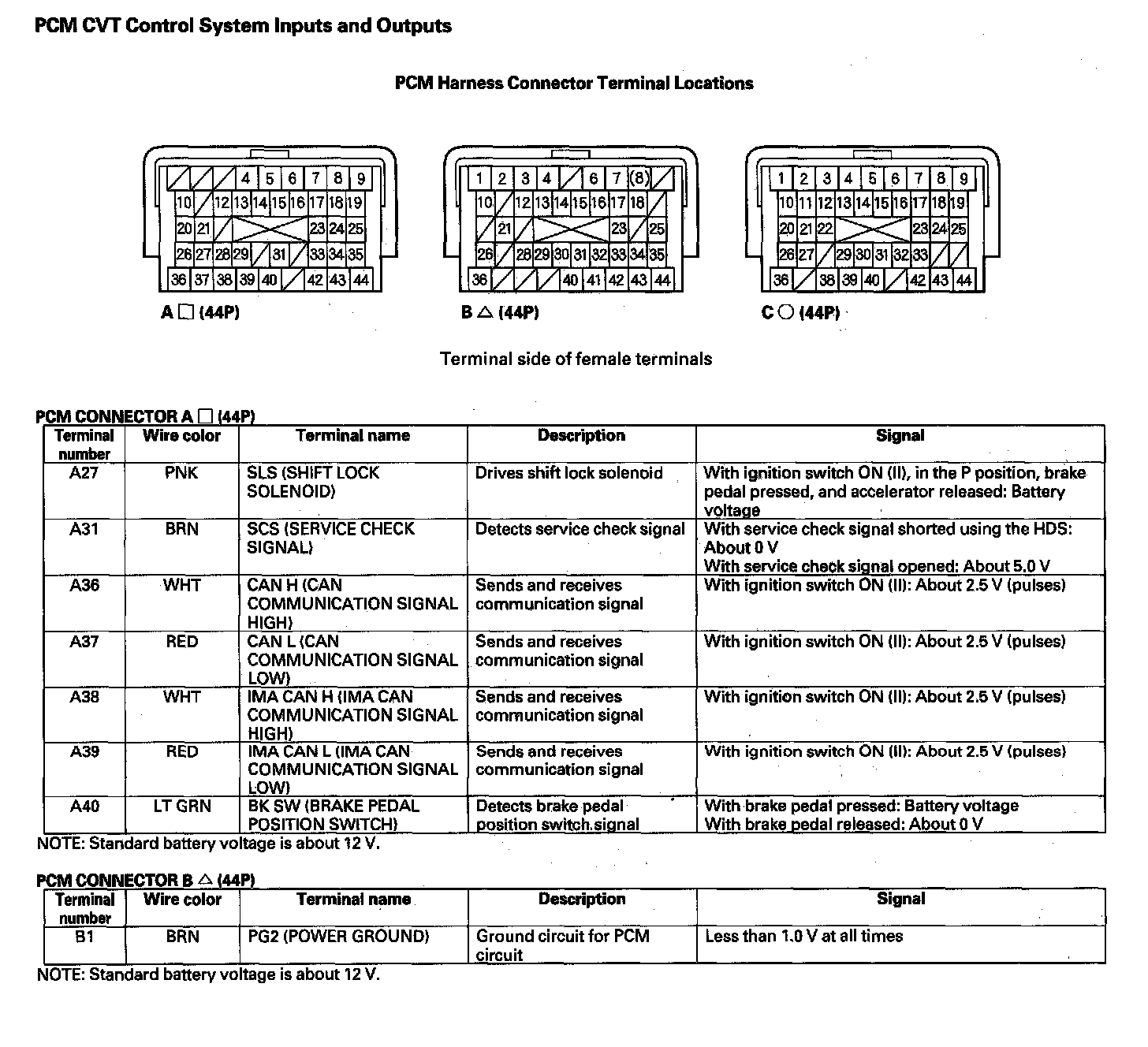

PCM CVT Control System Inputs and Outputs (Part 1):

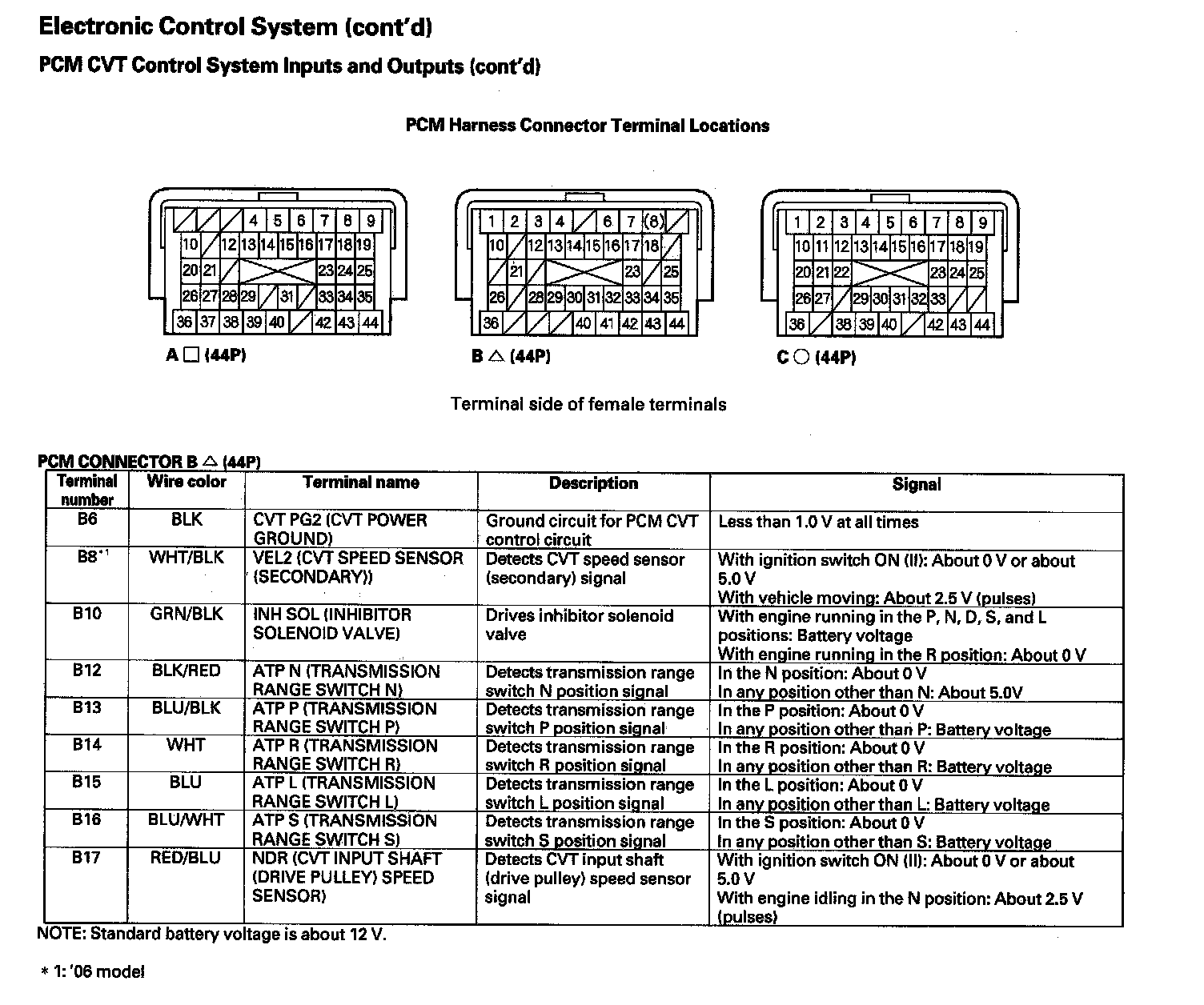

PCM CVT Control System Inputs and Outputs (Part 2):

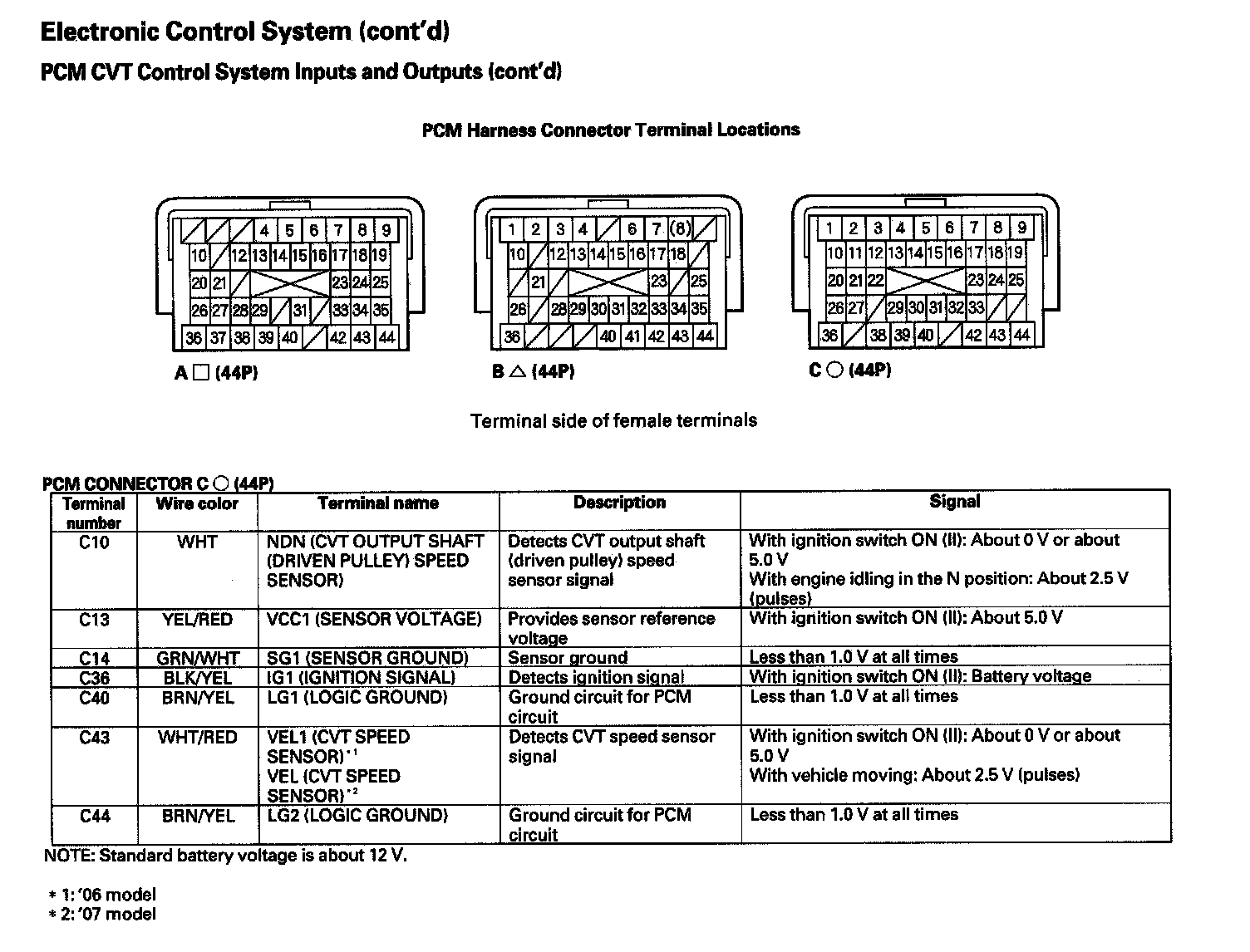

PCM CVT Control System Inputs and Outputs (Part 3):

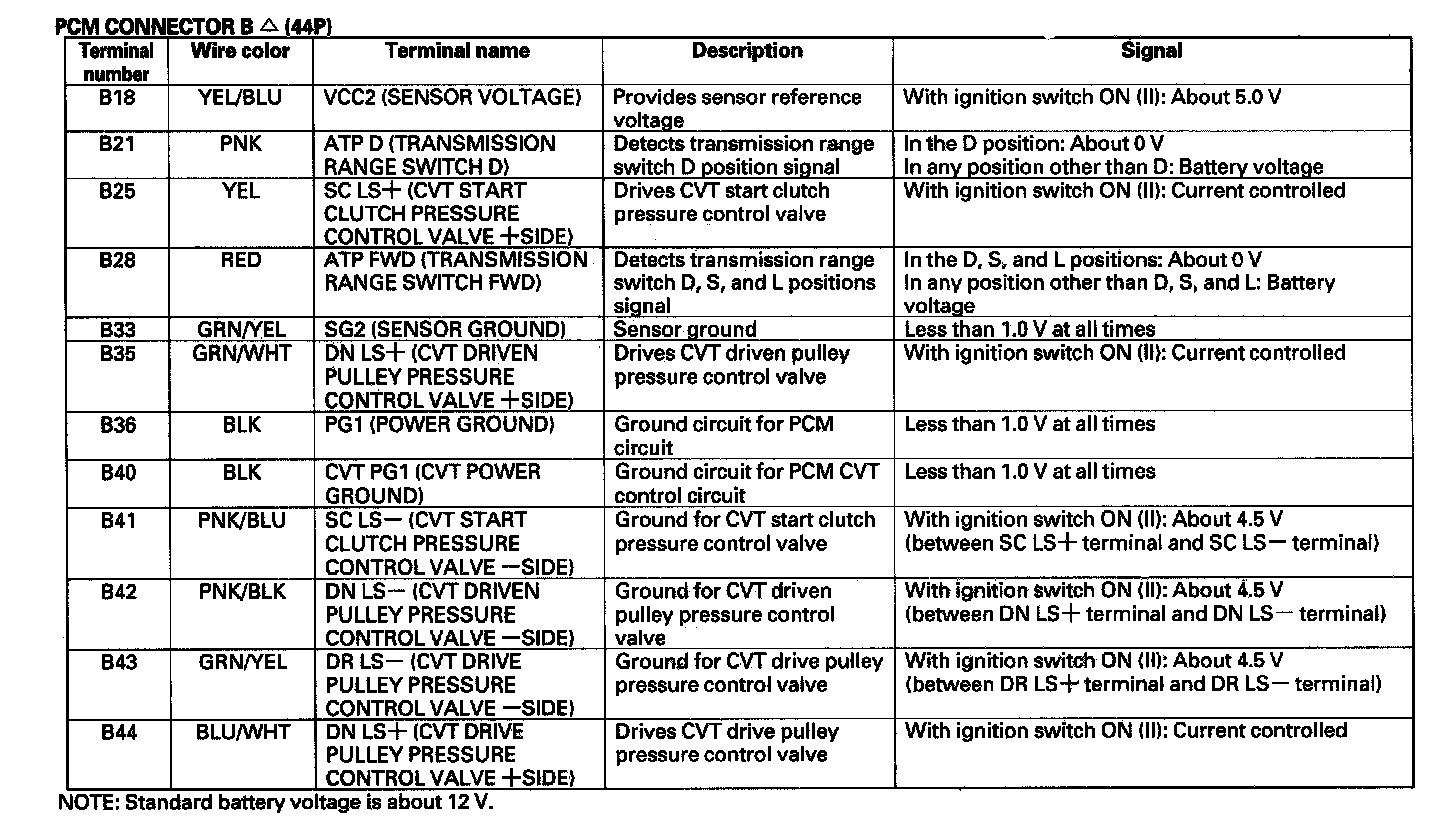

PCM CVT Control System Inputs and Outputs (Part 4):
