ECM/PCM Input and Outputs

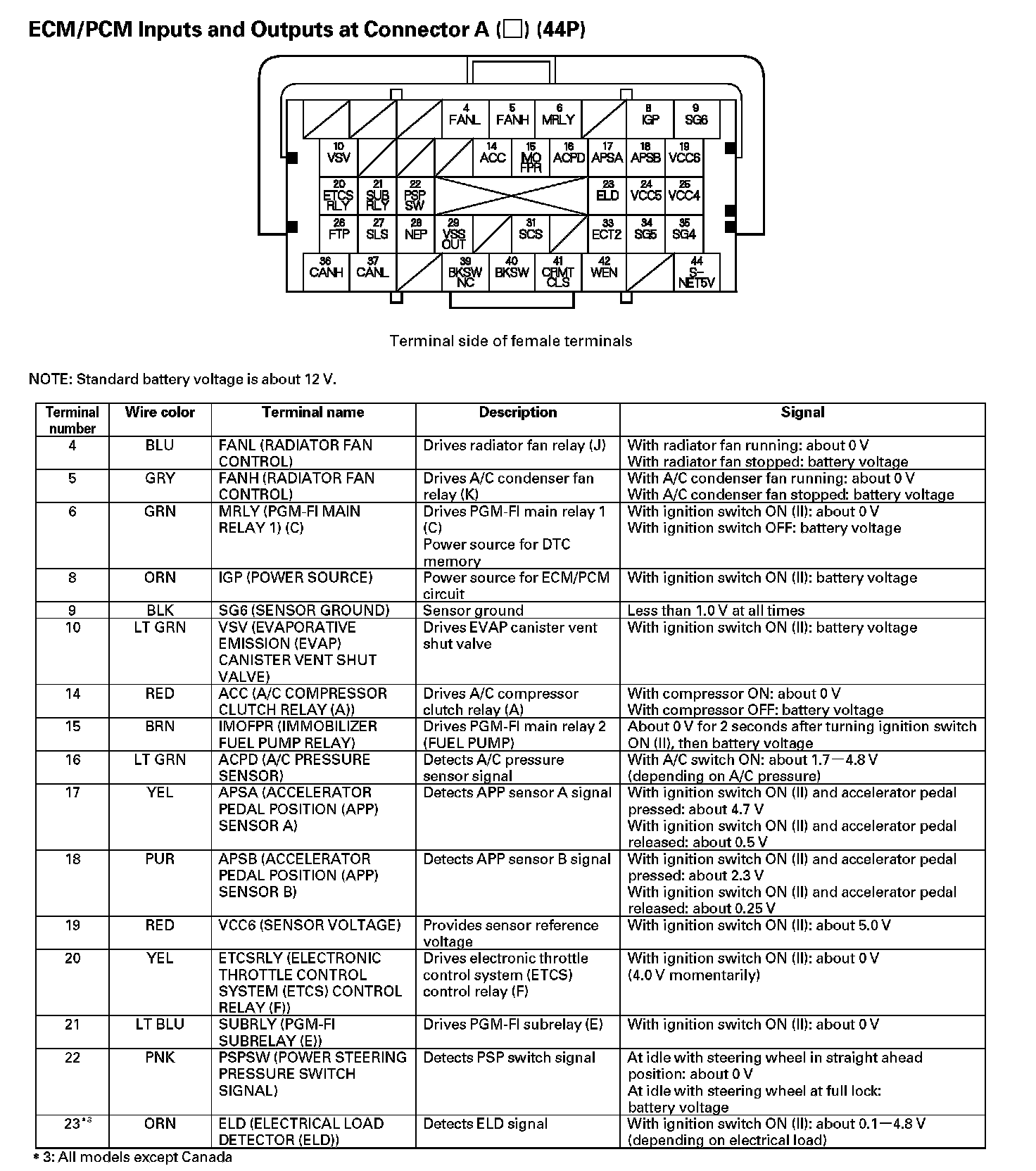

ECM/PCM Inputs And Outputs At Connector A (44P) Part 1:
ECM/PCM Inputs And Outputs At Connector A (44P) Part 2:

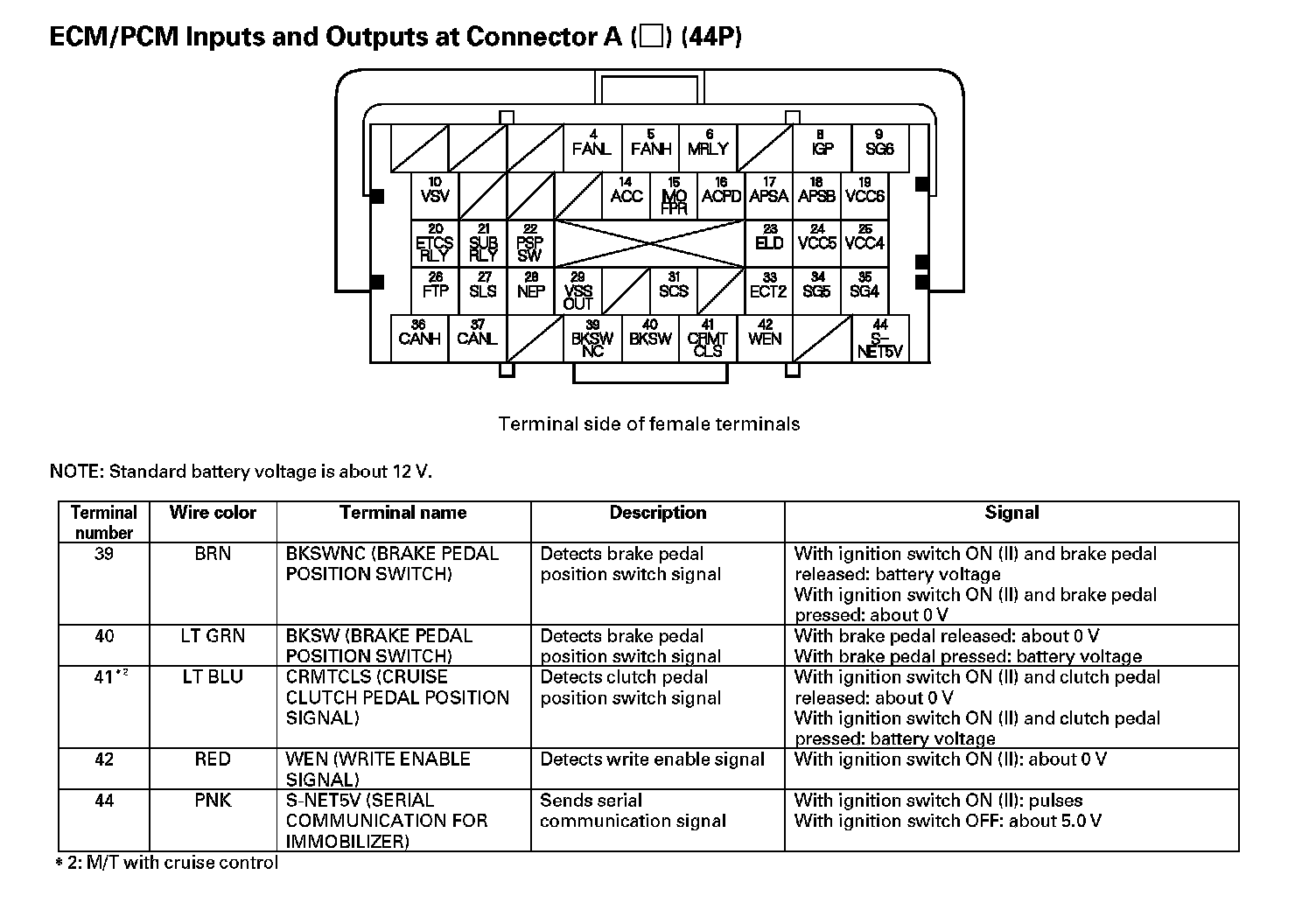

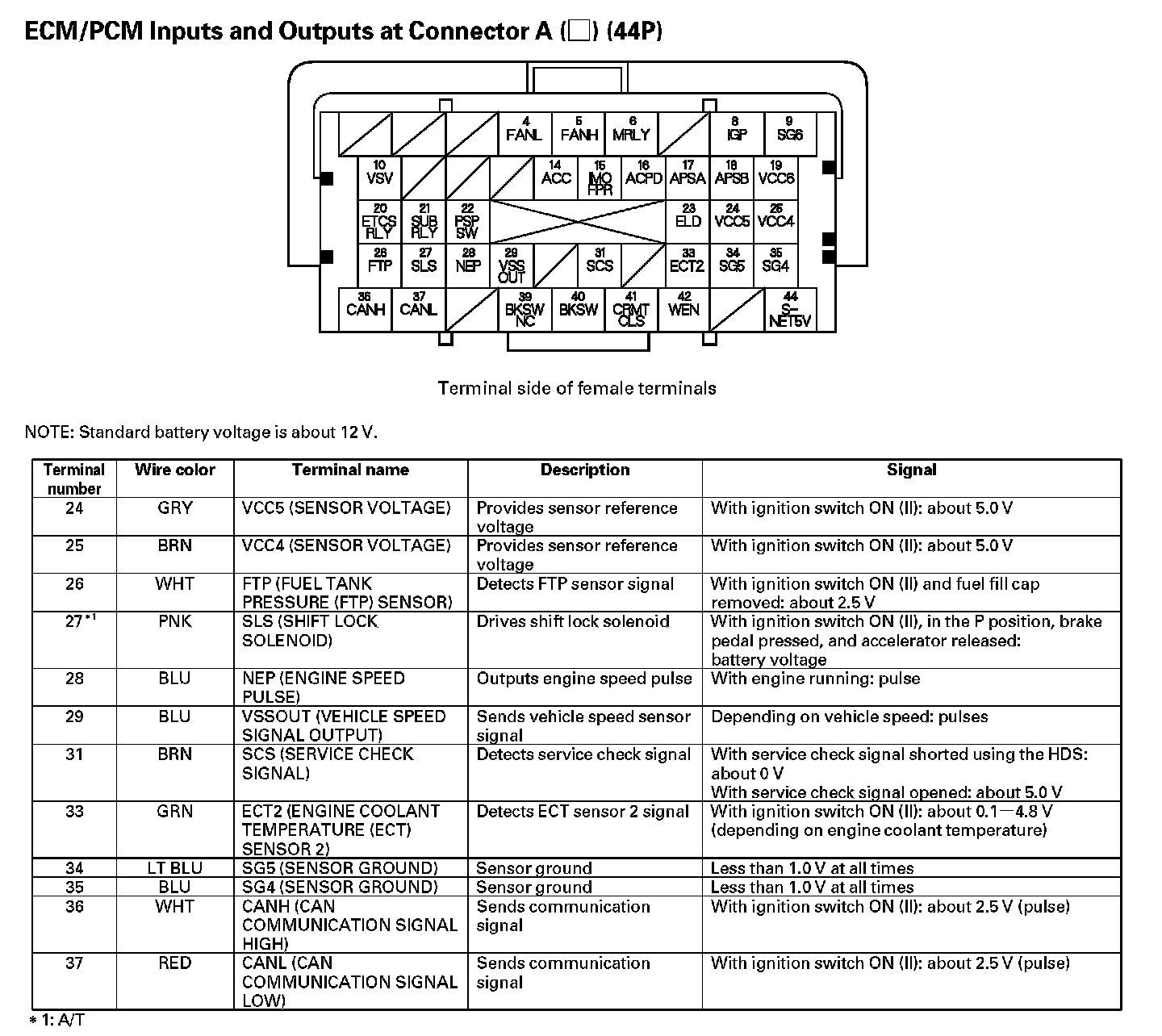

ECM/PCM Inputs And Outputs At Connector A (44P) Part 3:

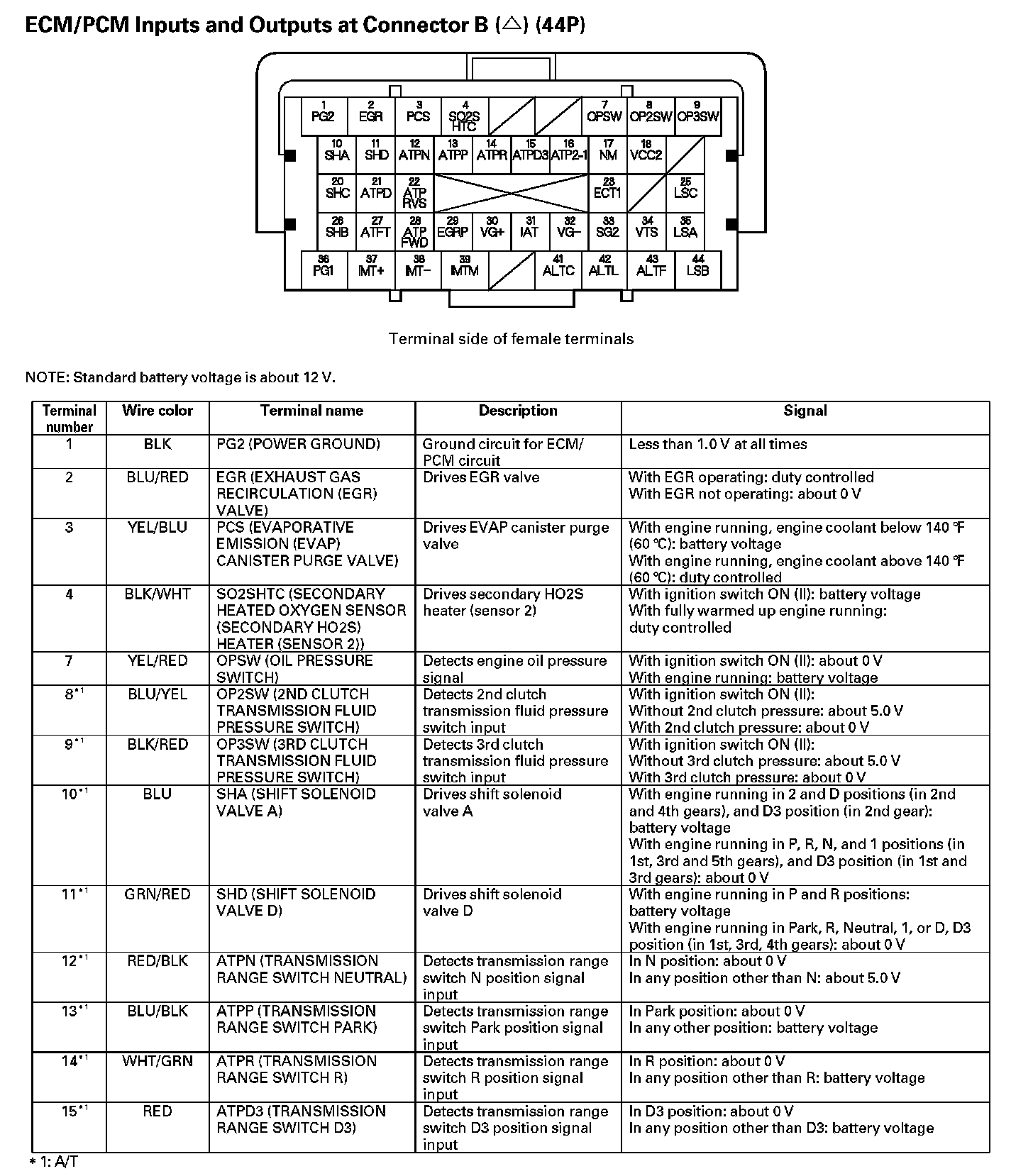

ECM/PCM Inputs And Outputs At Connector B (44P) Part 1:

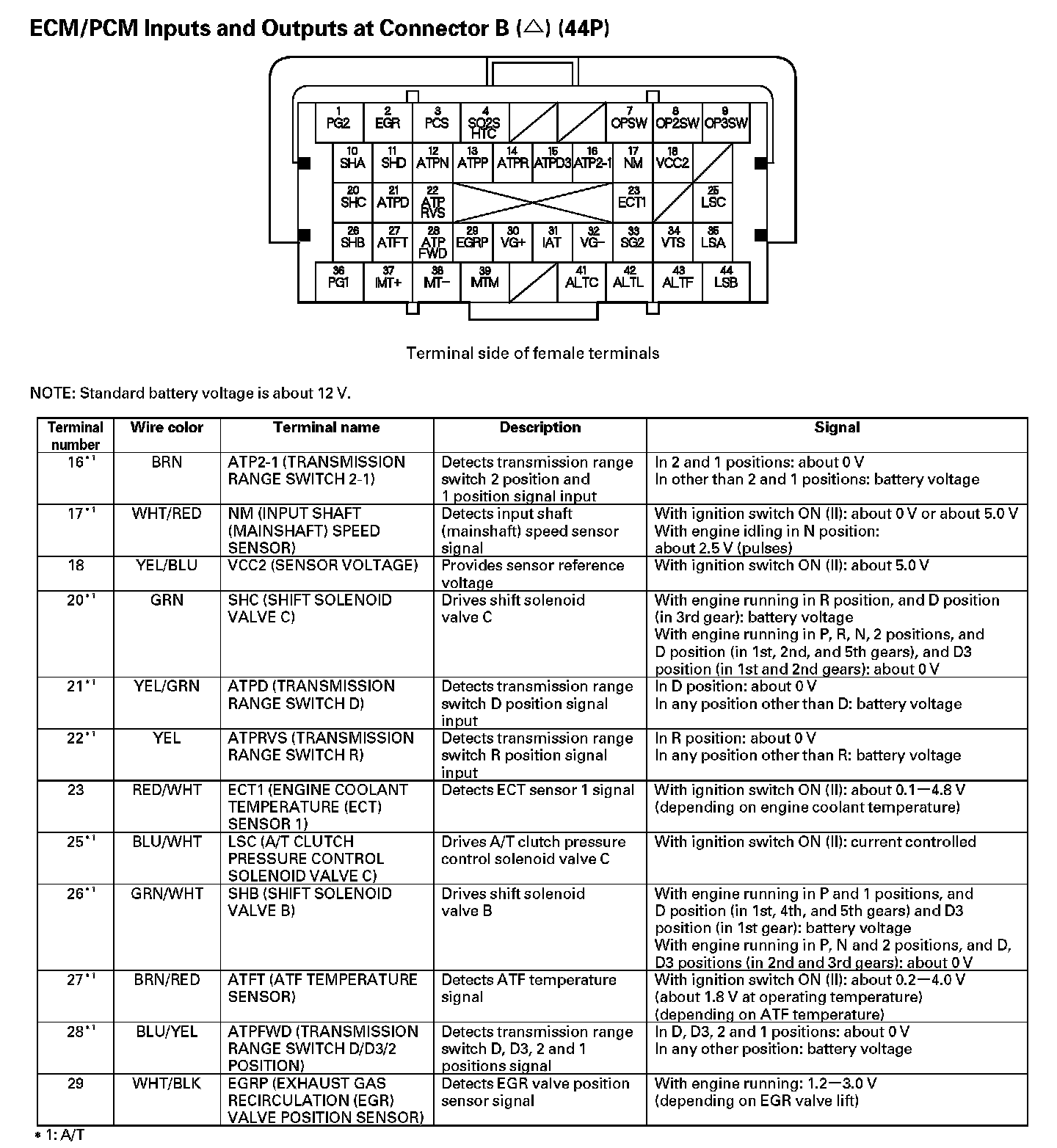

ECM/PCM Inputs And Outputs At Connector B (44P) Part 2:

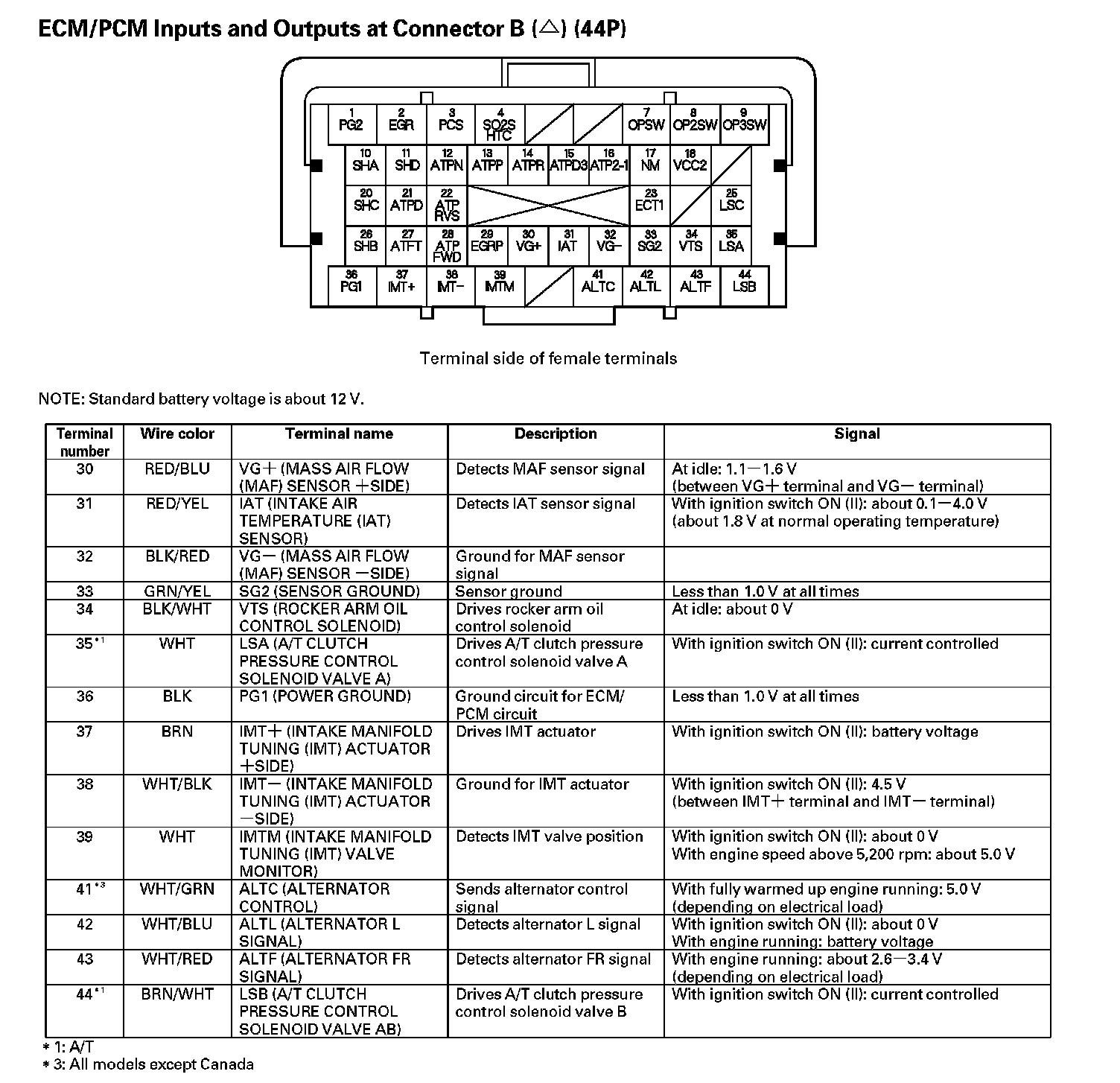

ECM/PCM Inputs And Outputs At Connector B (44P) Part 3:

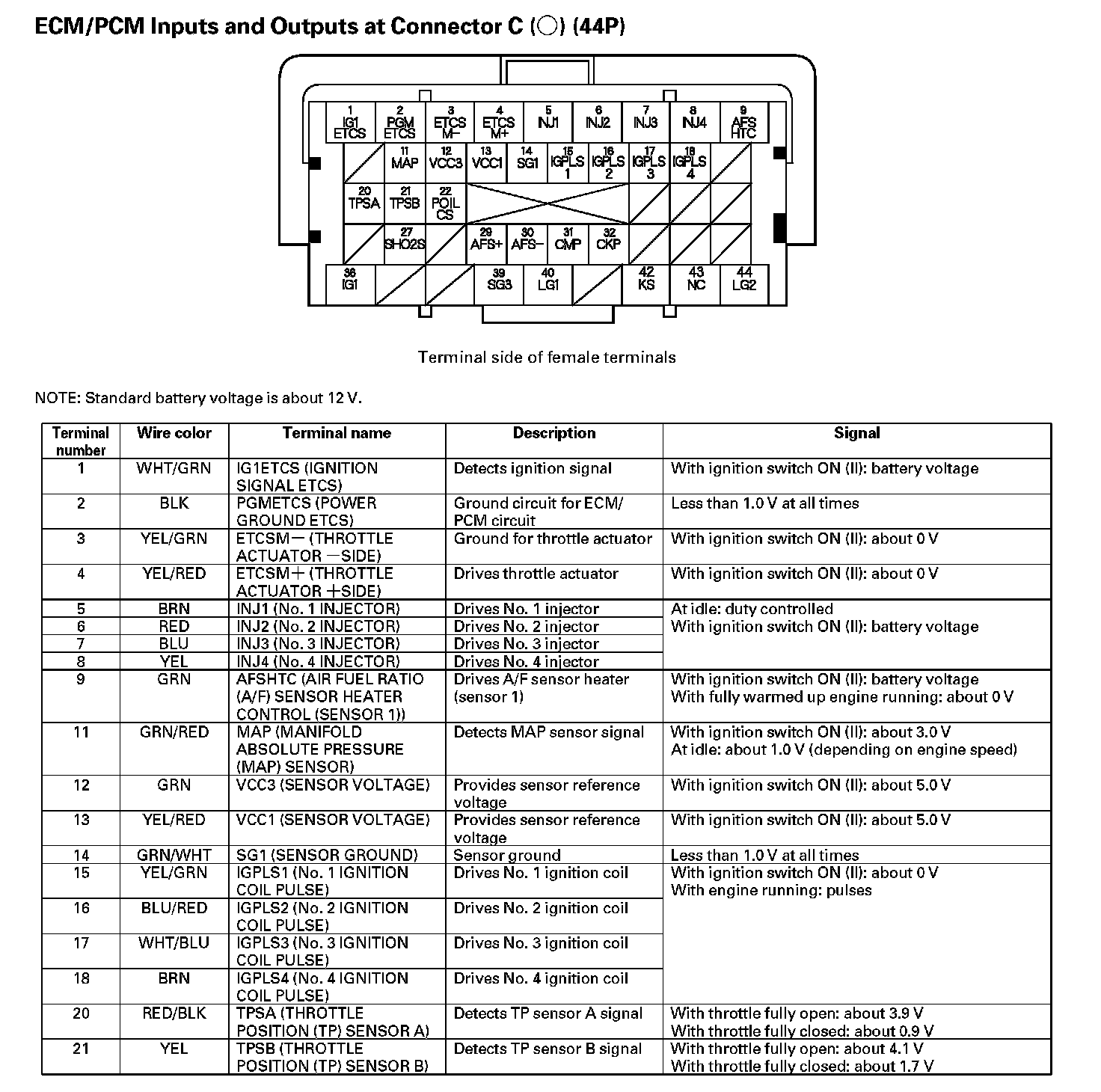

ECM/PCM Inputs And Outputs At Connector C (44P) Part 1:

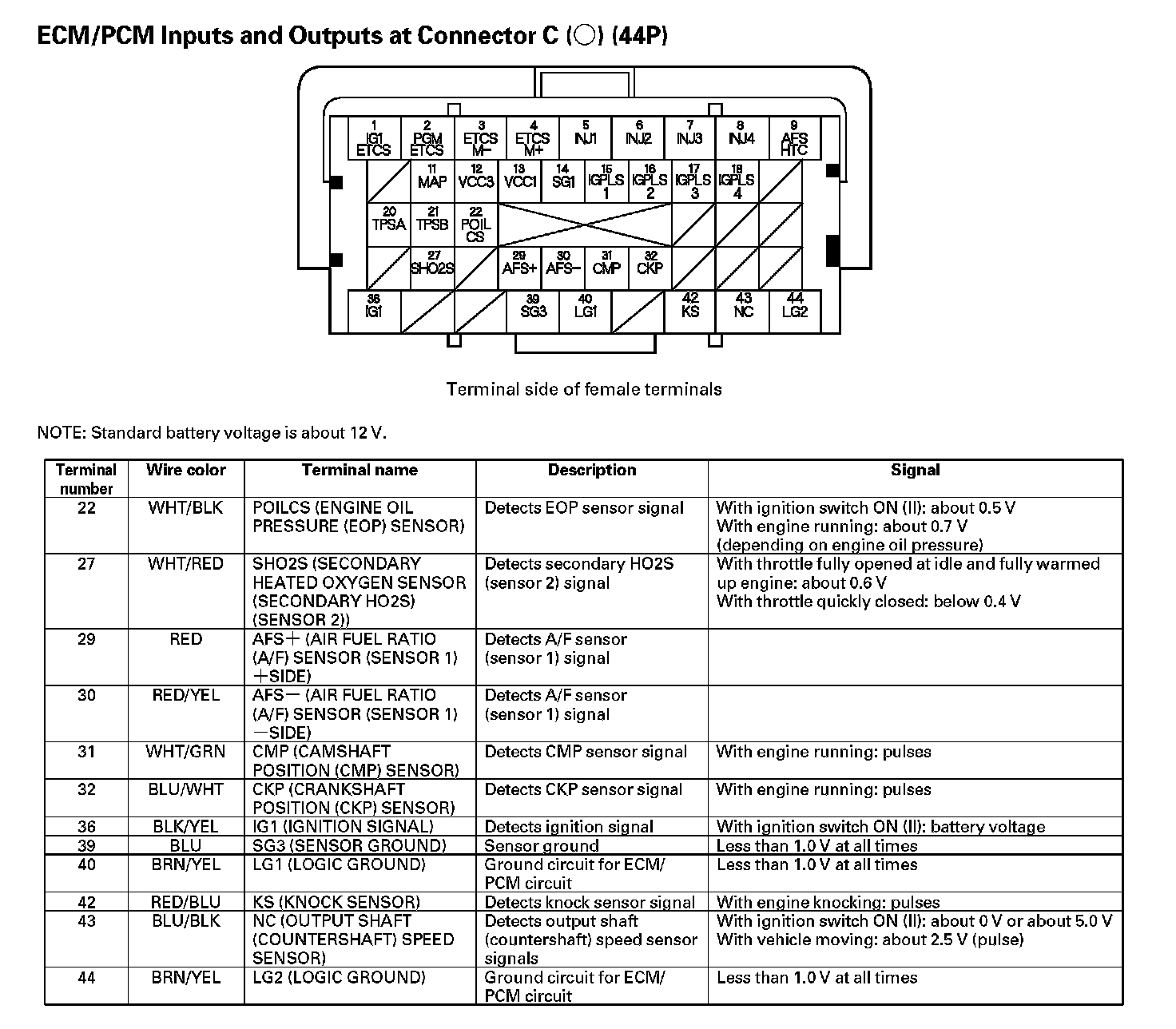

ECM/PCM Inputs And Outputs At Connector C (44P) Part 2:

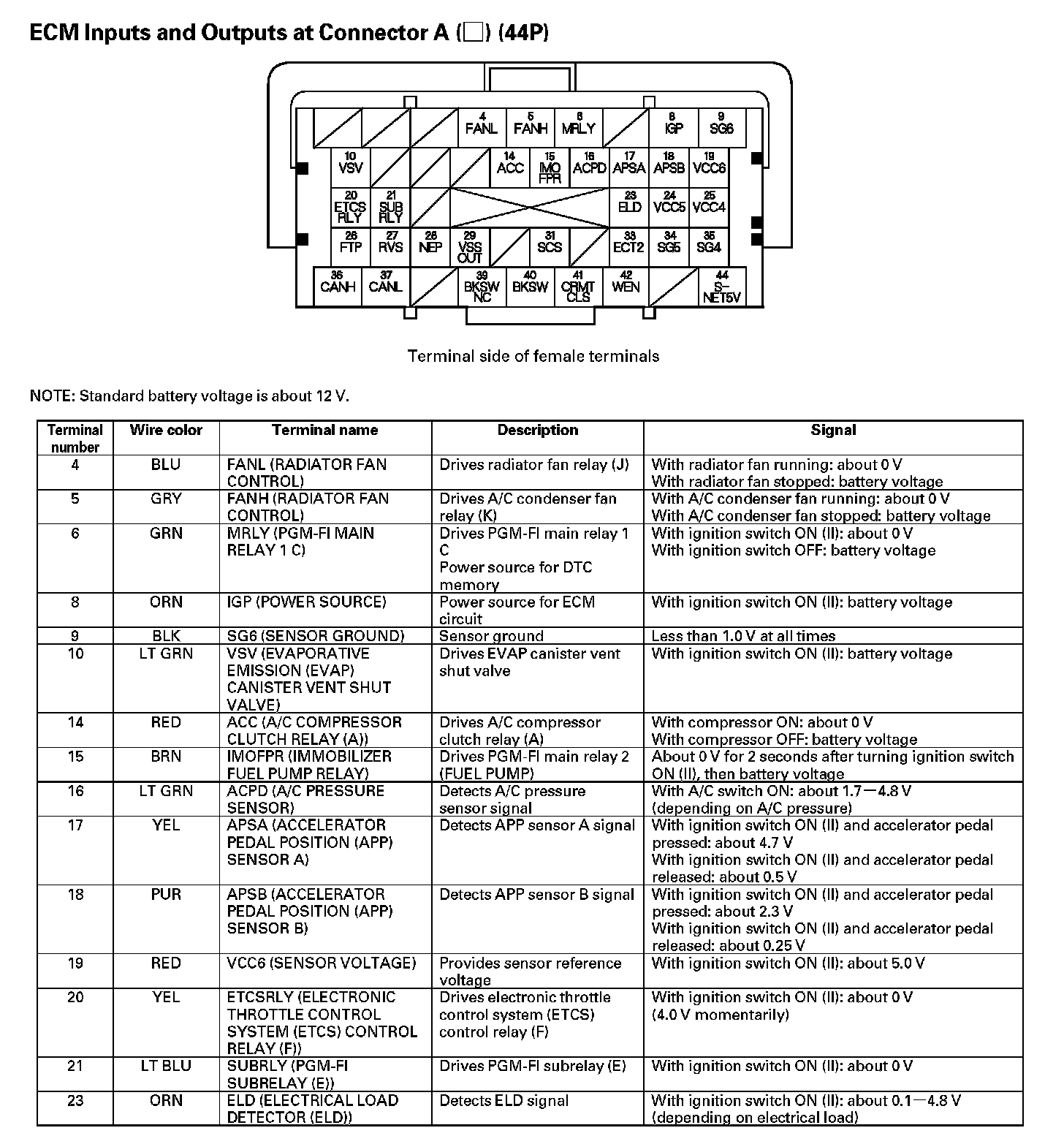

ECM Inputs And Outputs At Connector A (44P) Part 1:

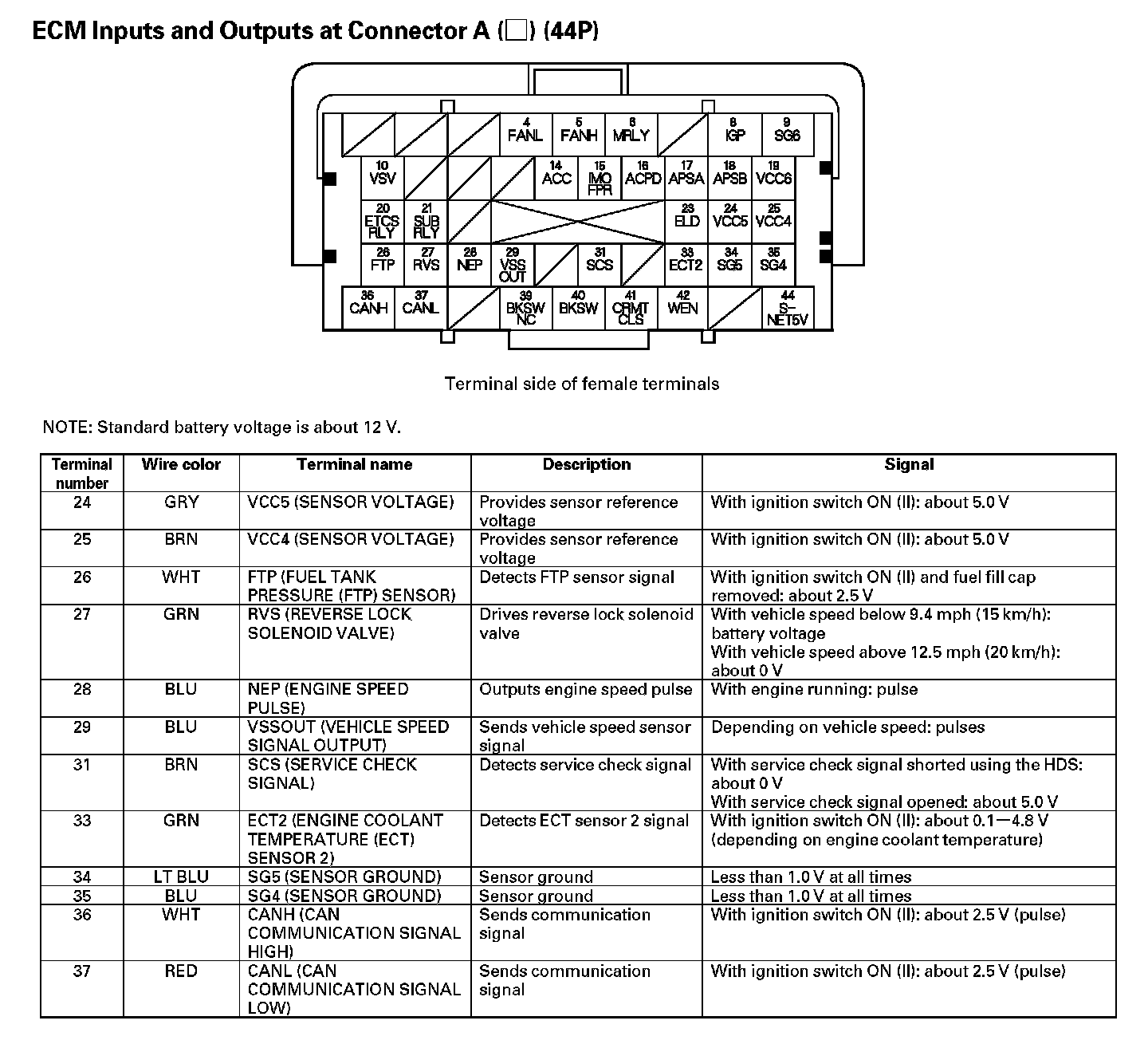

ECM Inputs And Outputs At Connector A (44P) - Part 2:

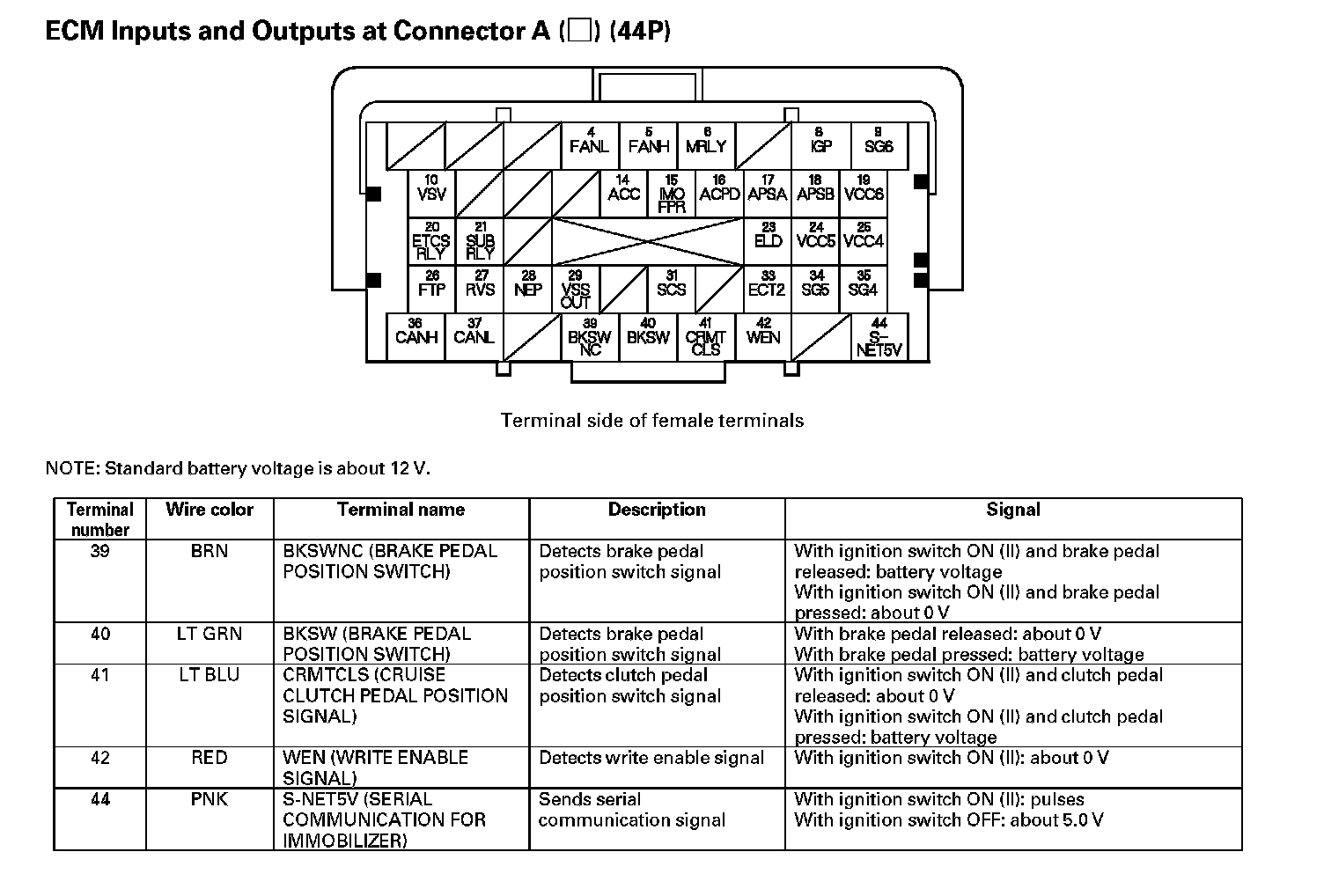

ECM Inputs And Outputs At Connector A (44P) - Part 3:

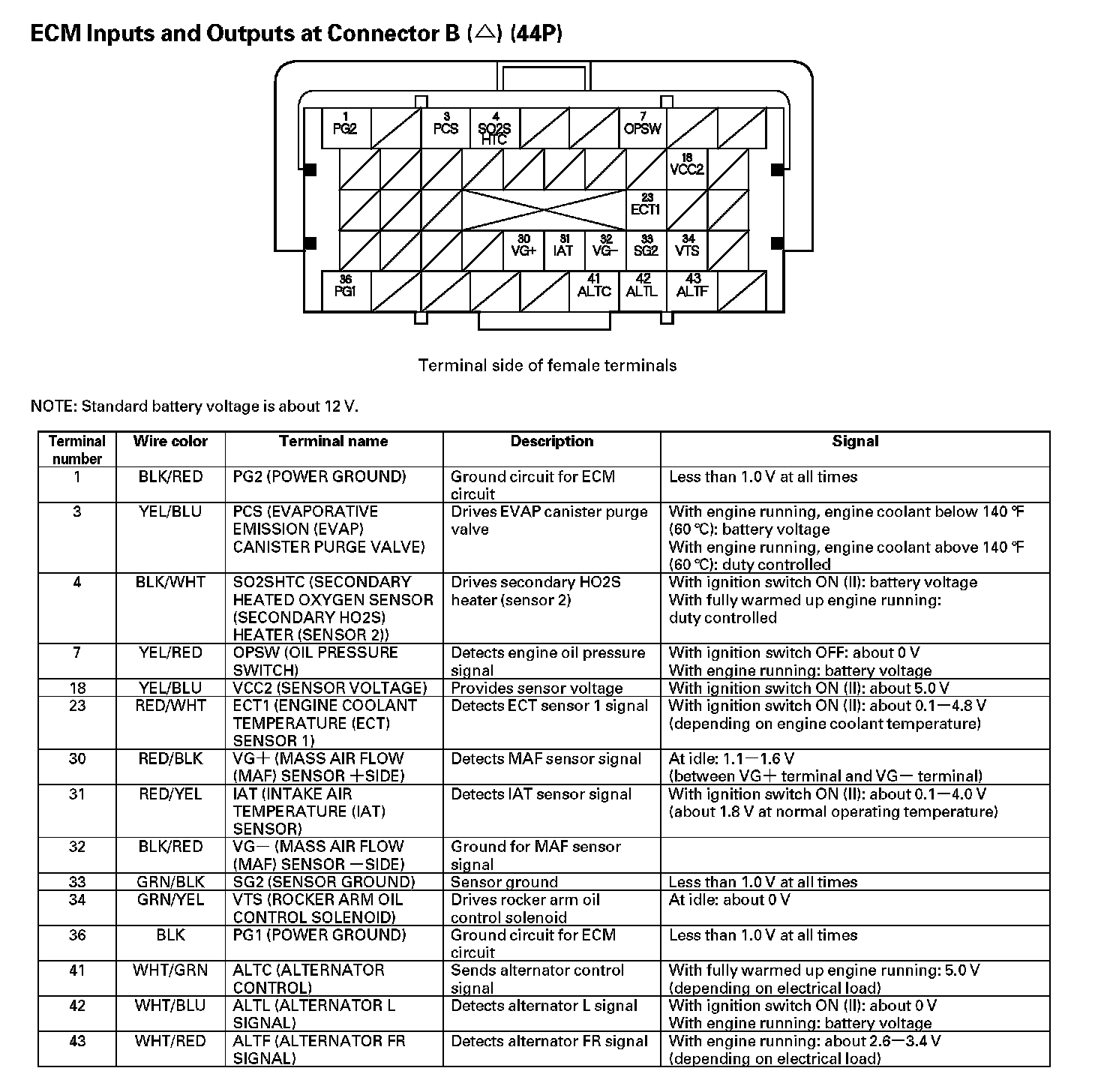

ECM Inputs And Outputs At Connector B (44P):

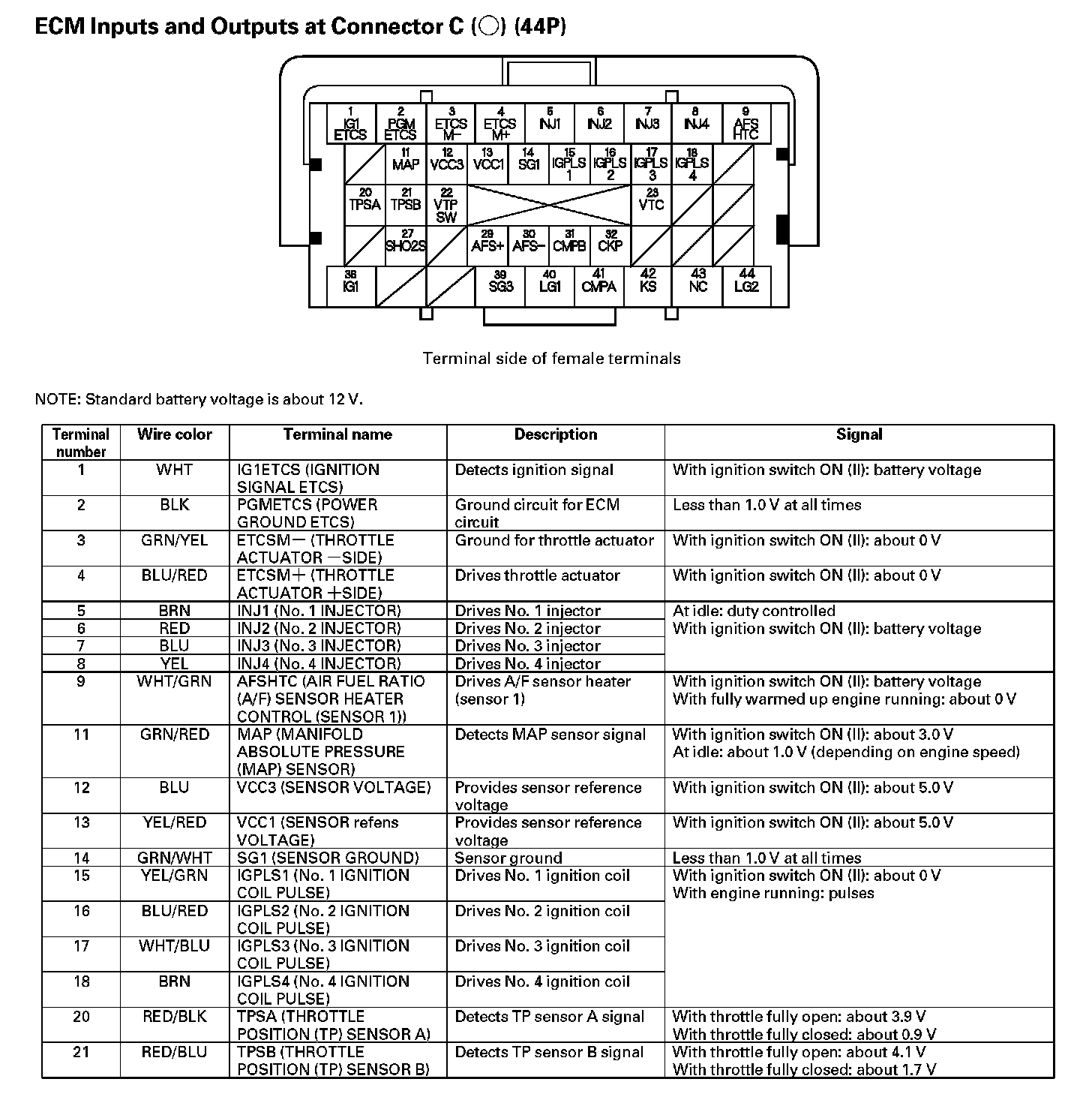

ECM Inputs And Outputs At Connector C (44P) - Part 1:

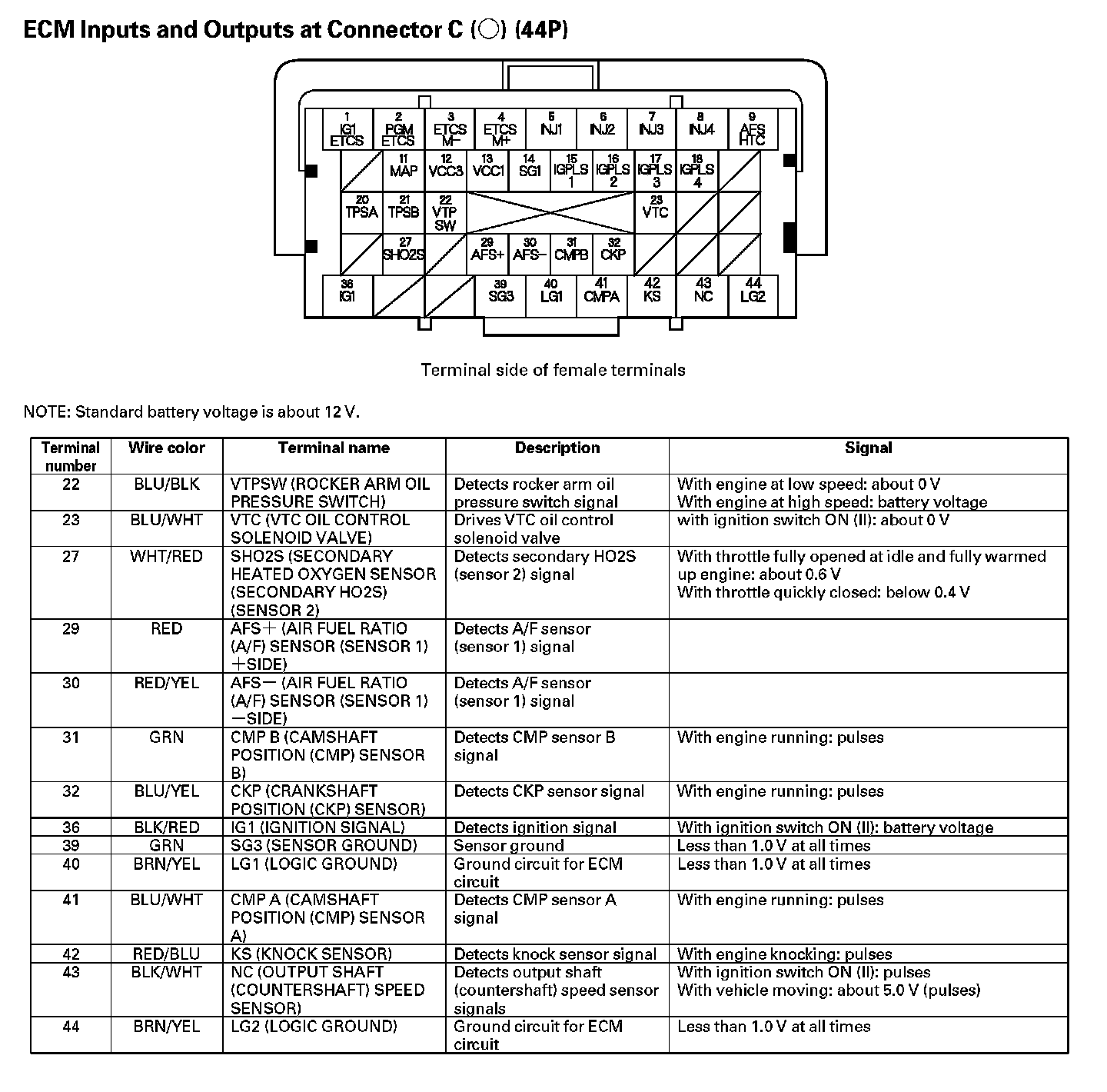

ECM Inputs And Outputs At Connector C (44P) - Part 2:

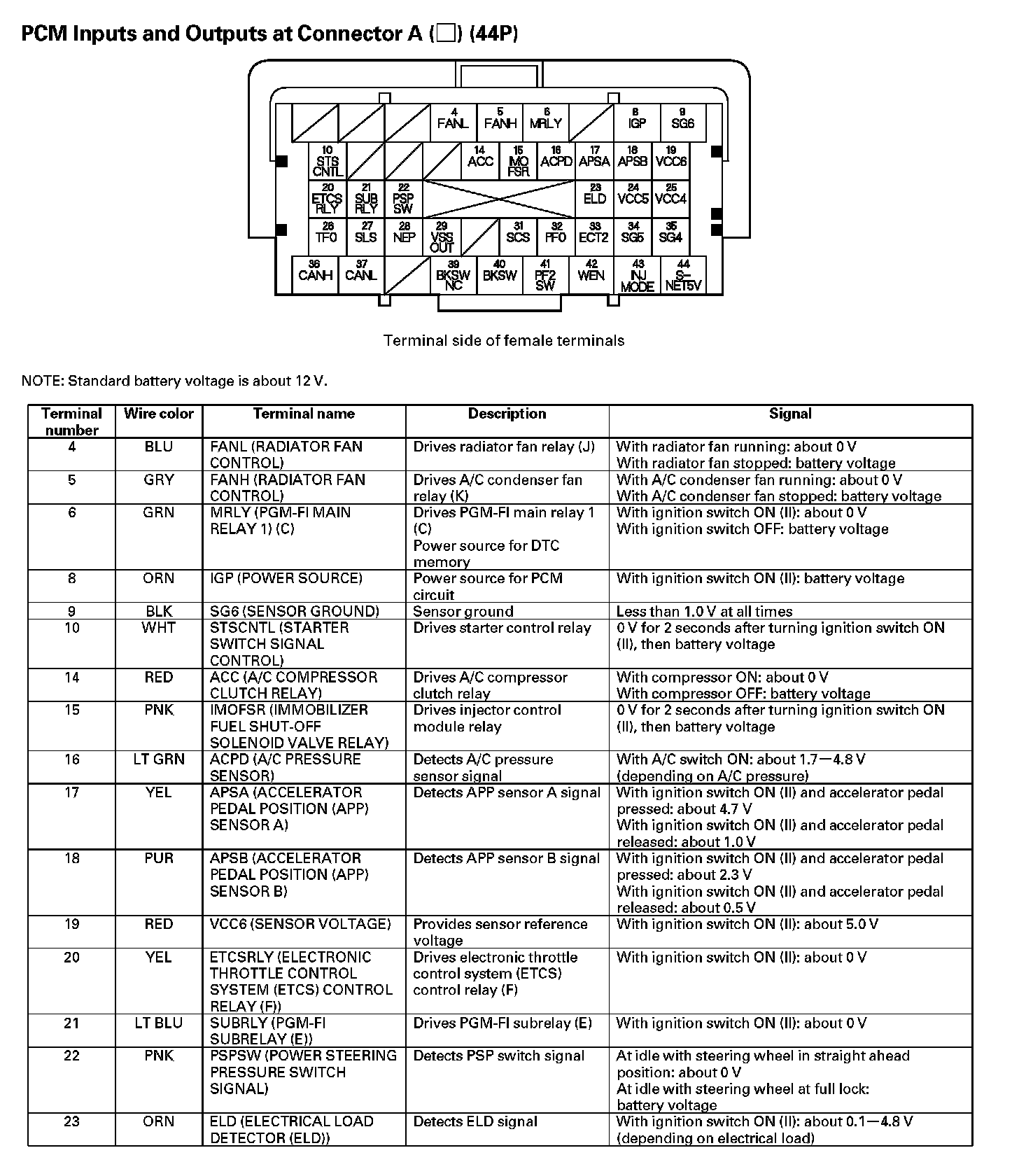

PCM Inputs And Outputs At Connector A (44P) - Part 1:

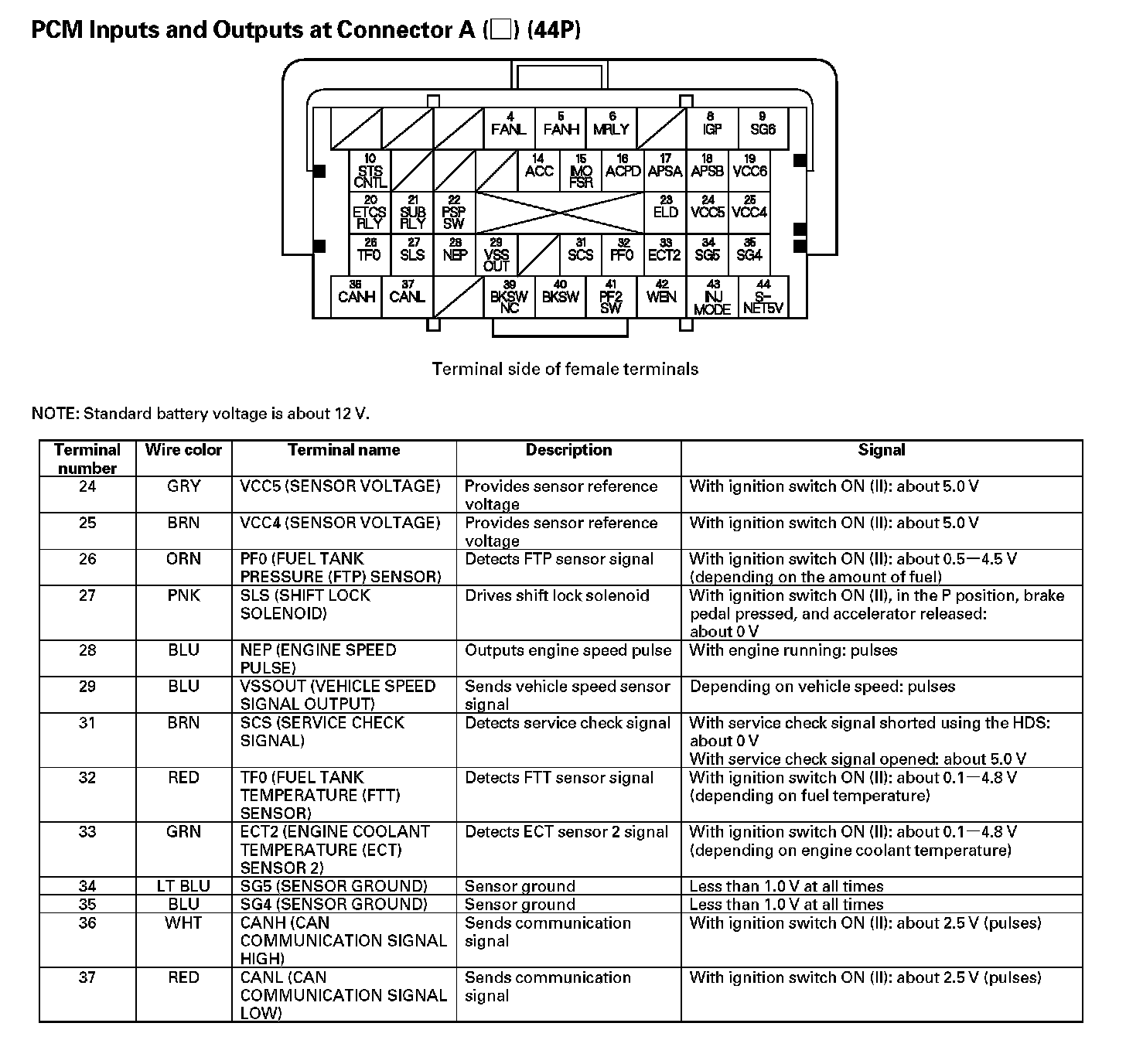

PCM Inputs And Outputs At Connector A (44P) - Part 2:

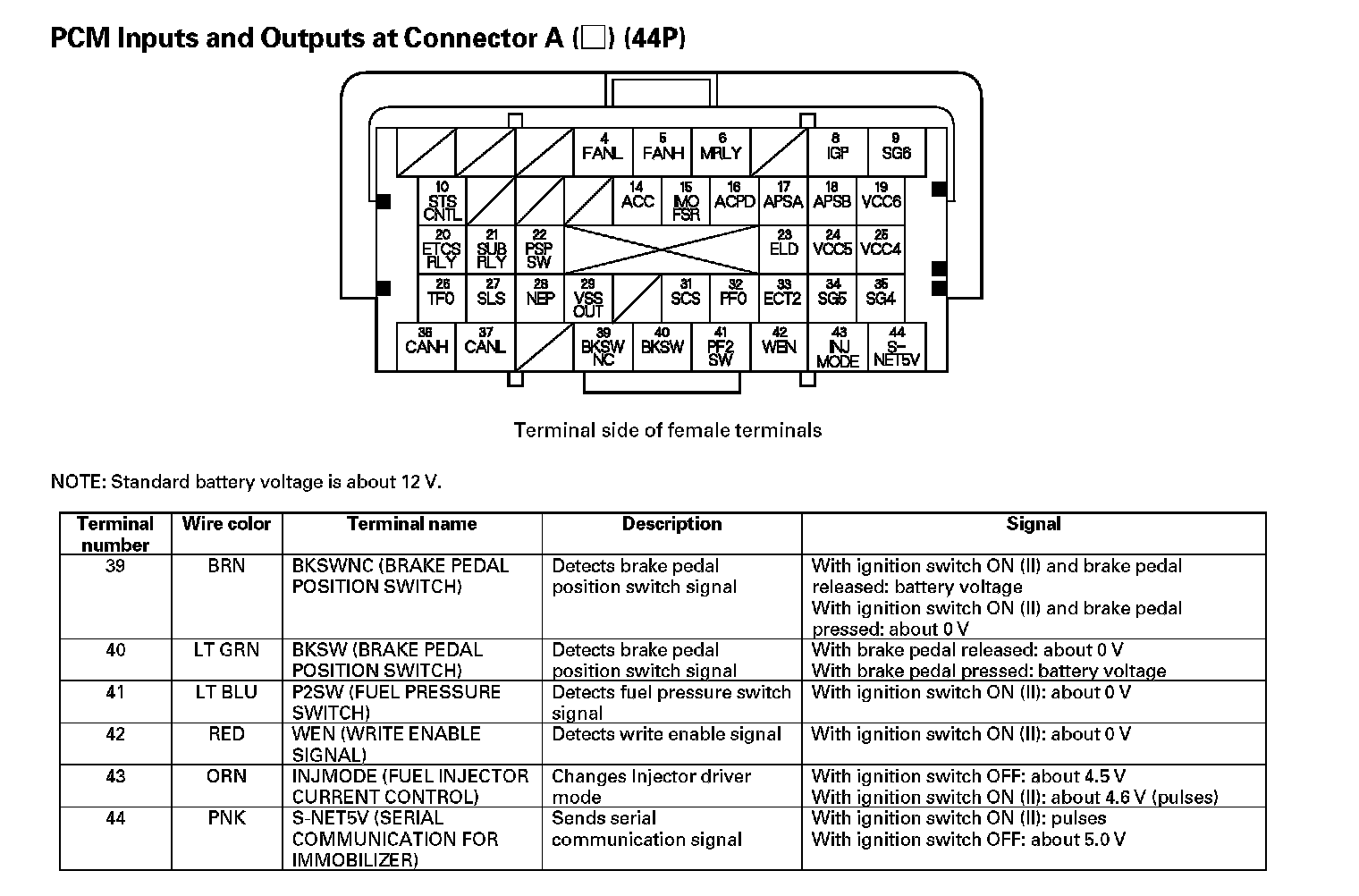

PCM Inputs And Outputs At Connector A (44P) - Part 3:

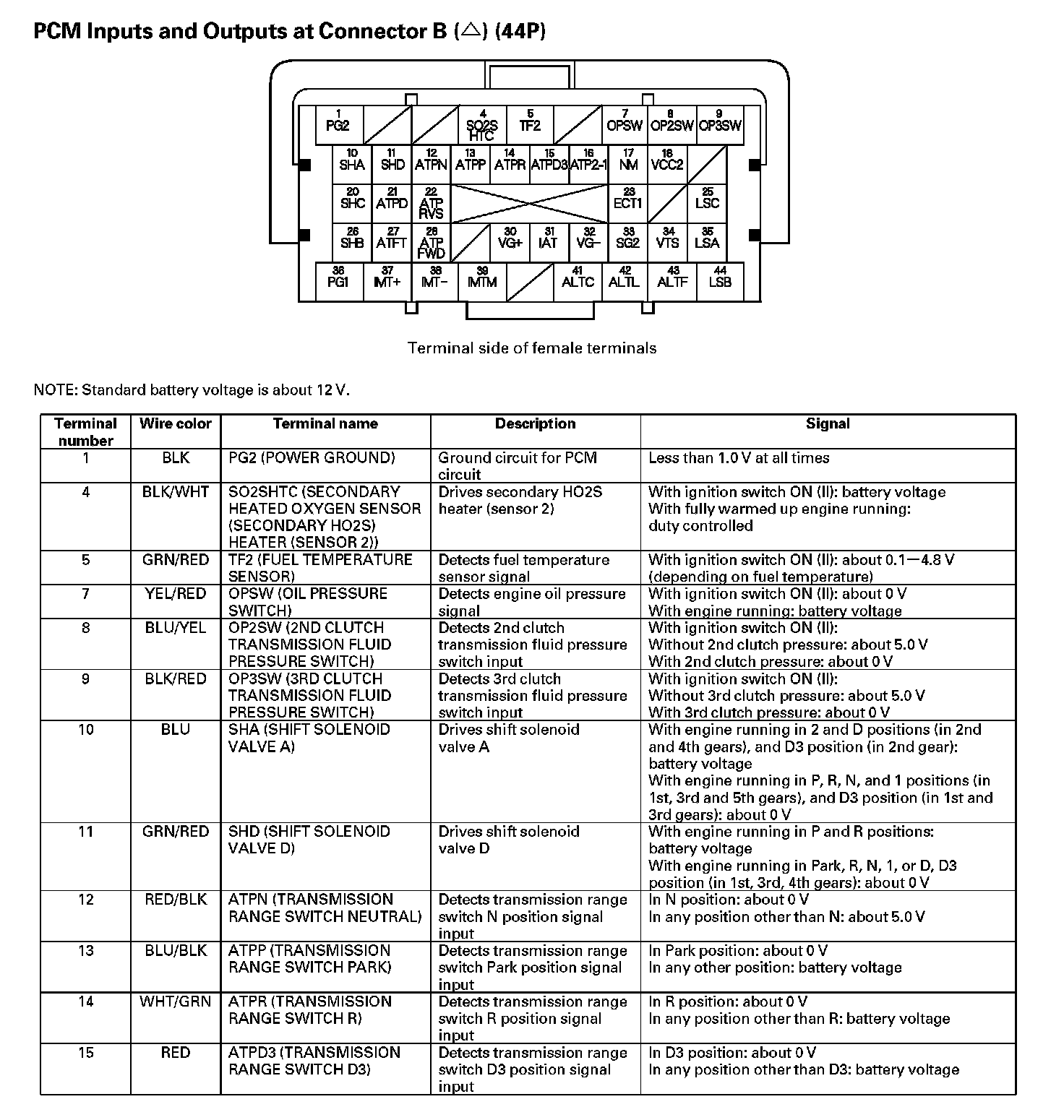

PCM Inputs And Outputs At Connector B (44P) - Part 1:

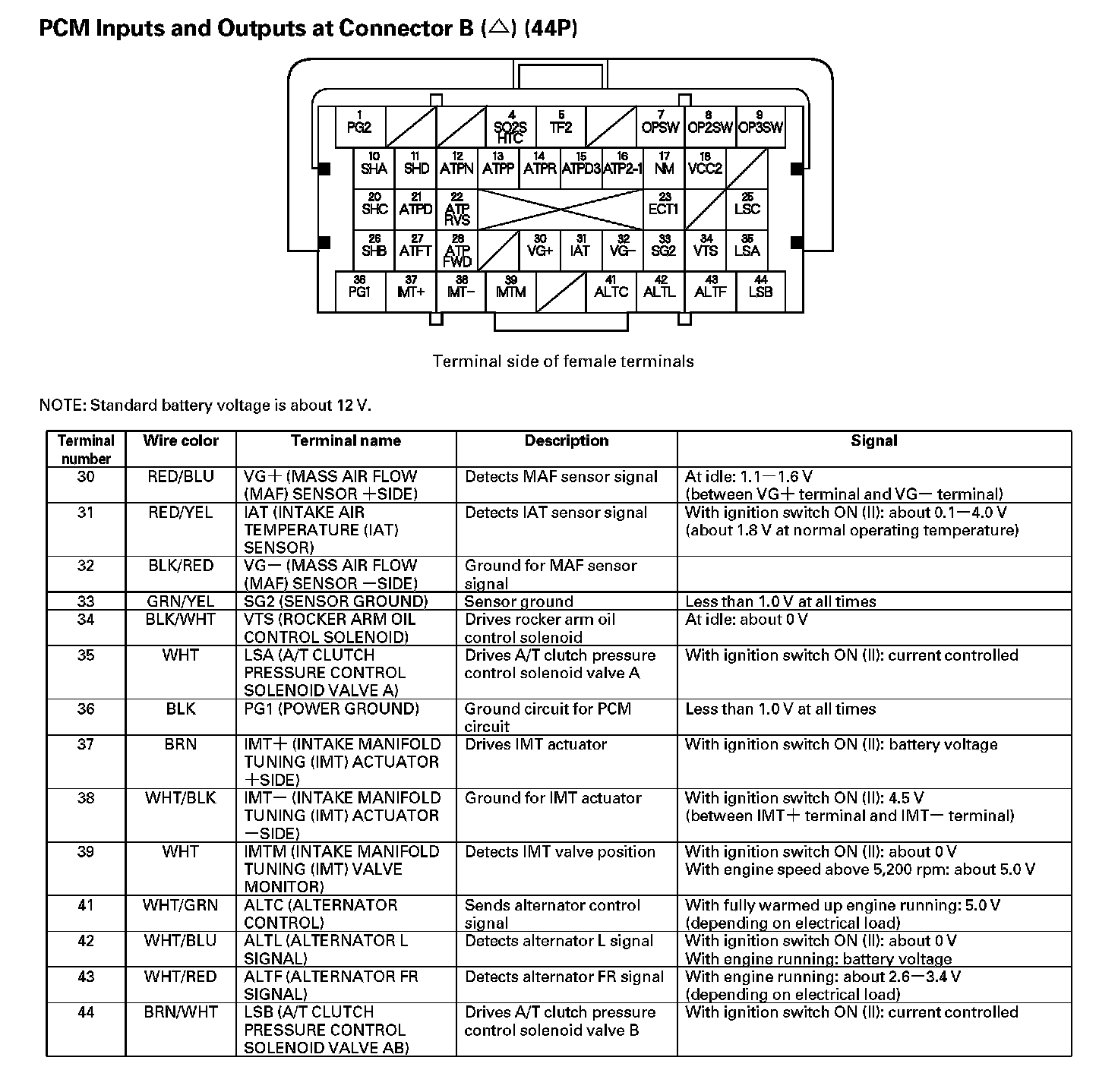

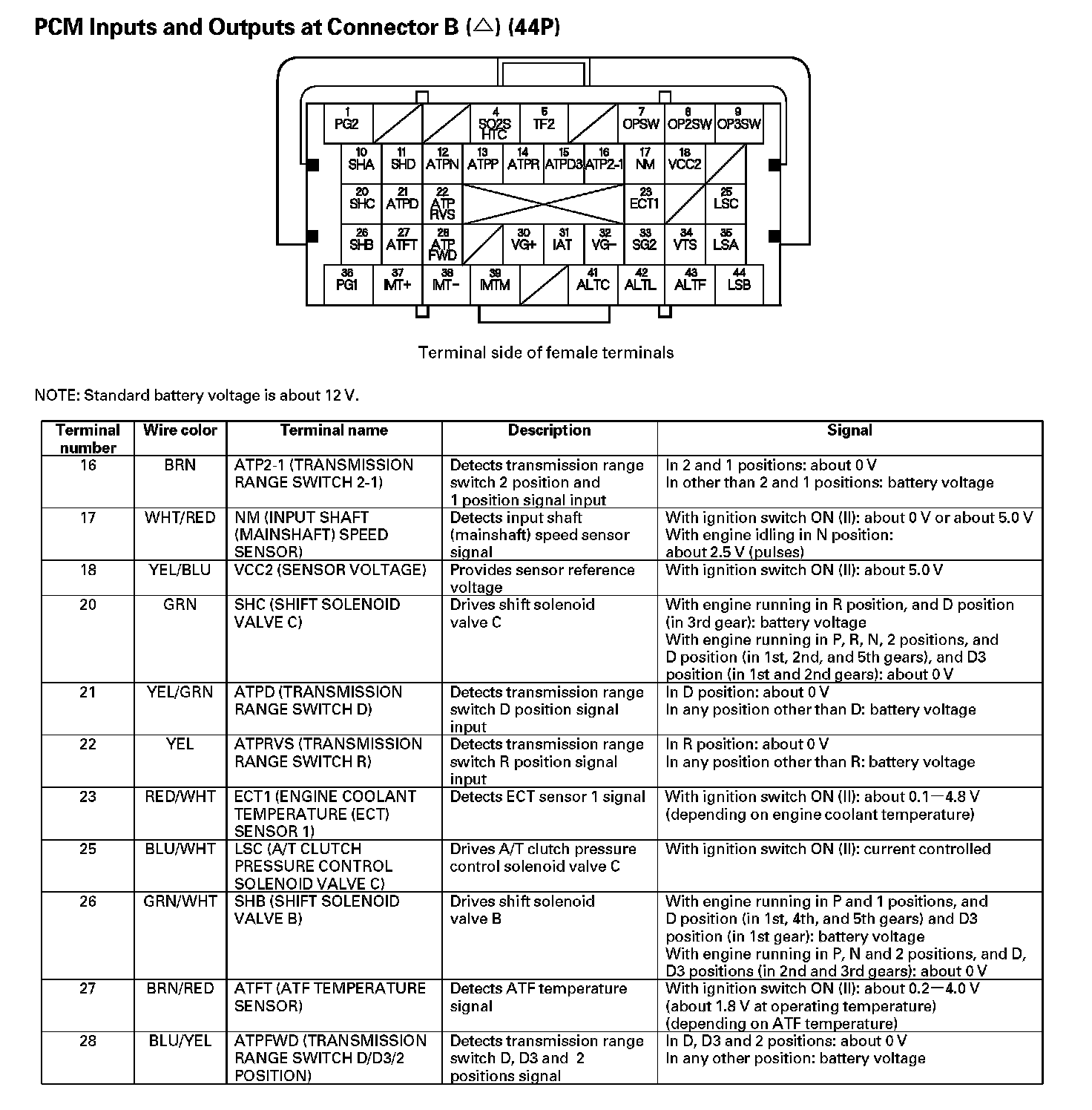

PCM Inputs And Outputs At Connector B (44P) - Part 2:
PCM Inputs And Outputs At Connector B (44P) - Part 3:

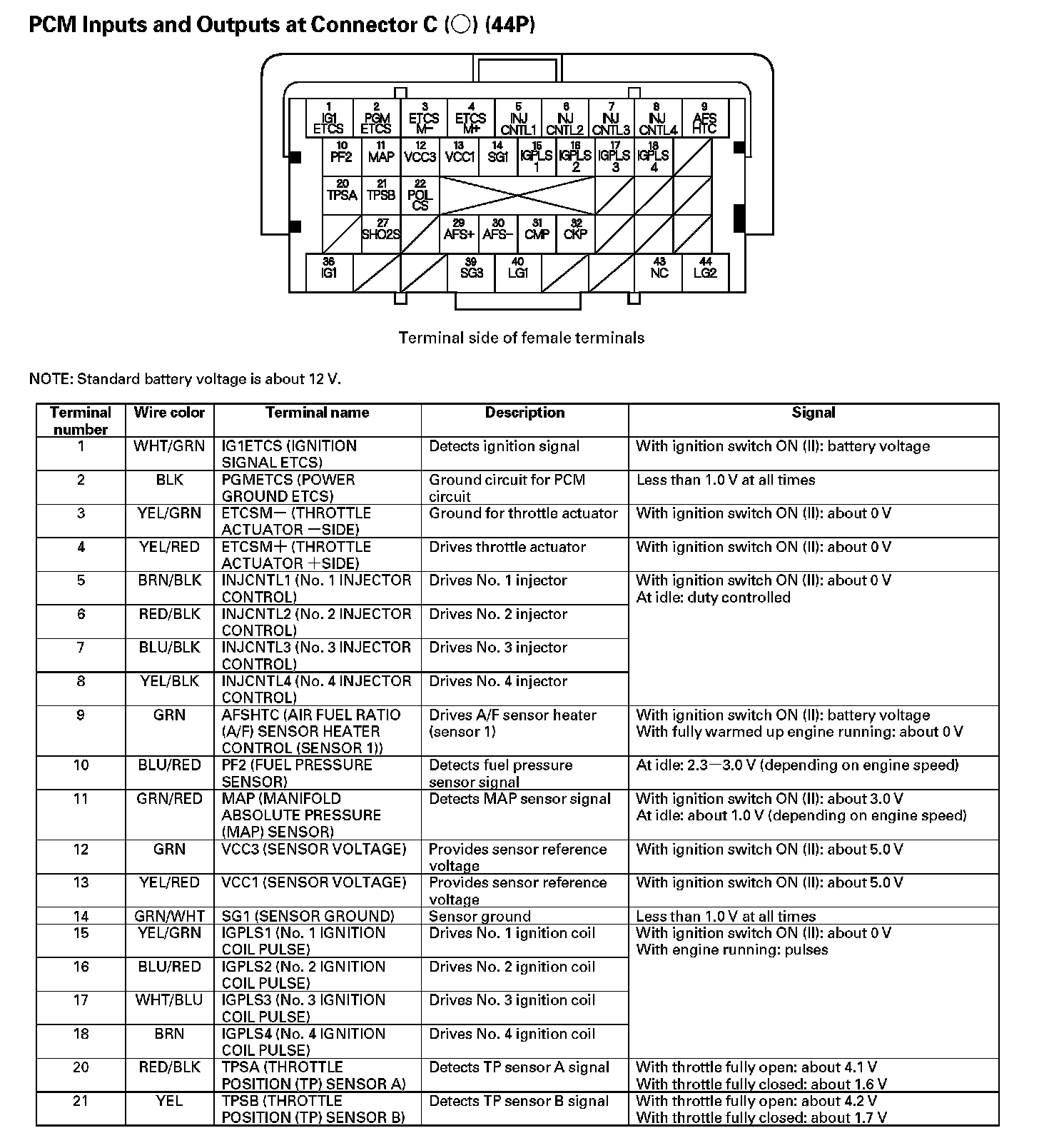

PCM Inputs And Outputs At Connector C (44P) - Part 1:

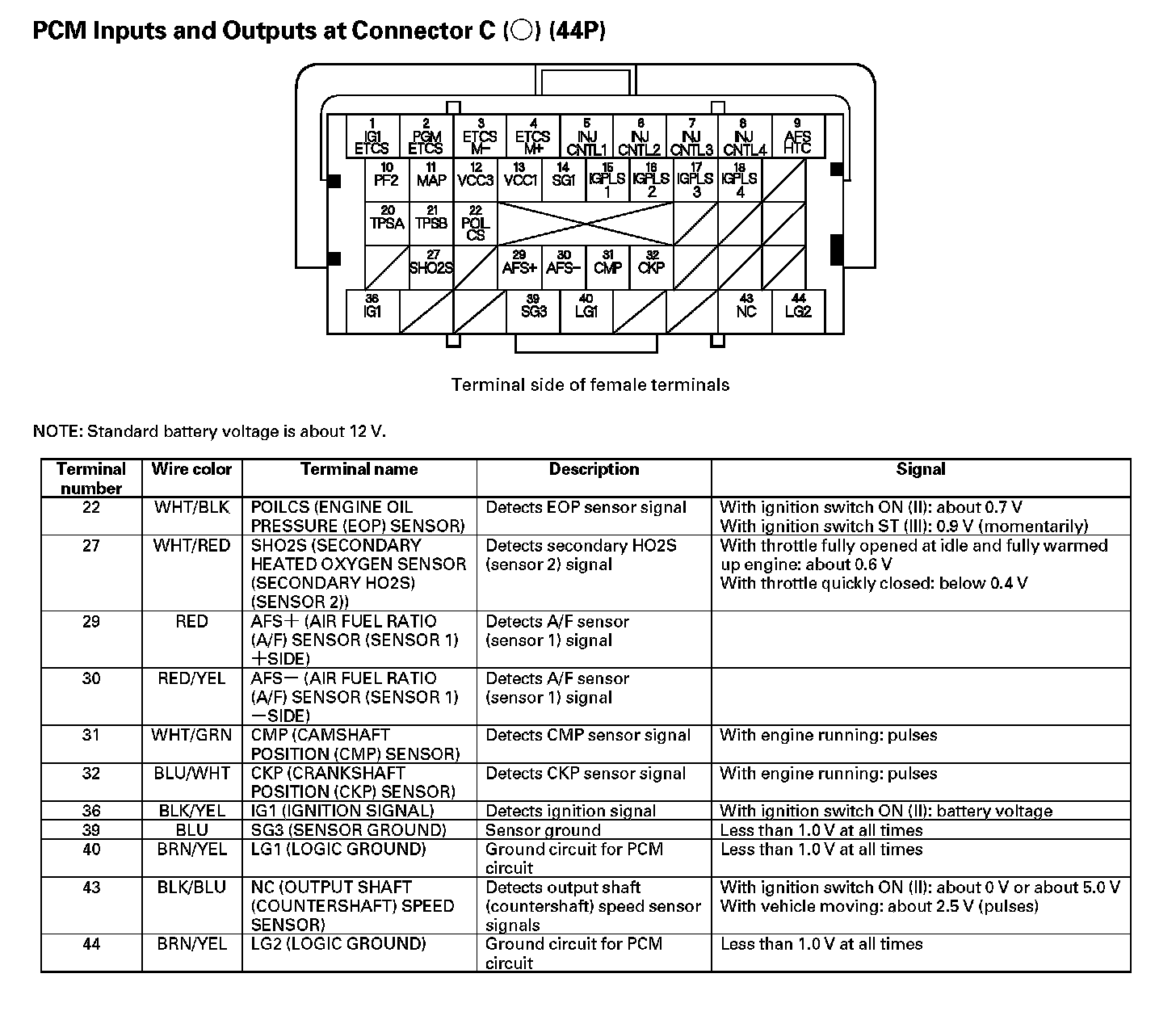

PCM Inputs And Outputs At Connector C (44p) - Part 2:
