Fuel Injector Driver Module (CNG): Locations

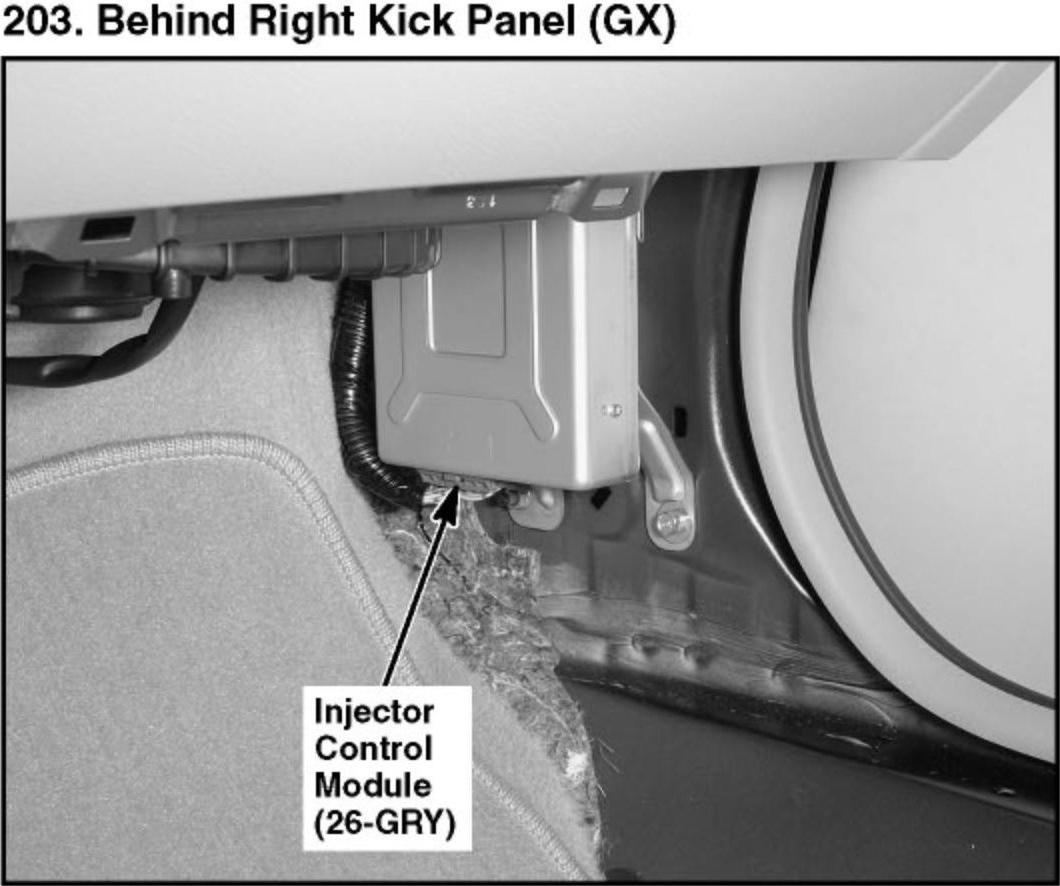

203. Behind Right Kick Panel (GX):

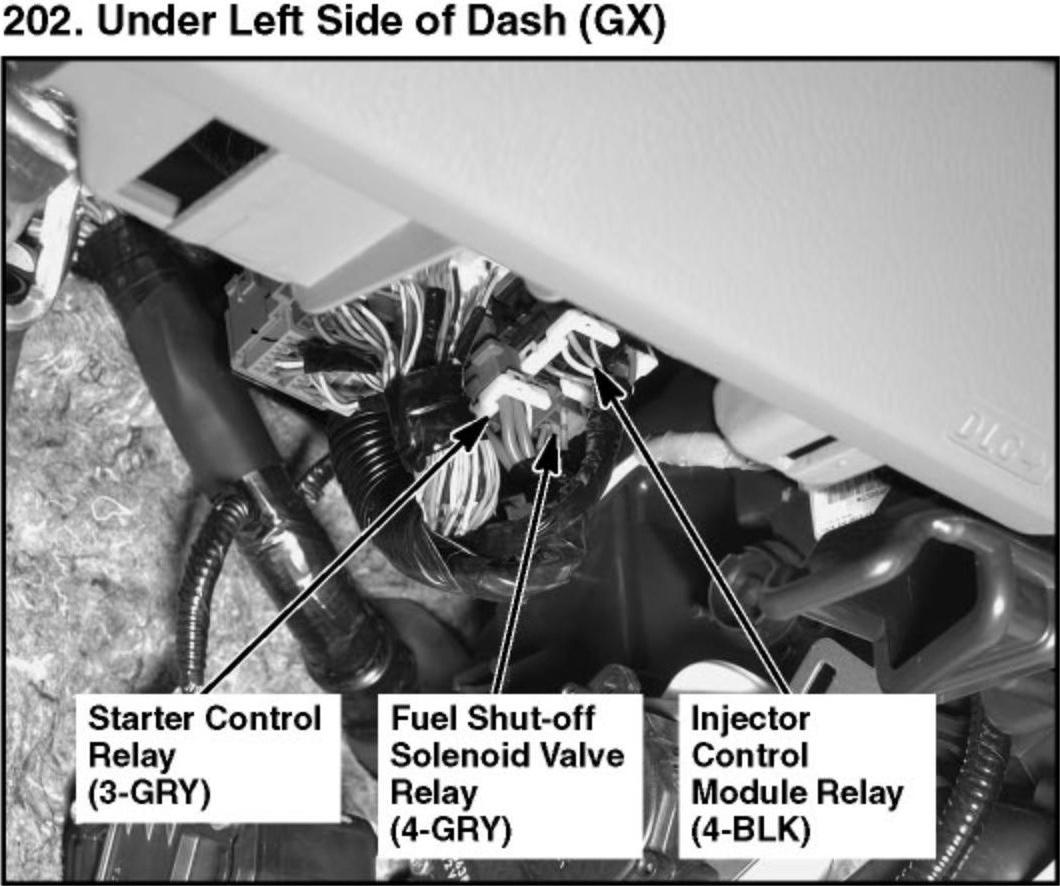

202. Under Left Side of Dash (GX):

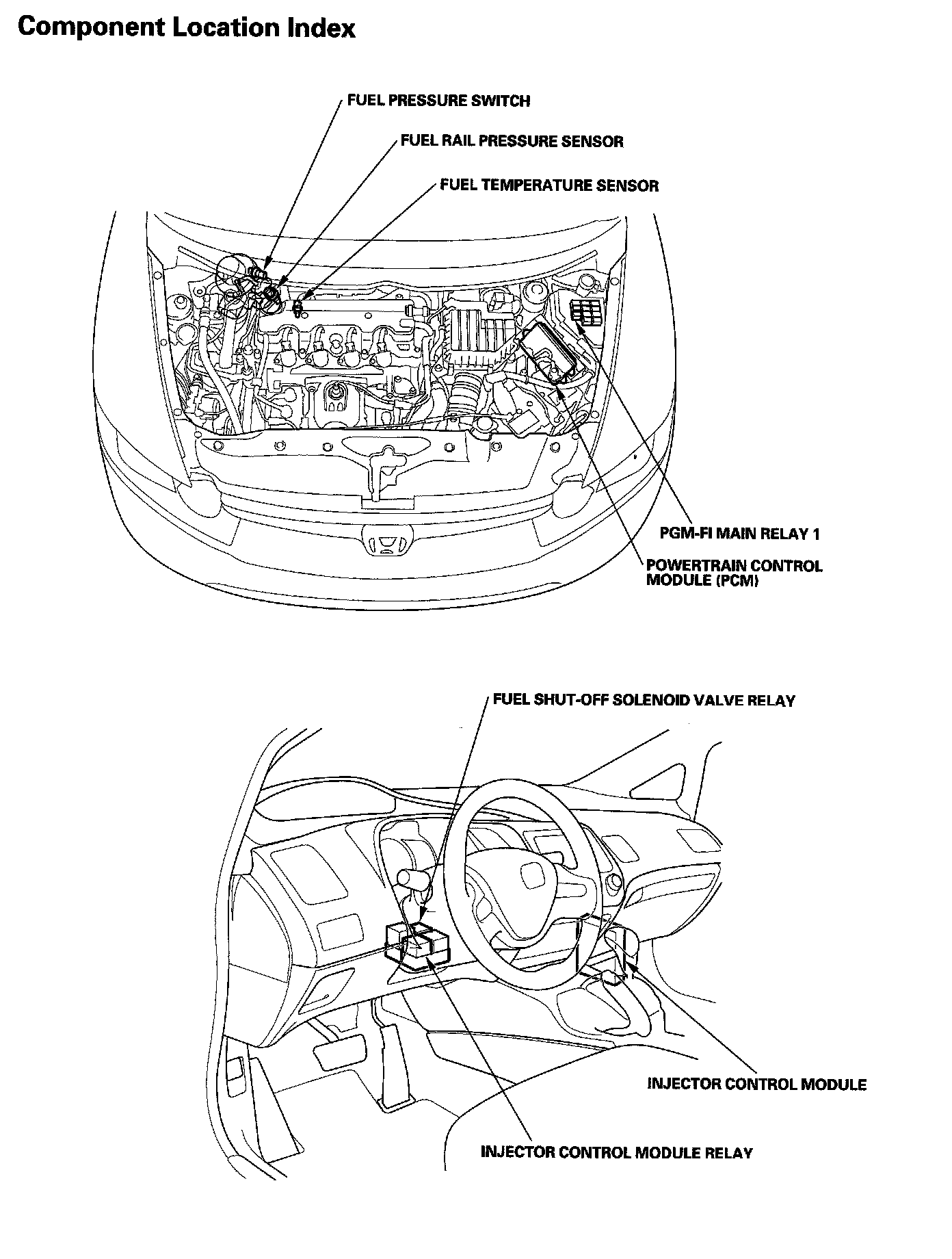

PGM-FI System - Component Location Index:

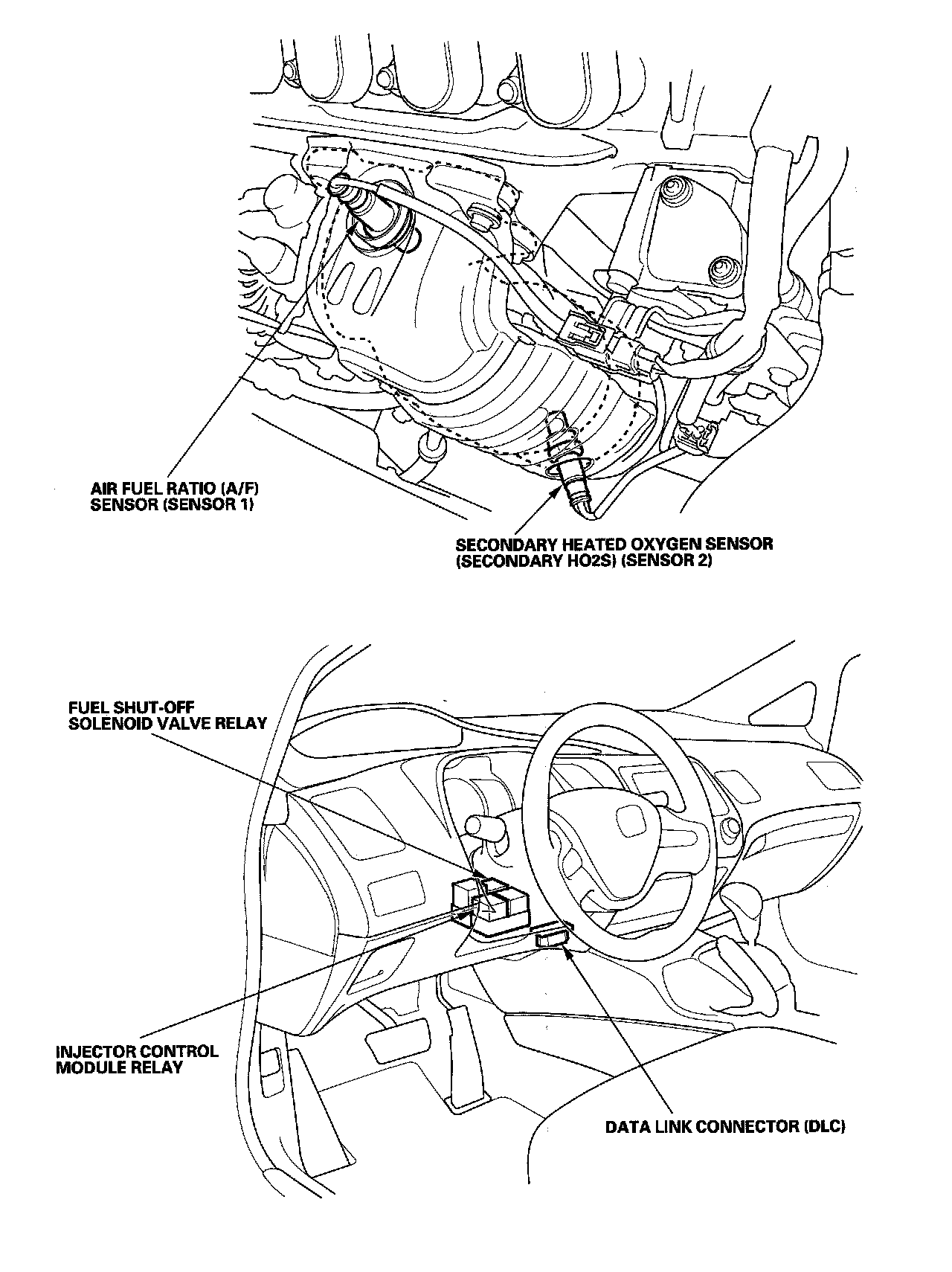

Fuel Supply System Component Location Index:
