System Specifications

Crankshaft Pulley
Tighten the bolt 69 N-m (7.0 kgf-m, 51 lbf-ft)
Tighten the pulley bolt an additional 90°.

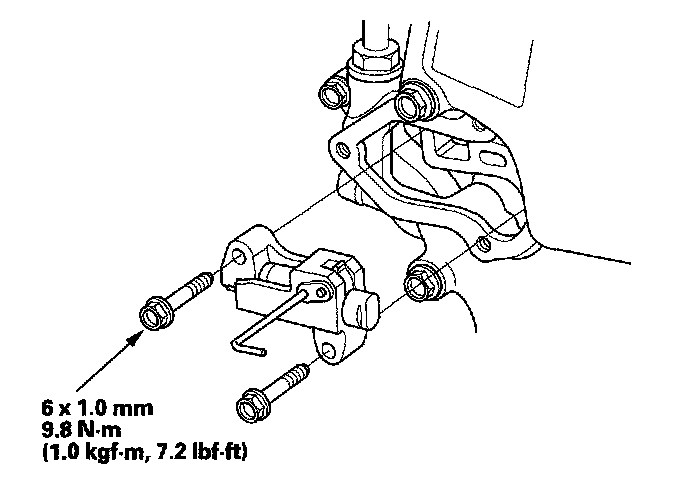

Auto-tensioner

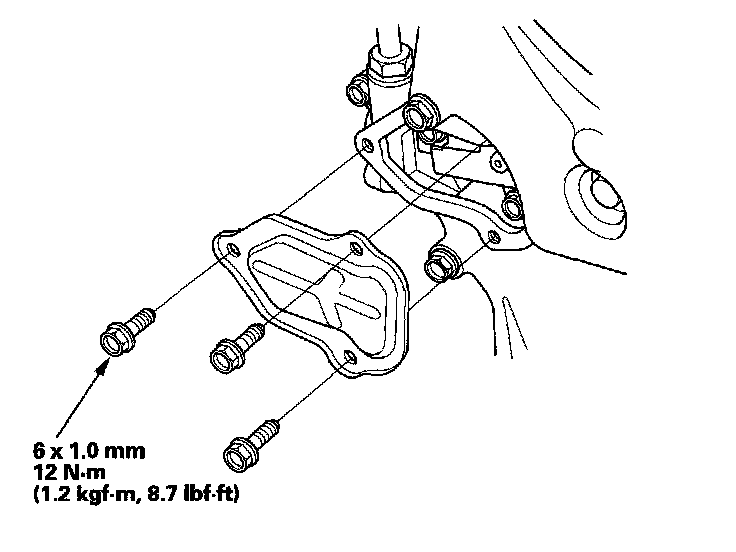

Chain case cover
