Navigation Module: Locations

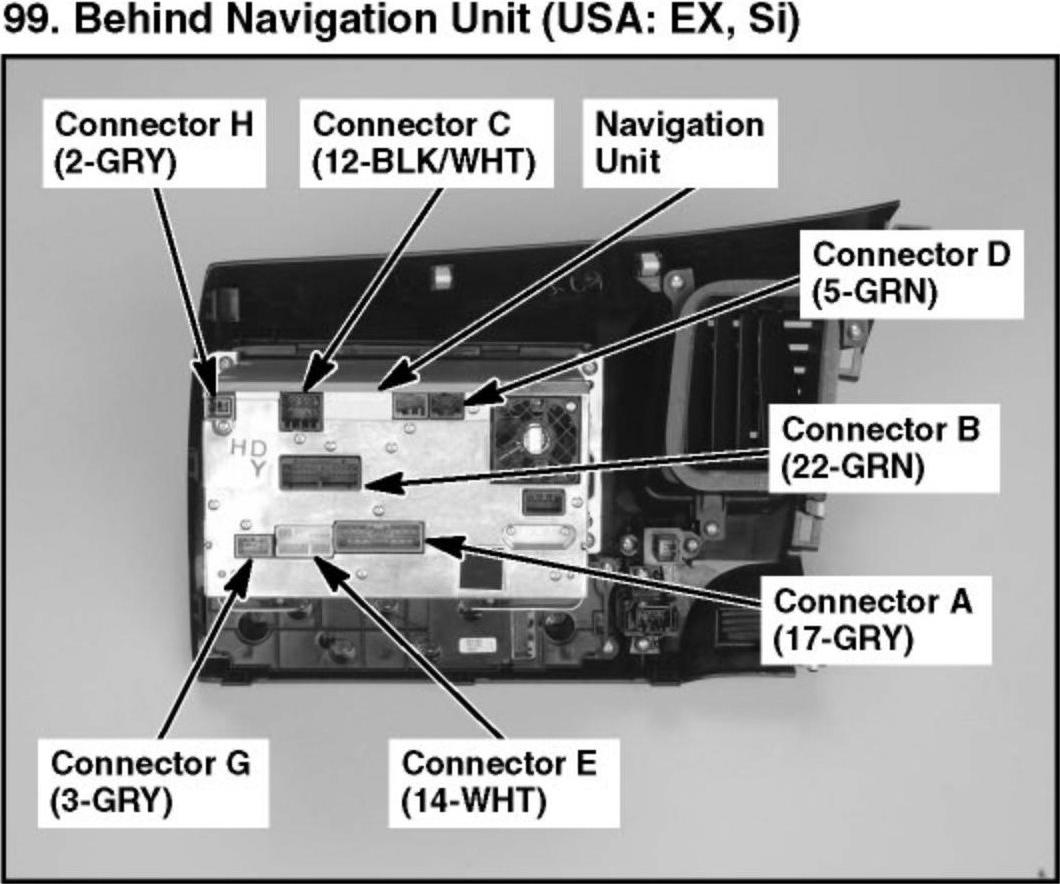

99. Behind Navigation Unit (USA: EX, Si):

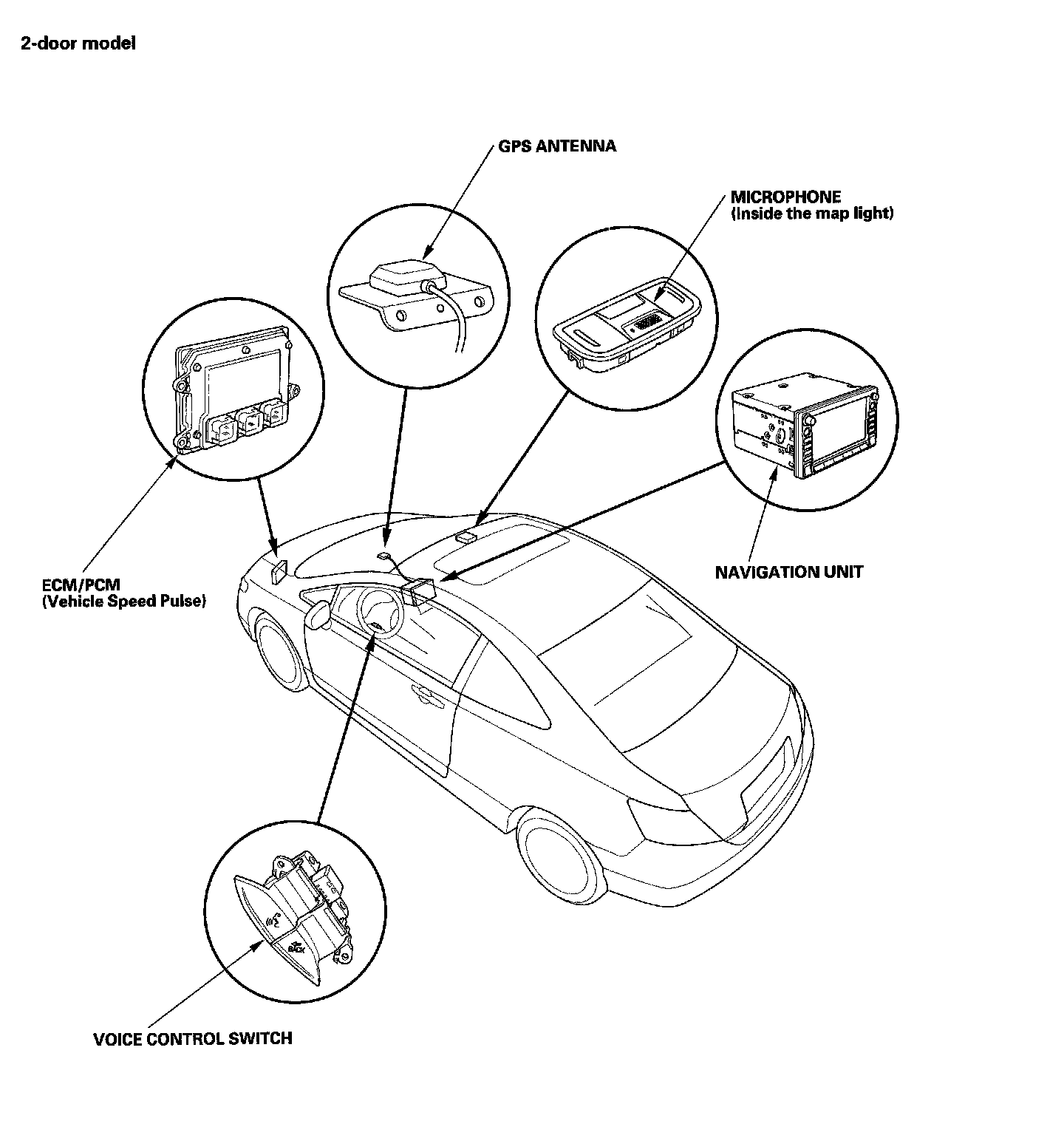

Navigation System Component Location Index:

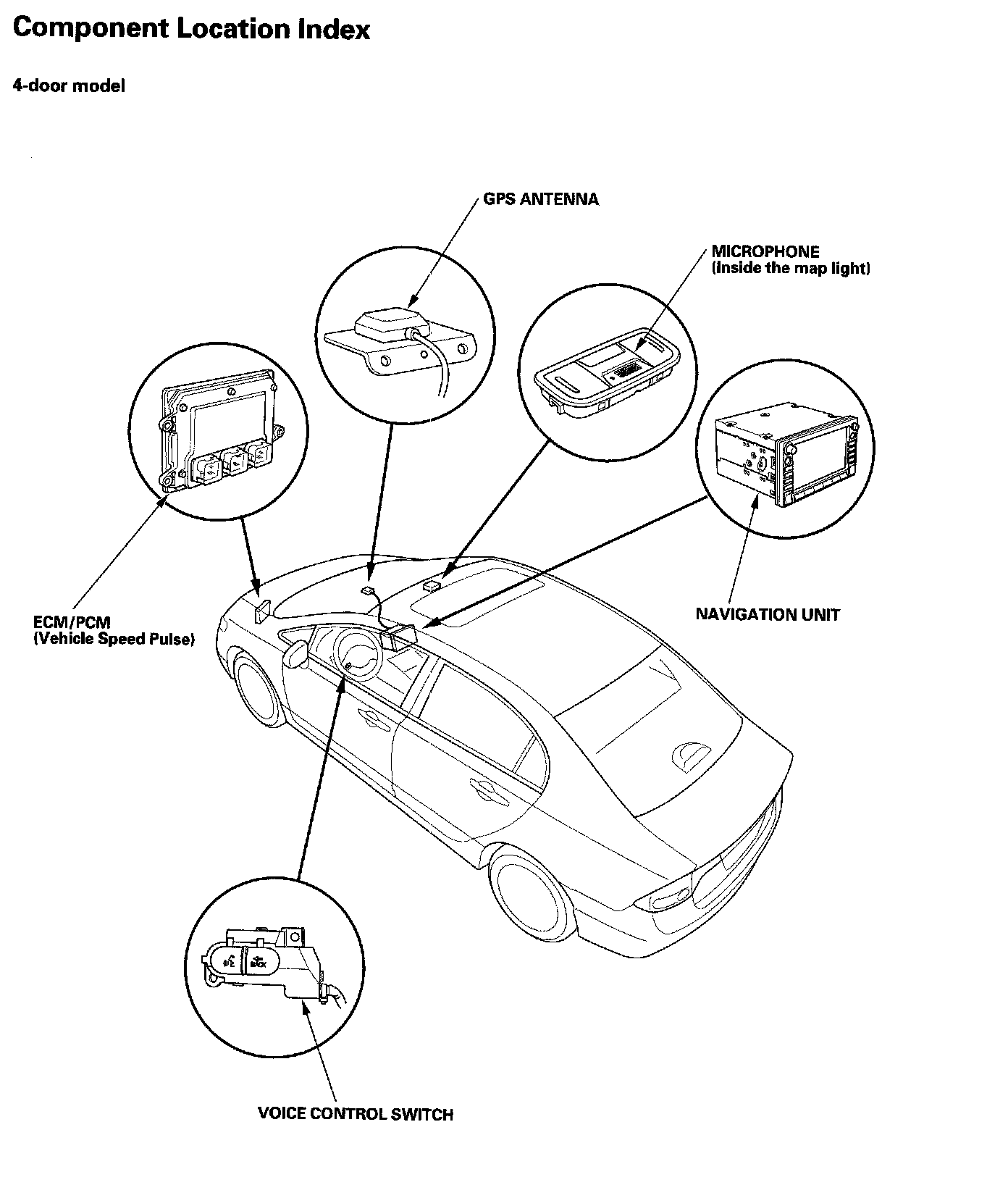

Navigation System Component Location Index:

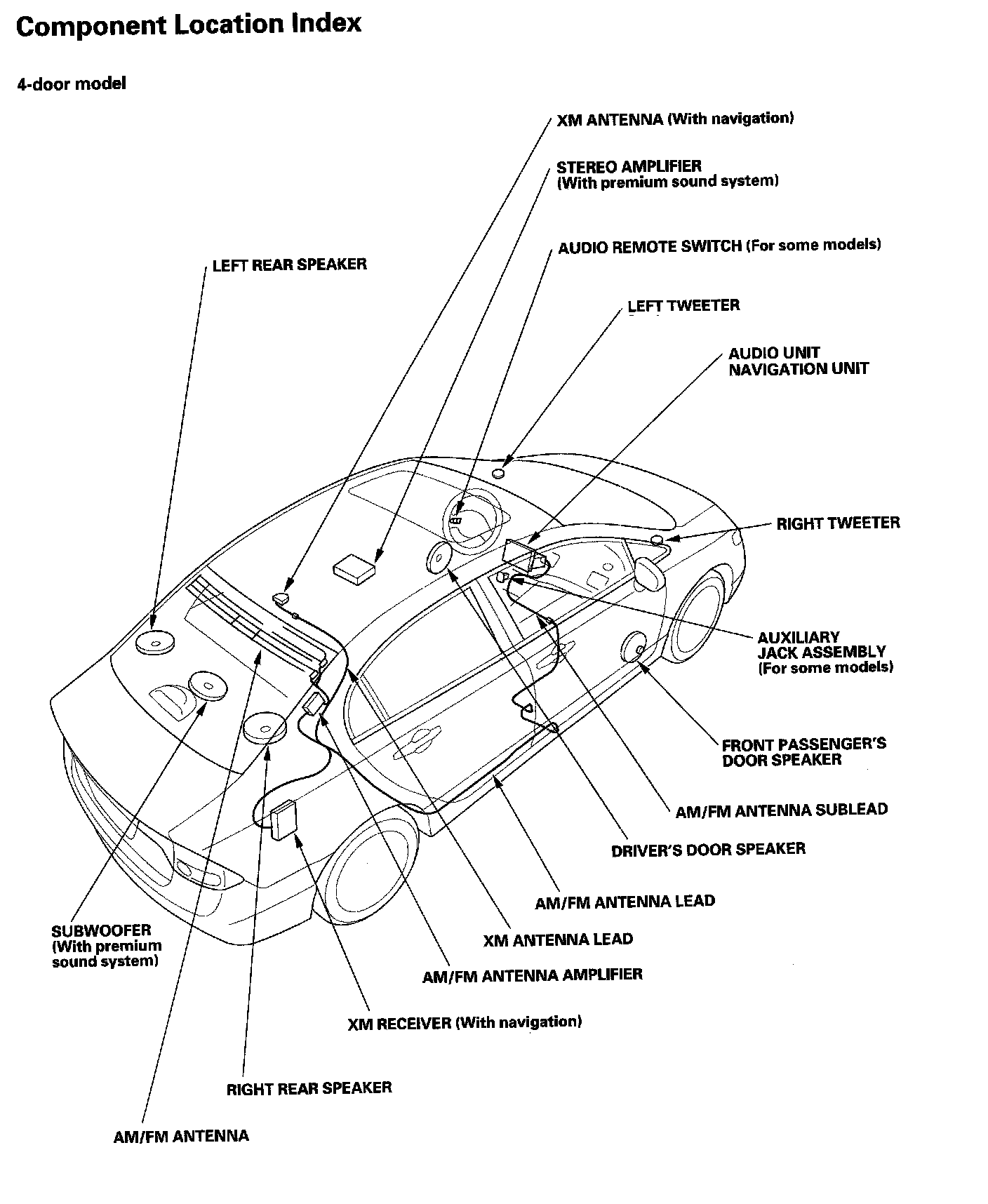

Audio System Component Location Index:

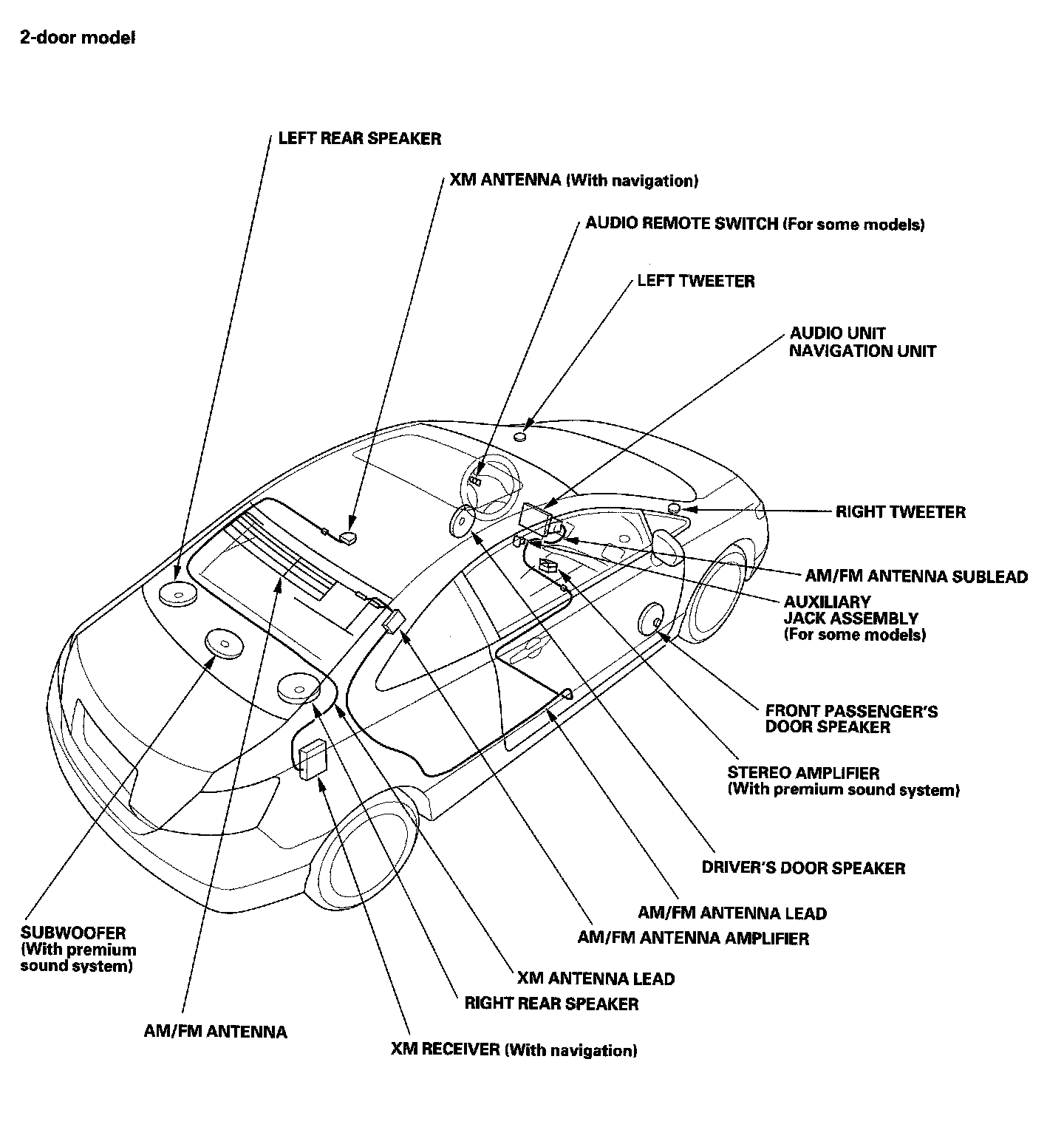

Audio System Component Location Index:
