System Diagram

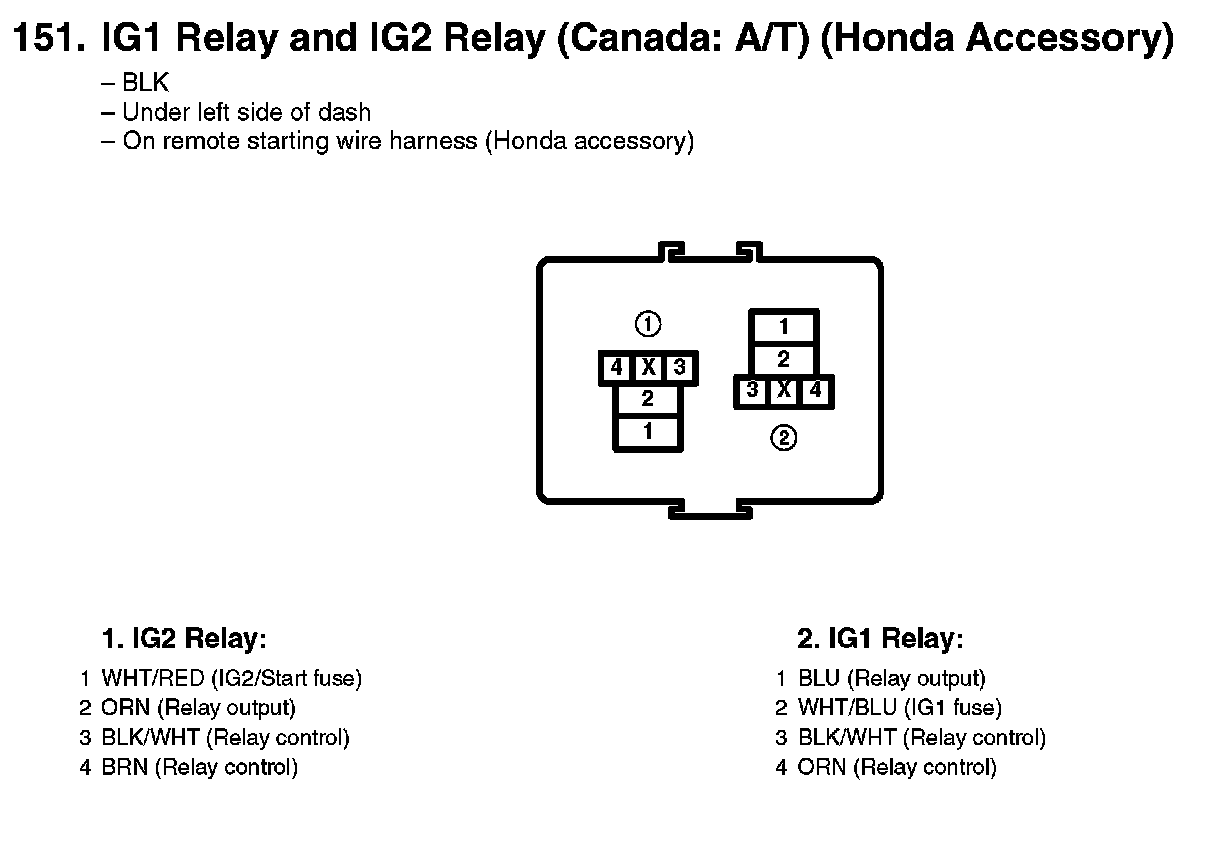

151. IG1 Relay IG2 Relay (Canada: A/T) (Honda Accessory):

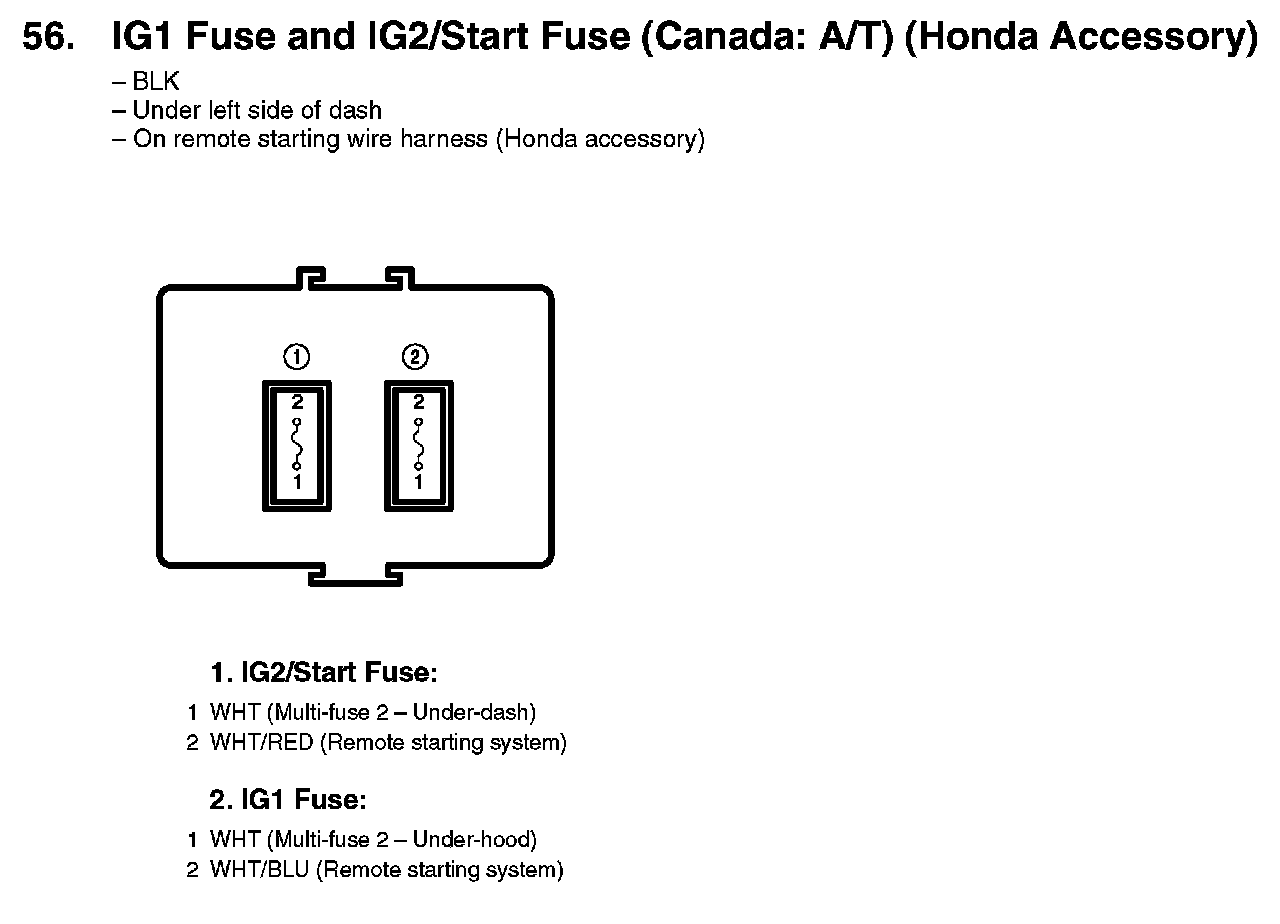

56. IG1 Fuse And IG2/Start Fuse (Canada: A/T) (Honda Accessory):
