System Diagram

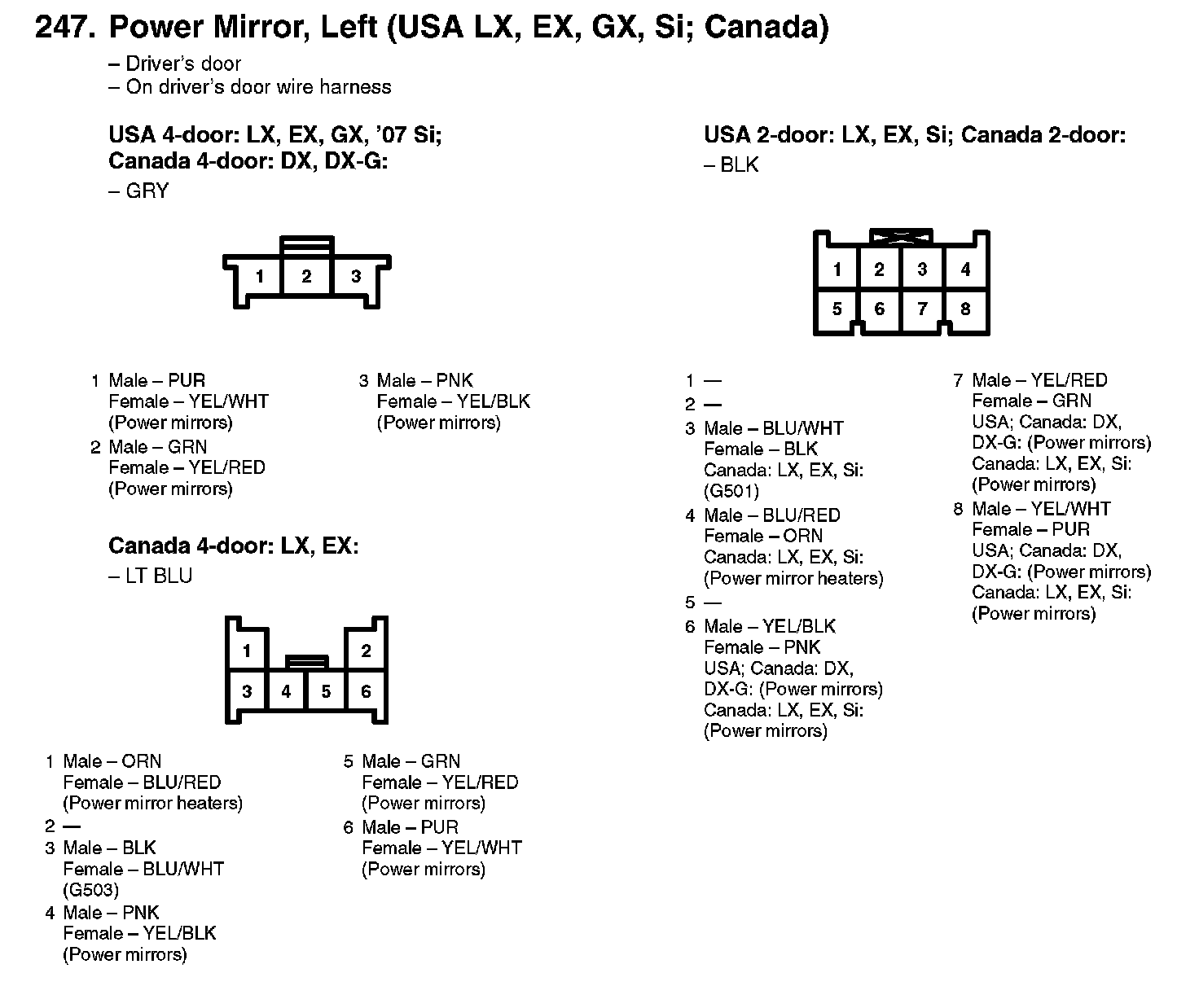

247. Power Mirror, Left (USA LX, EX, GX, Si; Canada):

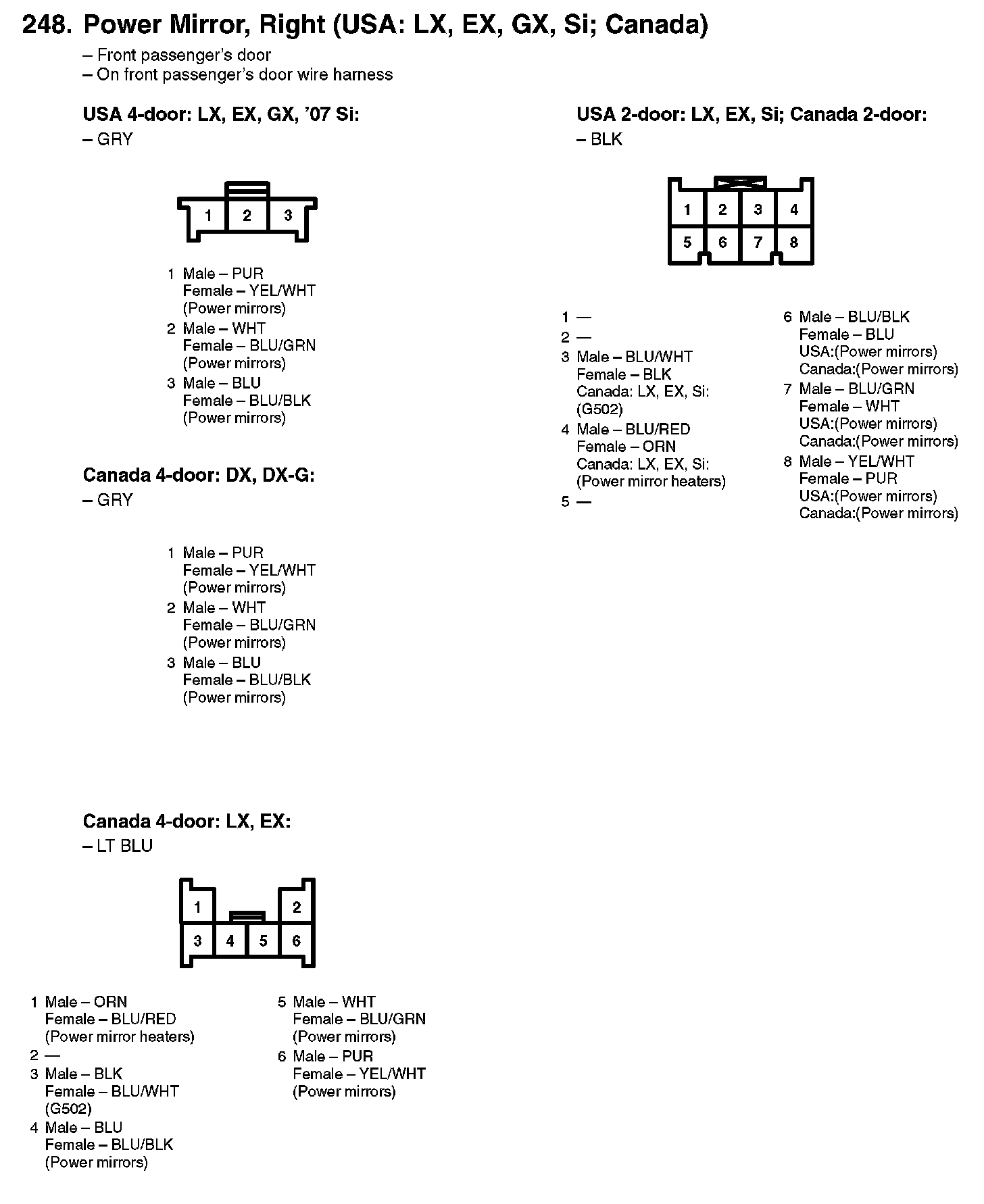

248. Power Mirror, Right (USA LX, EX, GX, Si; Canada):



188. Automatic Dimming Inside Mirror (Honda Accessory):
