Wheel Speed Sensor

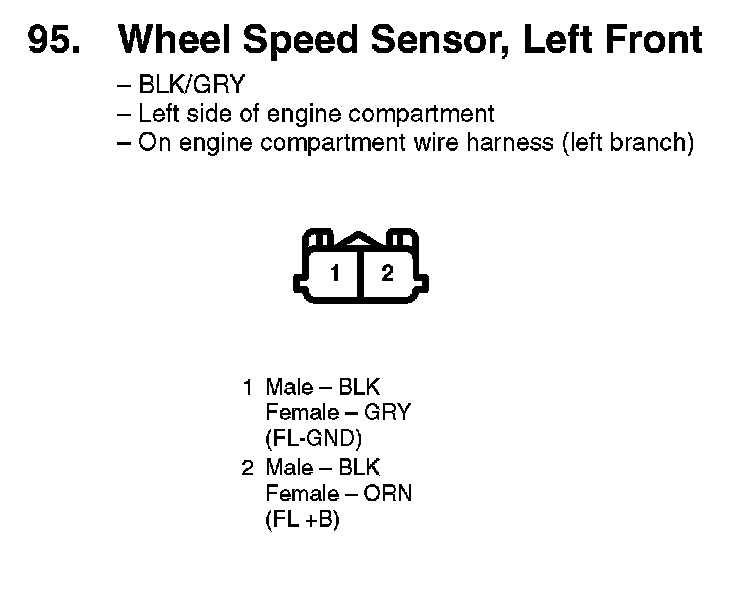

95. Wheel Speed Sensor, Left Front:

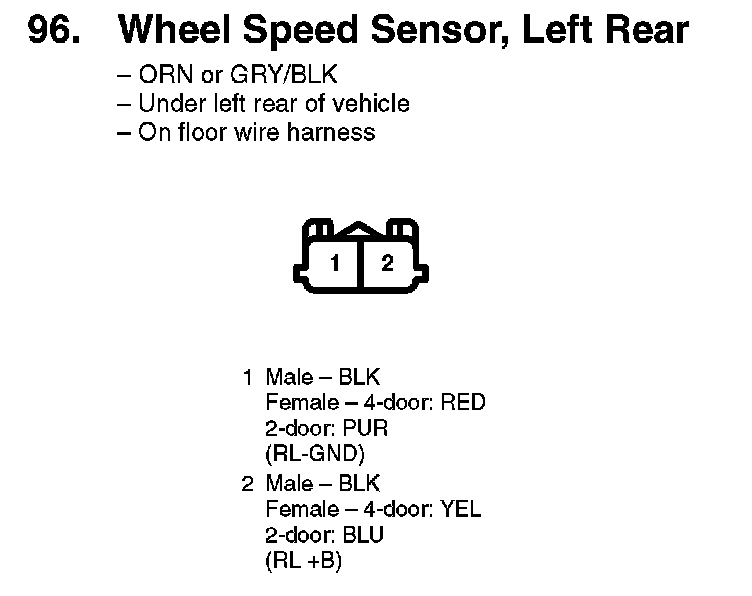

96. Wheel Speed Sensor, Left Rear:

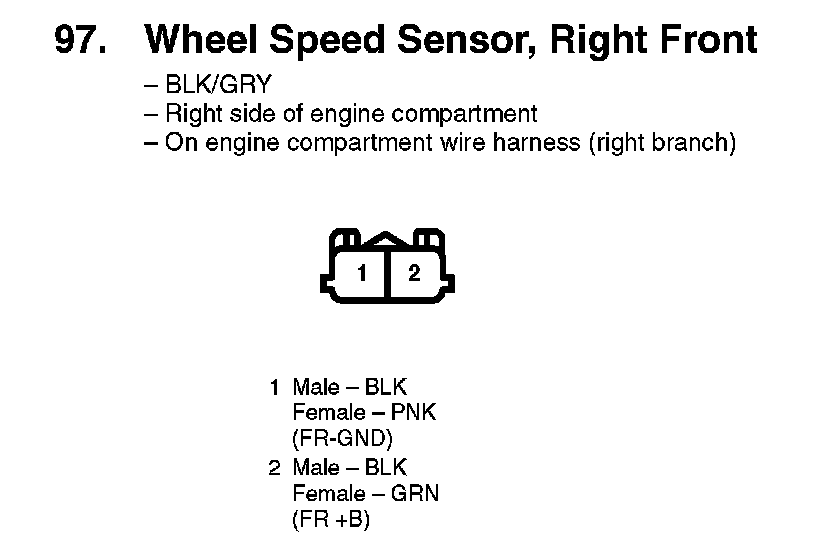

97. Wheel Speed Sensor, Right Front:

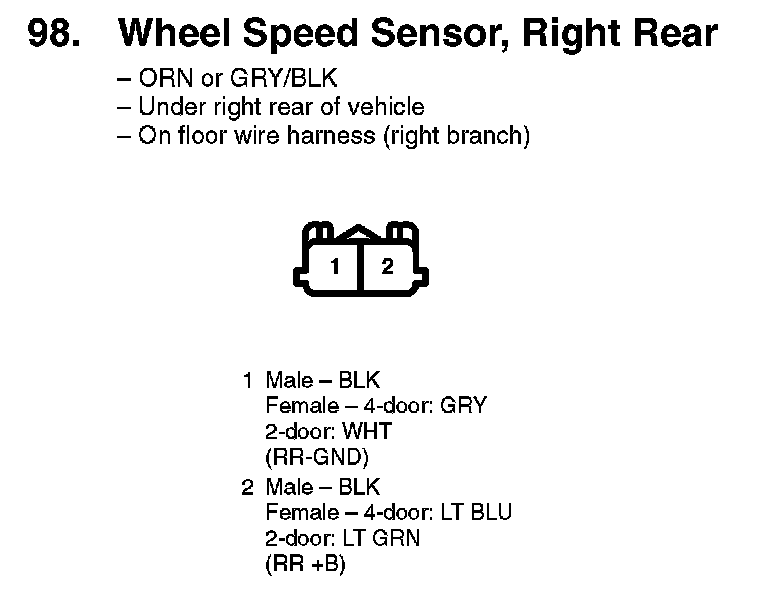

98. Wheel Speed Sensor, Right Rear:
