Knock Sensor: Locations

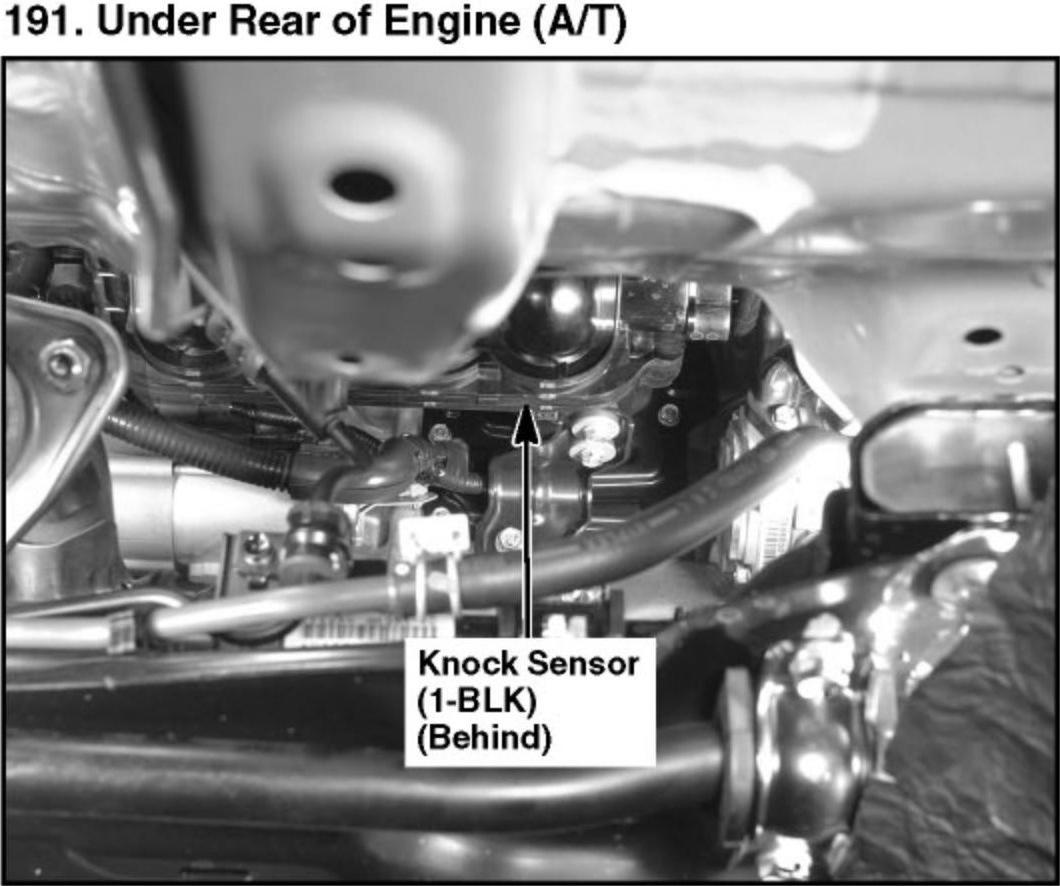

191. Under Rear of Engine (A/T):

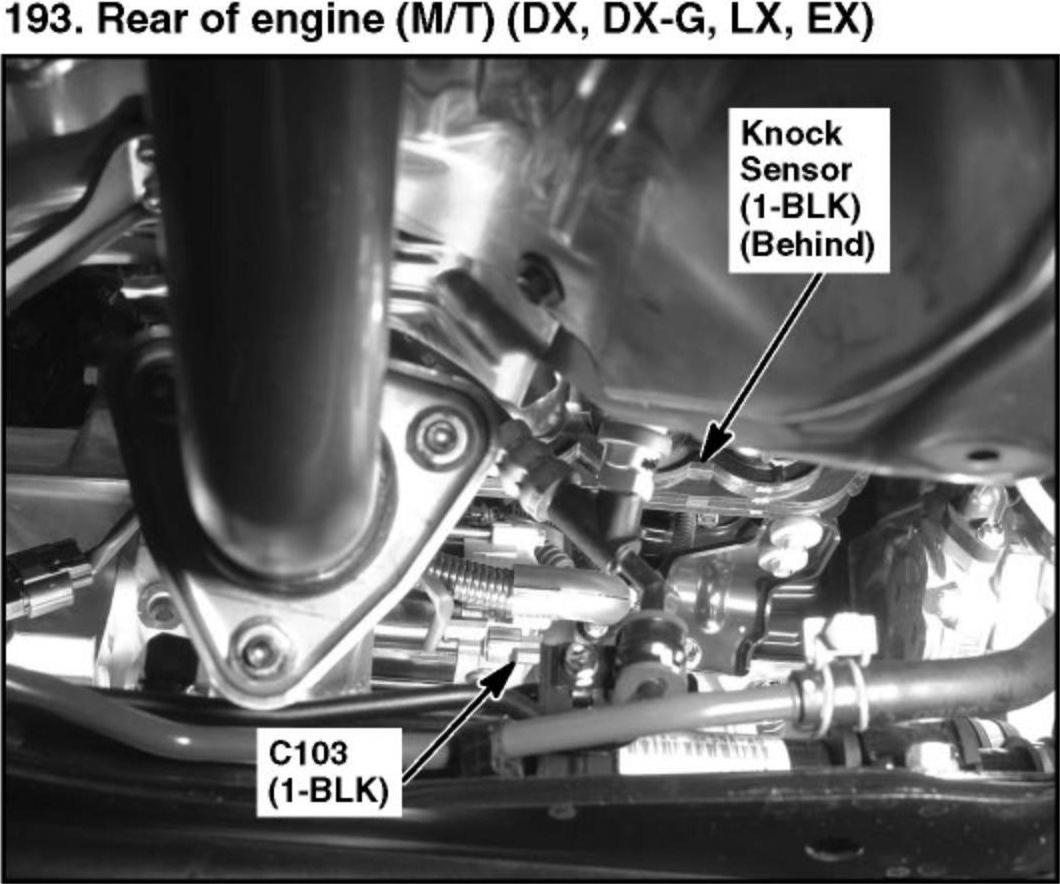

193. Rear of engine (M/T) (DX, DX-G, LX, EX):



PGM-FI System Component Location Index:
