Manifold Pressure/Vacuum Sensor: Service and Repair

MAP Sensor Replacement

1. Remove the cowl cover and under-cowl panel.

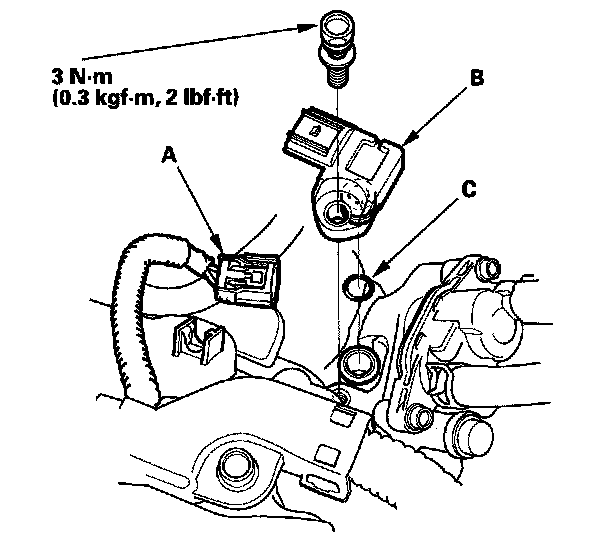

2. Disconnect the MAP sensor connector (A).
3. Remove the MAP sensor (B).
4. Install the parts in the reverse order of removal with a new O-ring (C).
