Pinout Values and Diagnostic Parameters

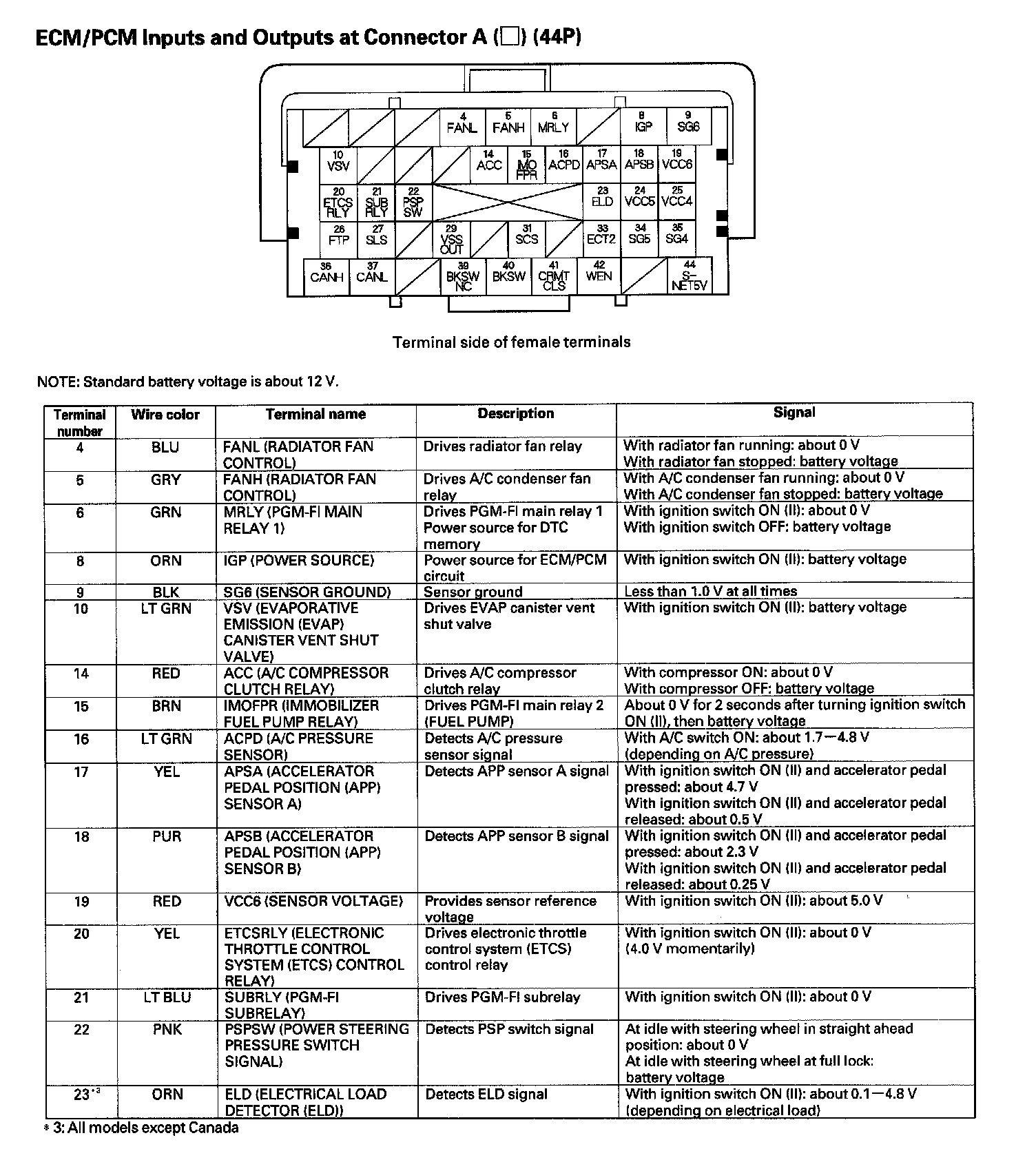

ECM/PCM Inputs And Outputs Connector A (44P) (Part 1):

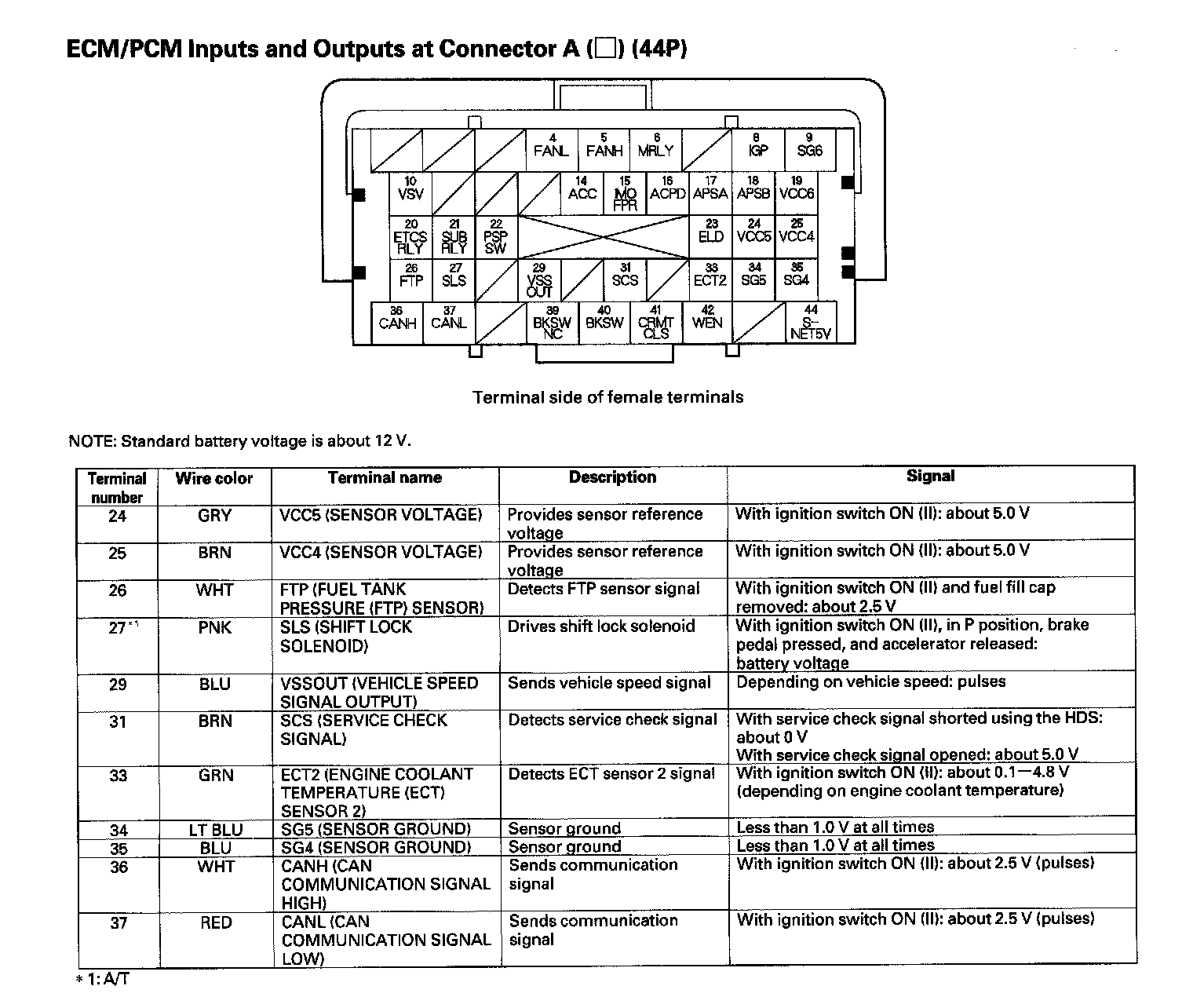

ECM/PCM Inputs And Outputs Connector A (44P) (Part 2):

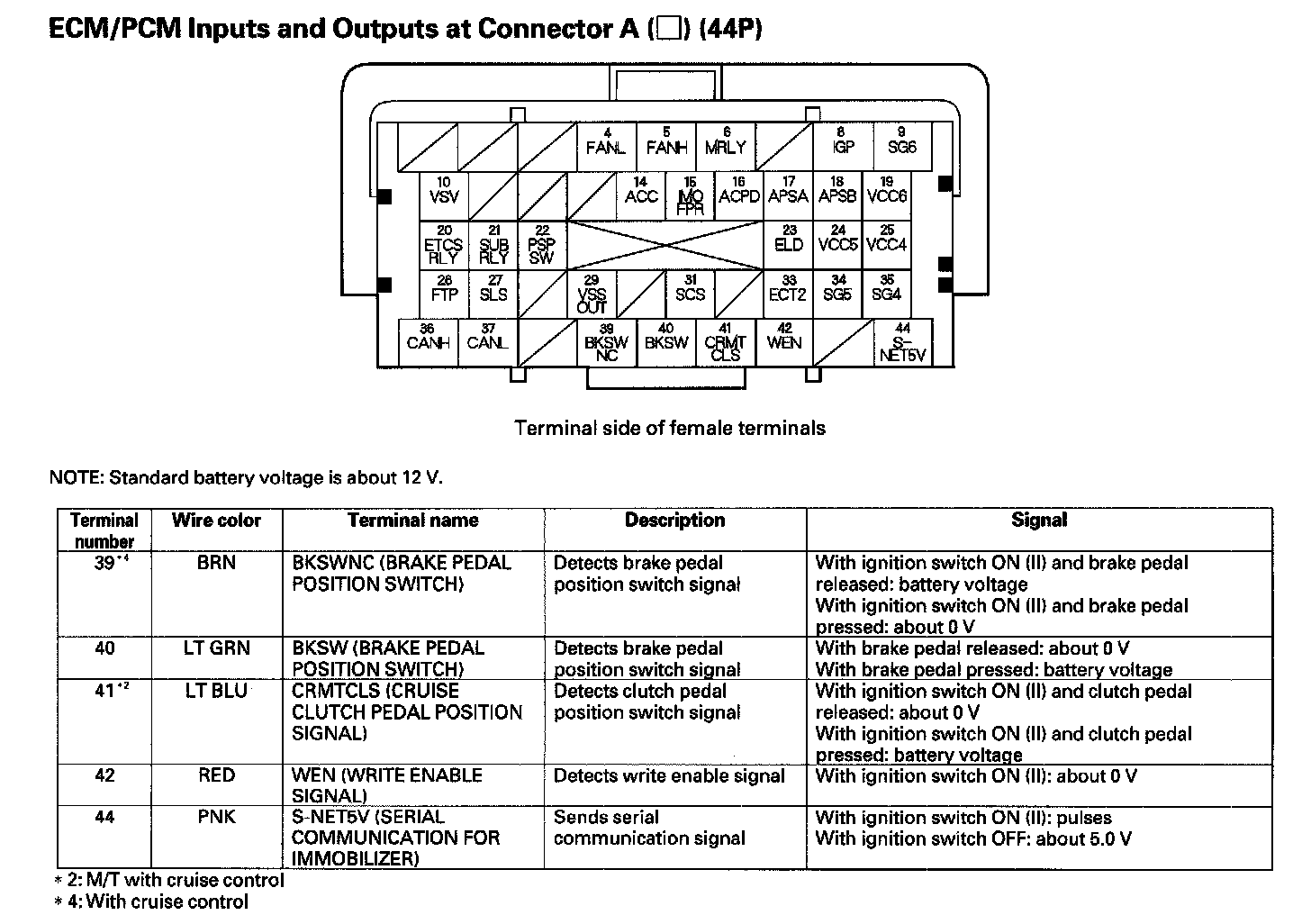

ECM/PCM Inputs And Outputs Connector A (44P) (Part 3):

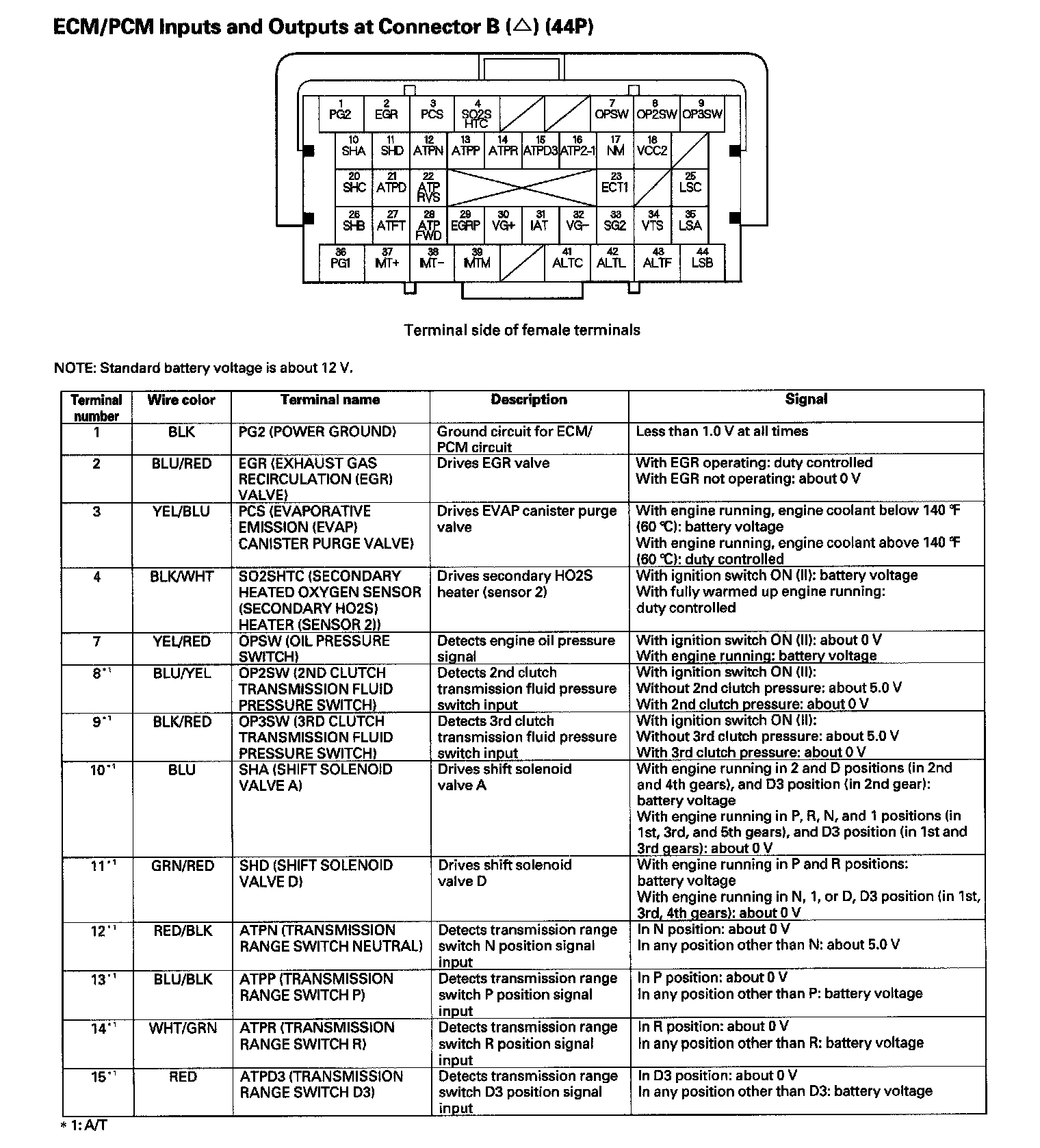

ECM/PCM Inputs And Outputs Connector B (44P) (Part 1):

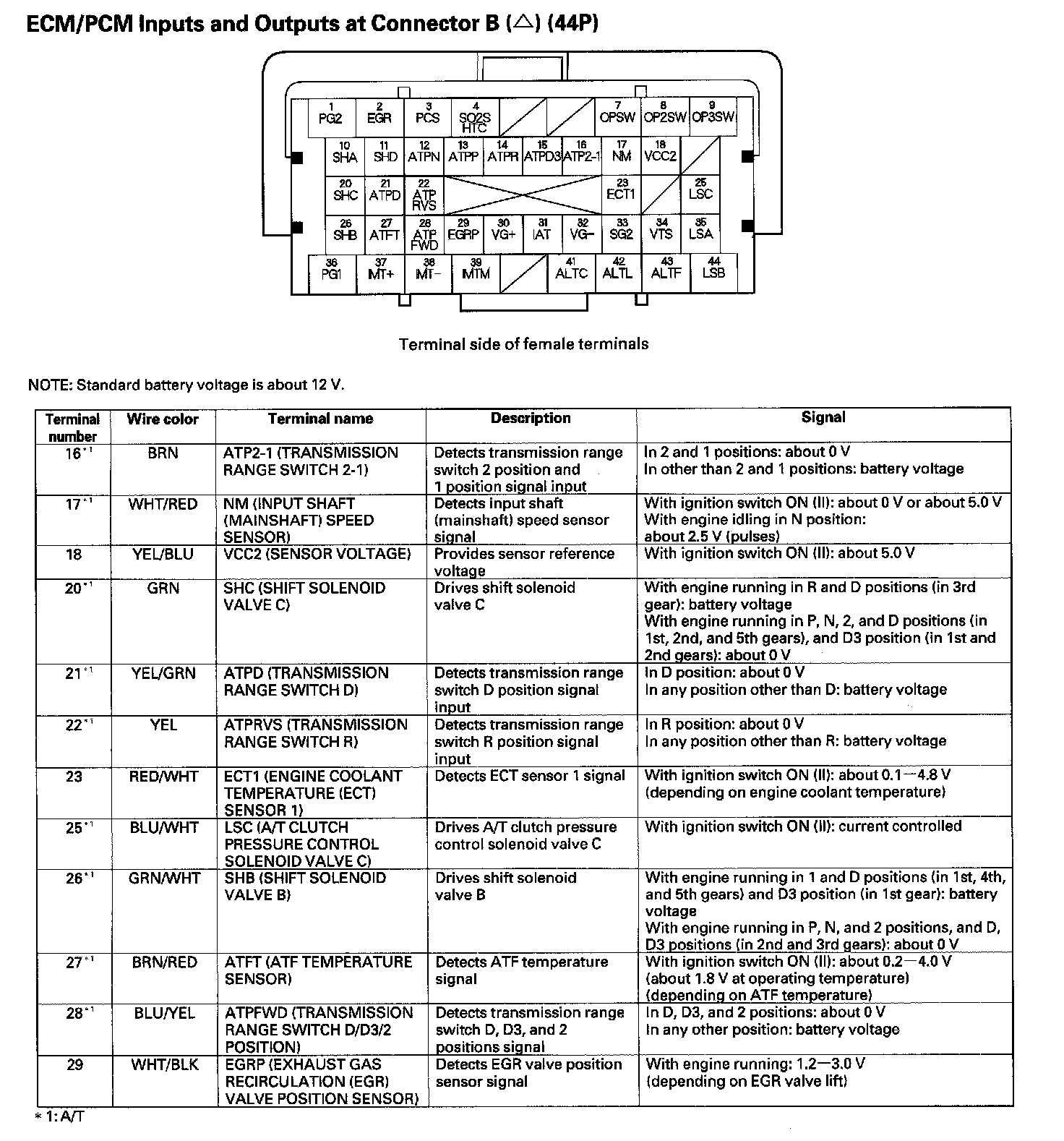

ECM/PCM Inputs And Outputs Connector B (44P) (Part 2):

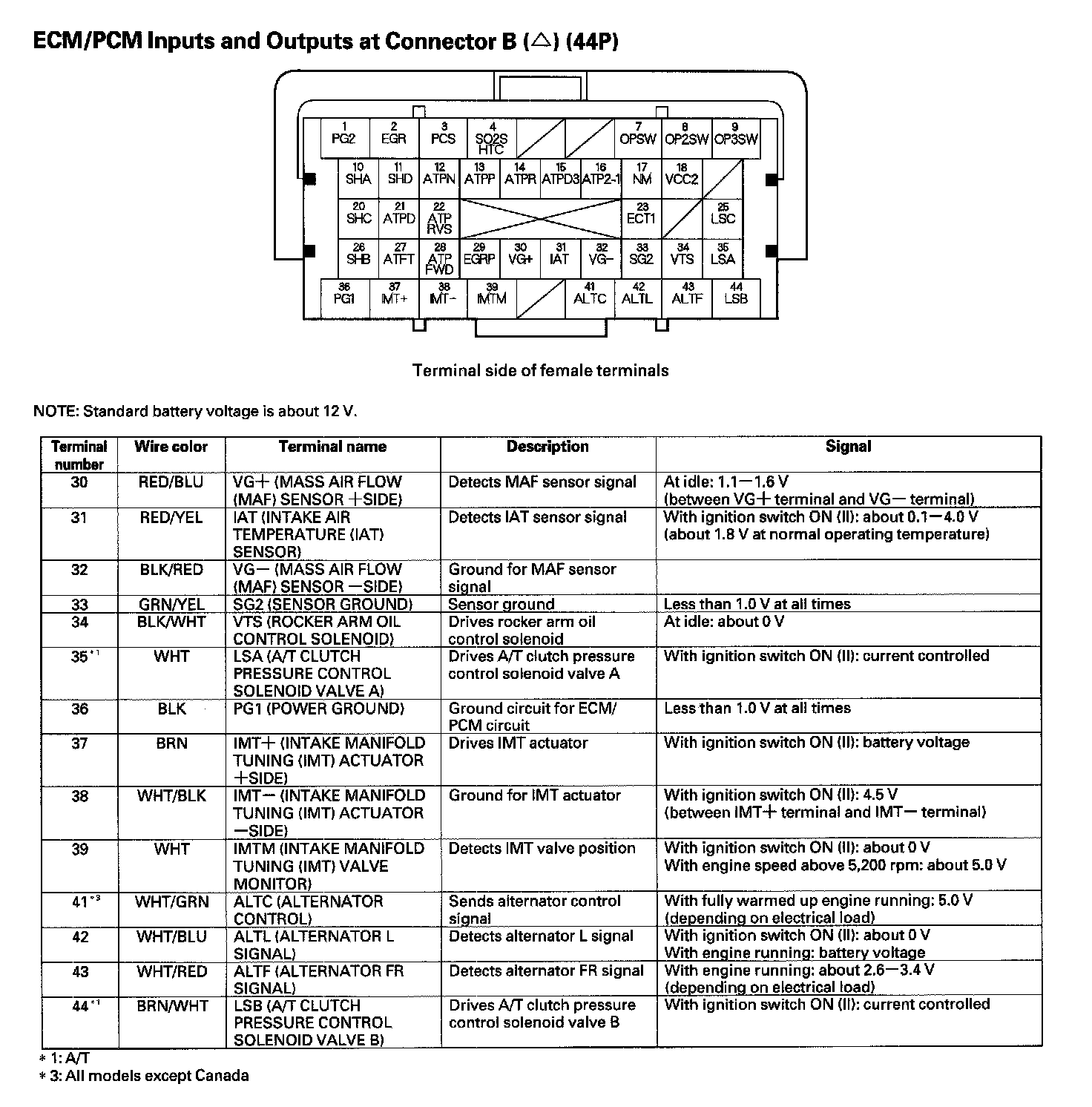

ECM/PCM Inputs And Outputs Connector B (44P) (Part 3):

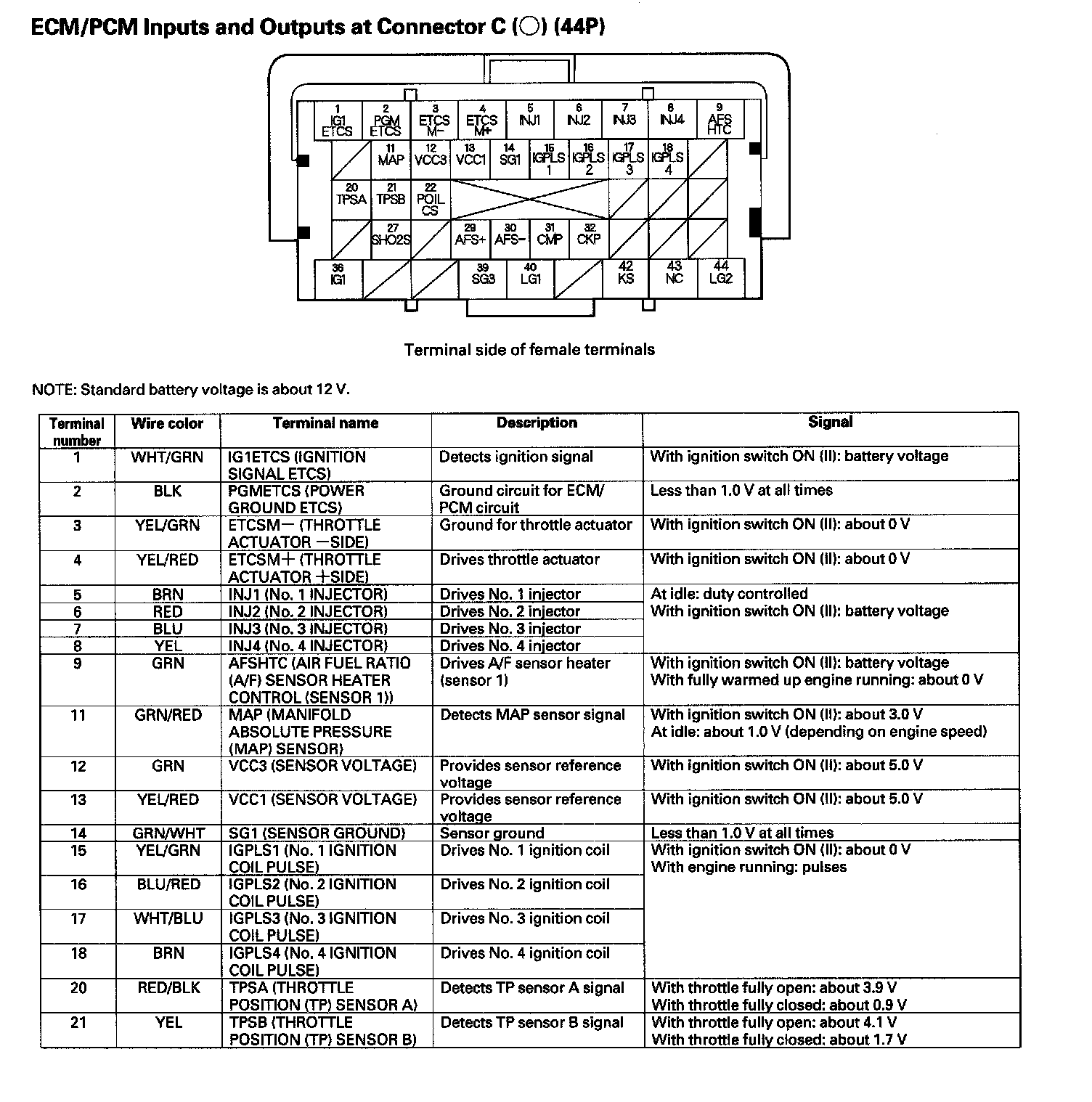

ECM/PCM Inputs And Outputs Connector C (44P) (Part 1):

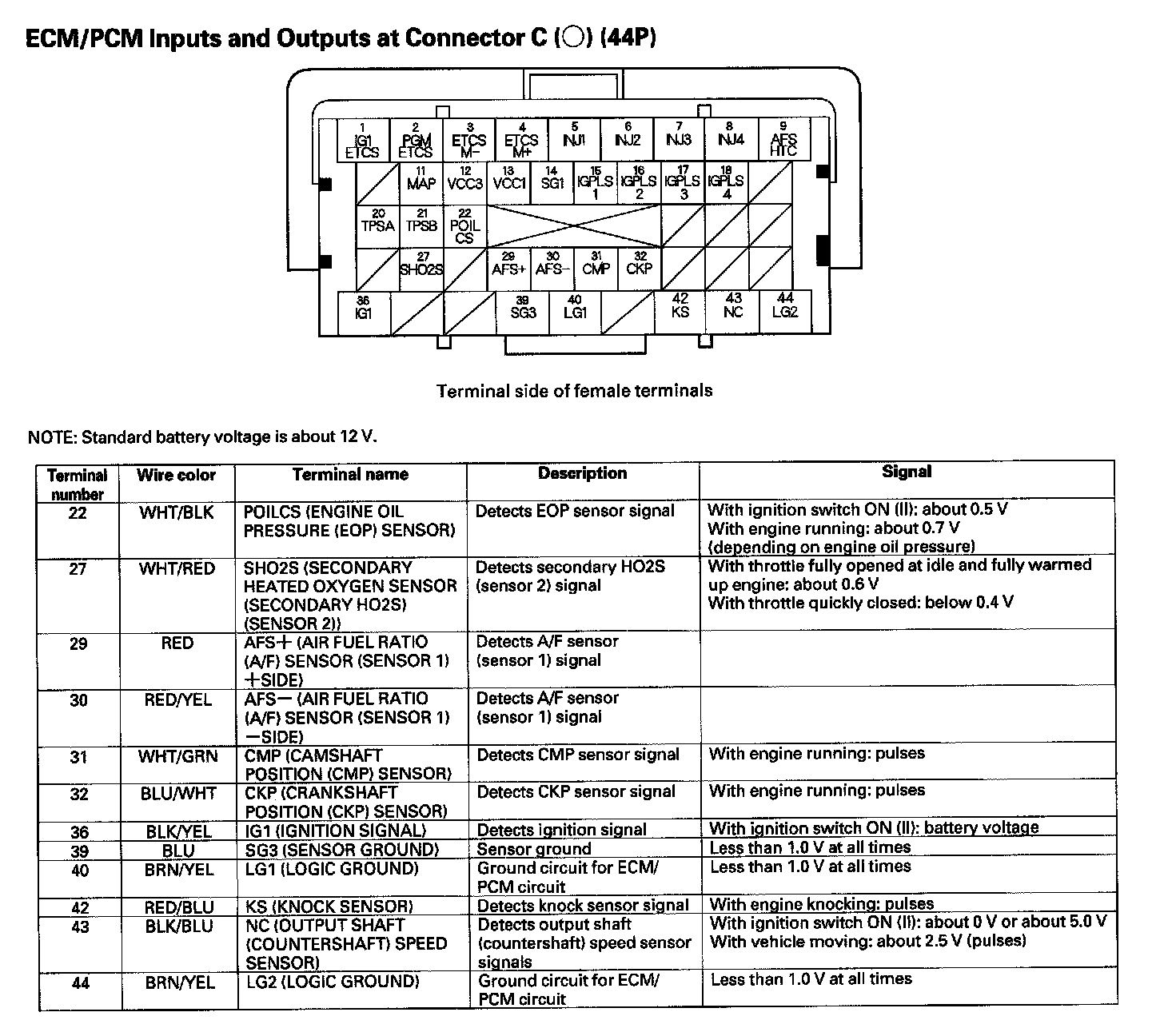

ECM/PCM Inputs And Outputs Connector C (44P) (Part 2):
