Variable Valve Timing Pressure Switch: Service and Repair

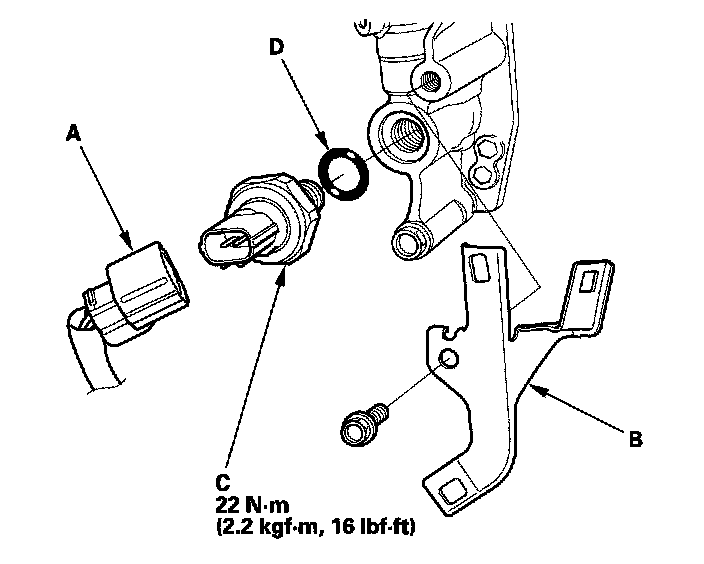

EOP Sensor Removal/Installation

1. Remove the cowl cover and under-cowl panel.
2. Disconnect the EOP sensor connector (A).




3. Remove the bracket (B) and the EOP sensor (C).
4. Install the parts in the reverse order of removal with a new O-ring (D).
