Instrument Panel Control Module: Locations

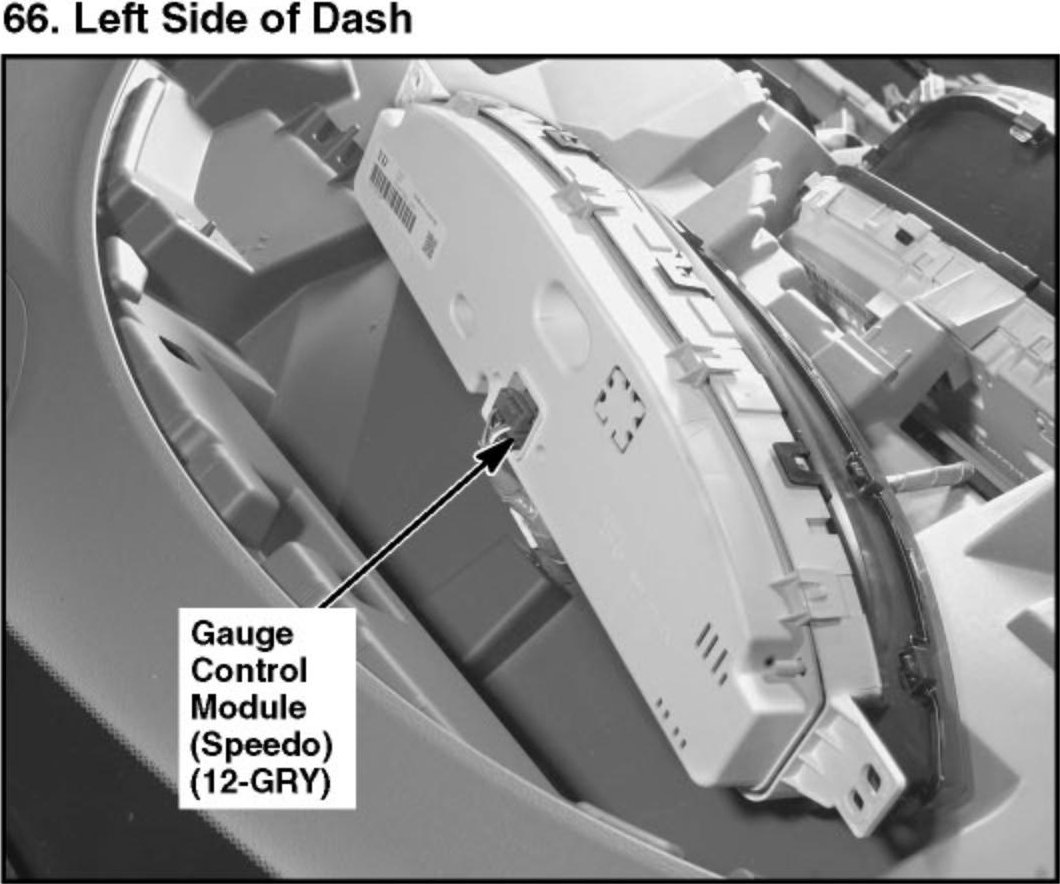

66. Left Side of Dash:

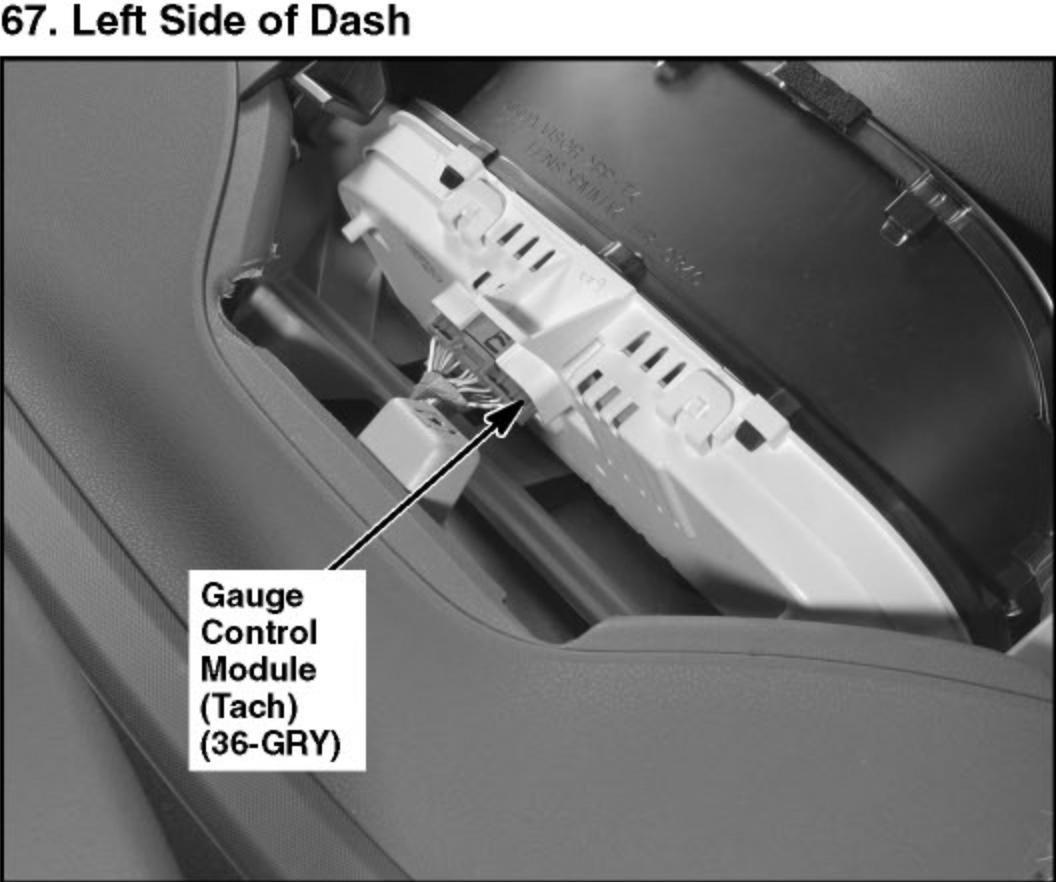

67. Left Side of Dash:

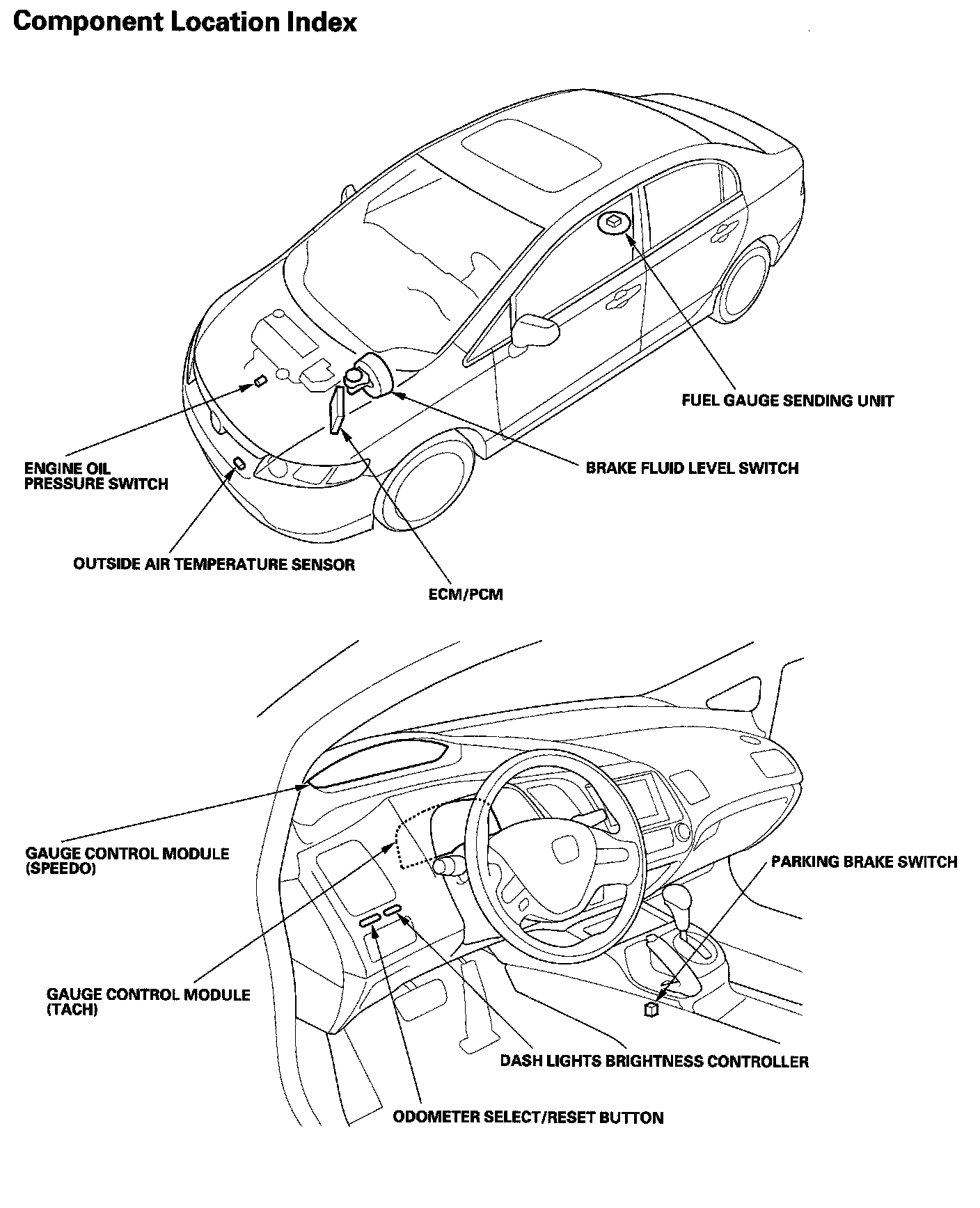

Gauges Component Location Index:

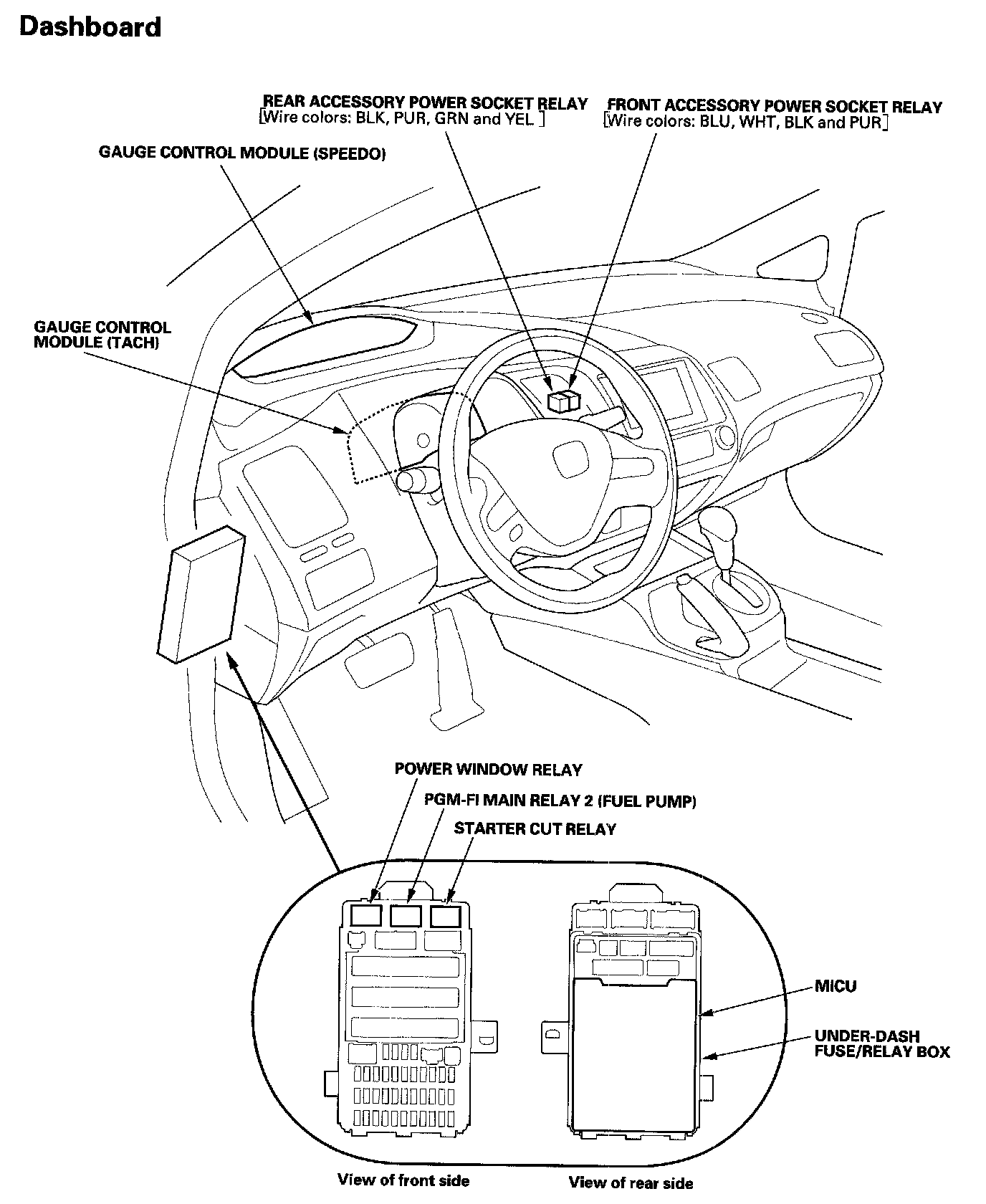

Relay And Control Unit Locations Dashboard:
