Catalytic Converter: Service and Repair

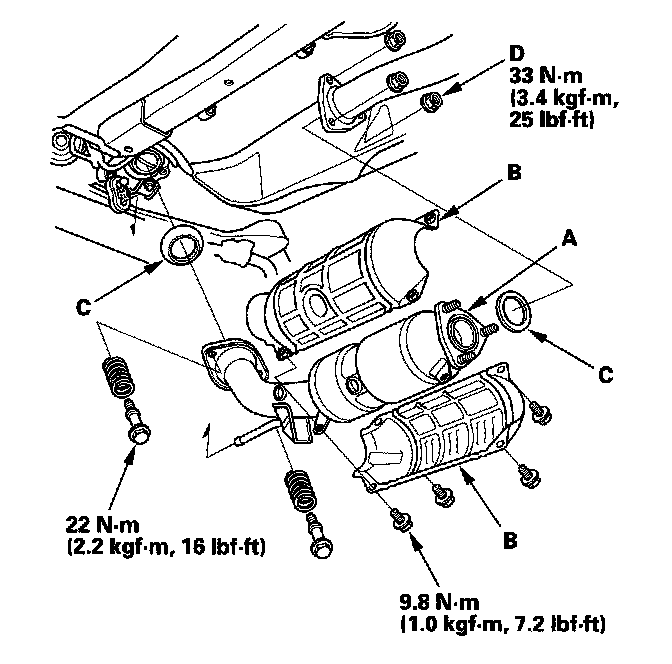

Catalytic Converter Removal/Installation

1. Remove the A/F sensor (sensor 1).
2. Remove the secondary HO2S (sensor 2).




3. Remove the catalytic converter (A).
4. Remove the converter cover (B).
5. Install the parts in the reverse order of removal with new gaskets (C) and new self-locking nuts (D).
