System Specifications
Crankshaft PulleyTighten the bolt to 49 N-m (5.0 kgf-m, 36 lbf-ft) with a torque wrench and 19 mm socket (C). Do not use an impact wrench.
Tighten the pulley bolt an additional 90°.

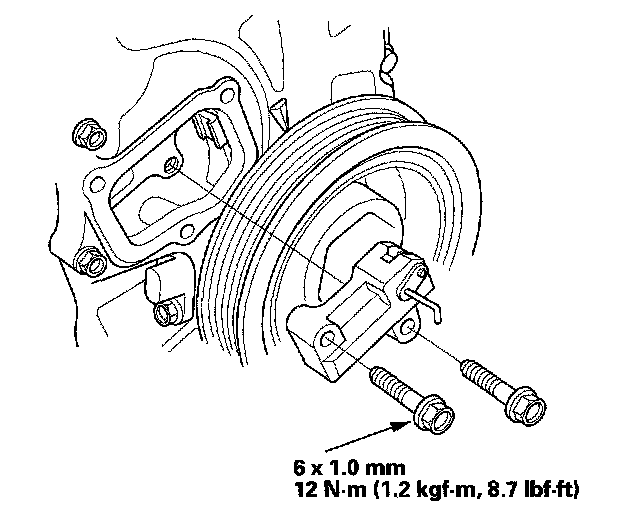

Auto-tensioner

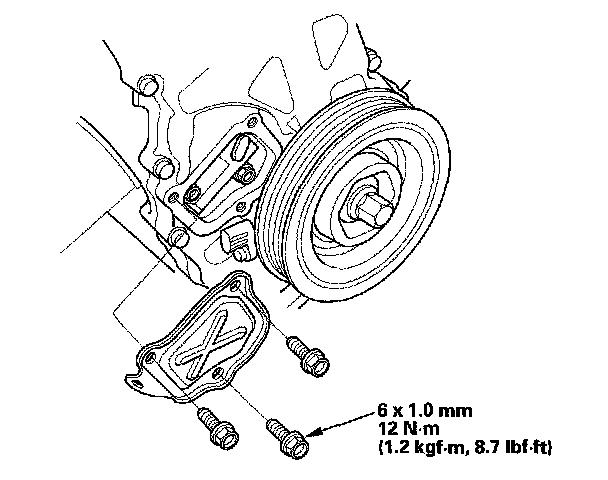

Chain case cover
Tighten the bolt to 49 N-m (5.0 kgf-m, 36 lbf-ft) with a torque wrench and 19 mm socket (C). Do not use an impact wrench.
Tighten the pulley bolt an additional 90°.
Auto-tensioner
Chain case cover
