View 1-25: 19

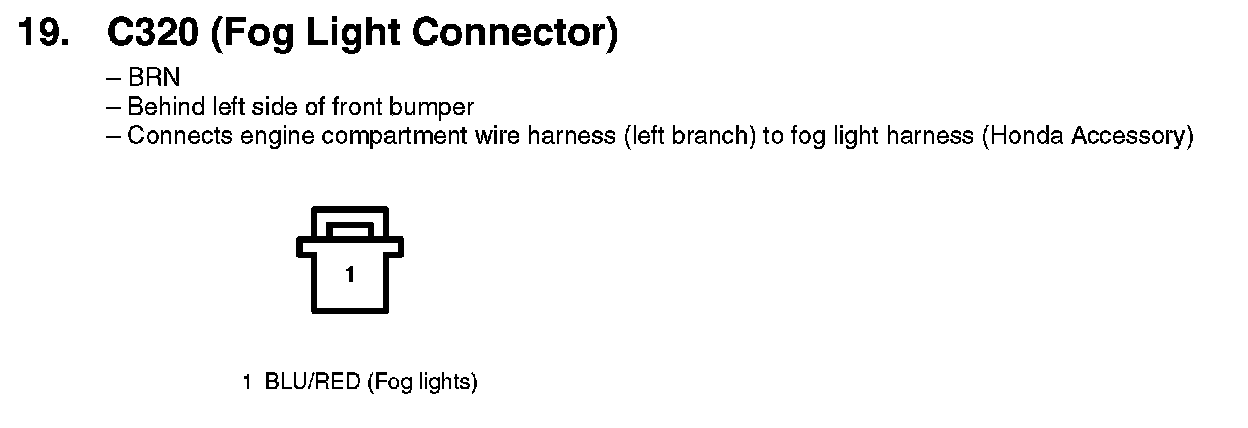

19. C320 (Fog Light Connector):

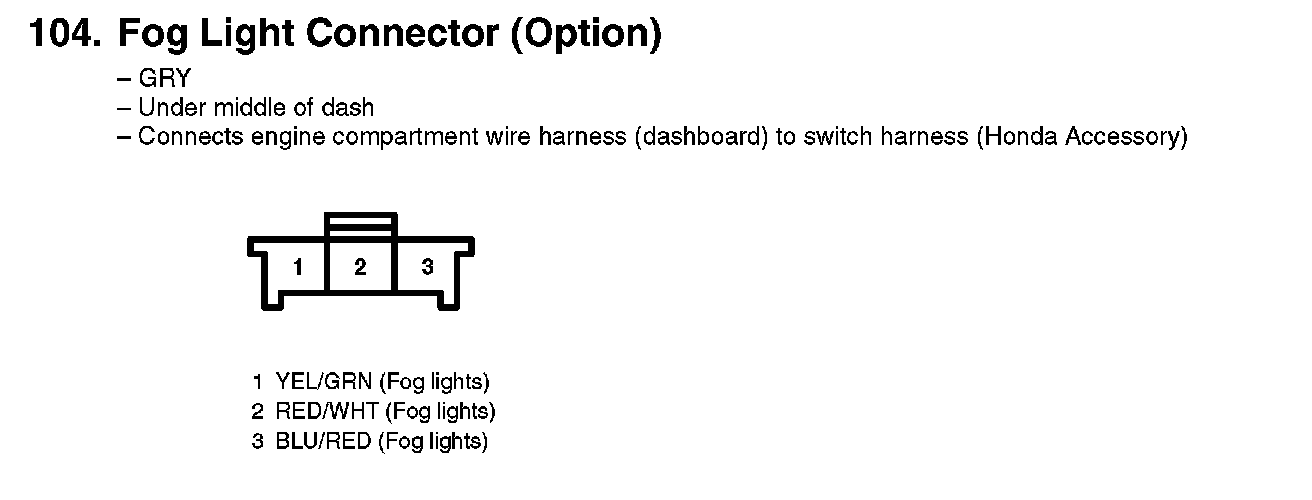

104. Fog Light Connector (Option):

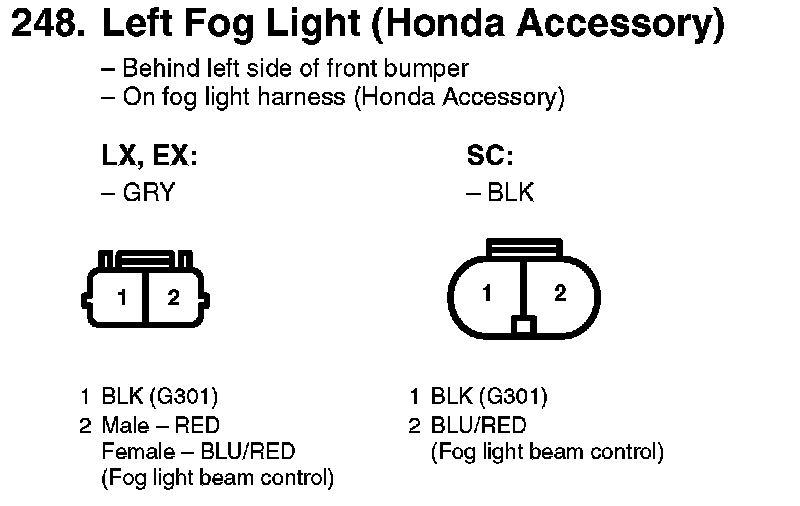

248. Left Fog Light (Honda Accessory):

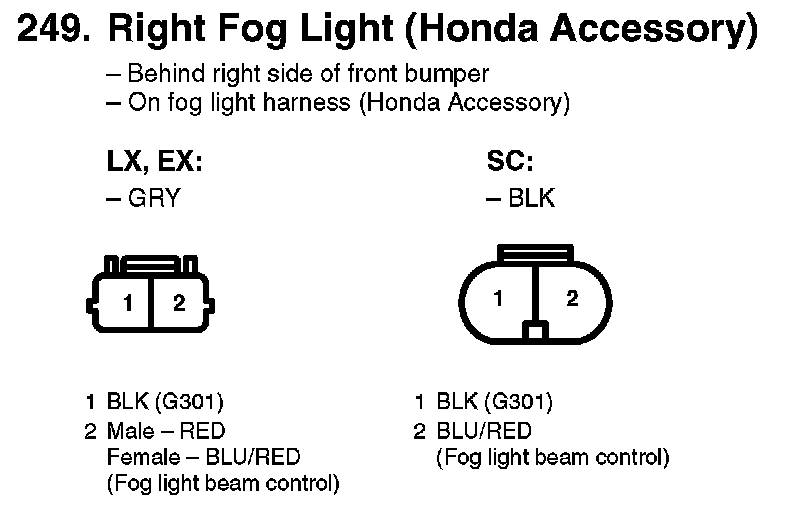

249. Right Fog Light (Honda Accessory):
