View 1-25: 25

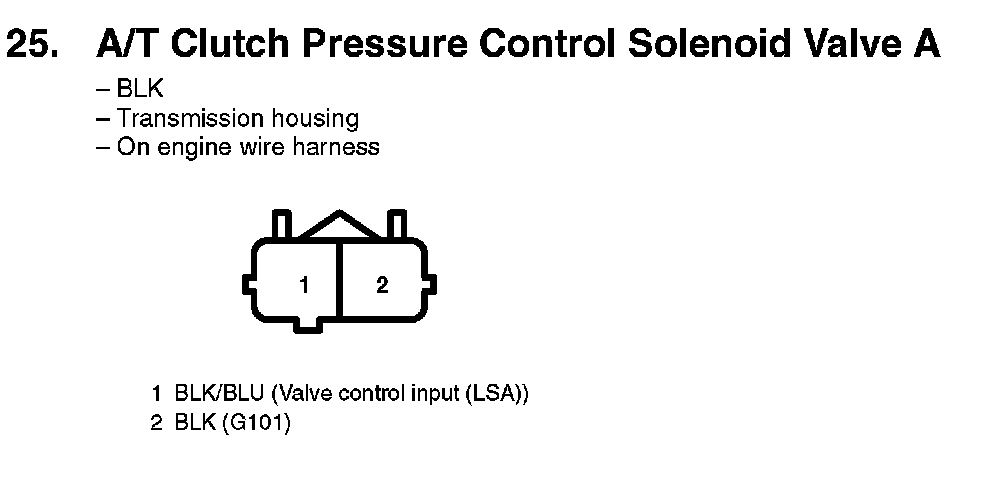

25. A/T Clutch Pressure Control Solenoid Valve A:

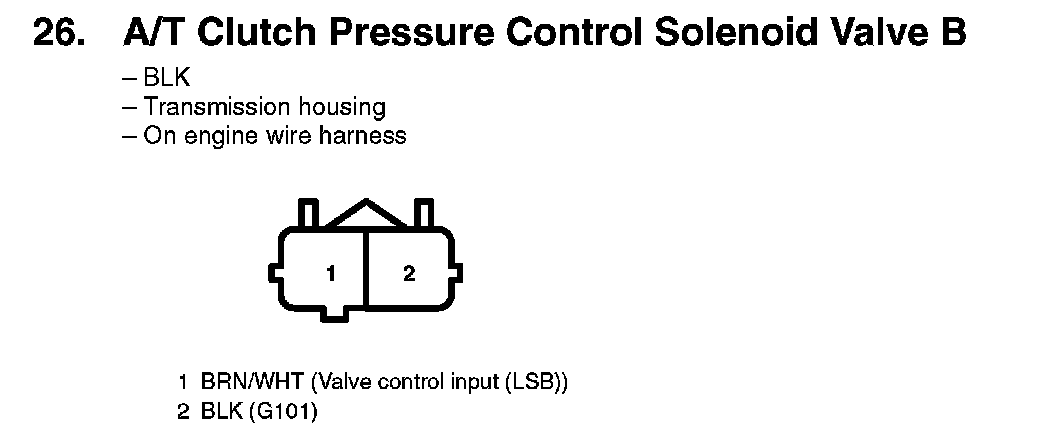

26. A/T Clutch Pressure Control Solenoid Valve B:



27. A/T Clutch Pressure Control Solenoid Valve C:
