Door Switch

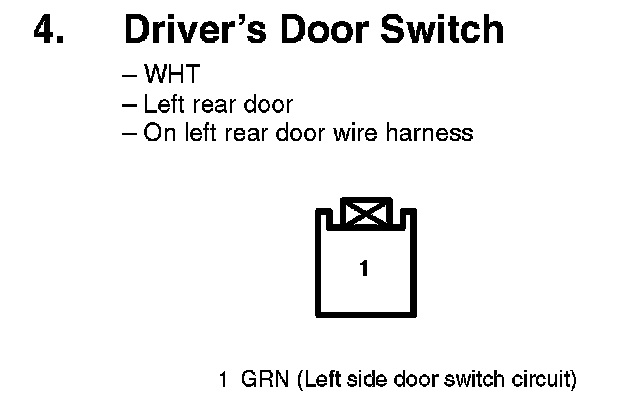

4. Driver's Door Switch:



5. Front Passenger's Door Switch:

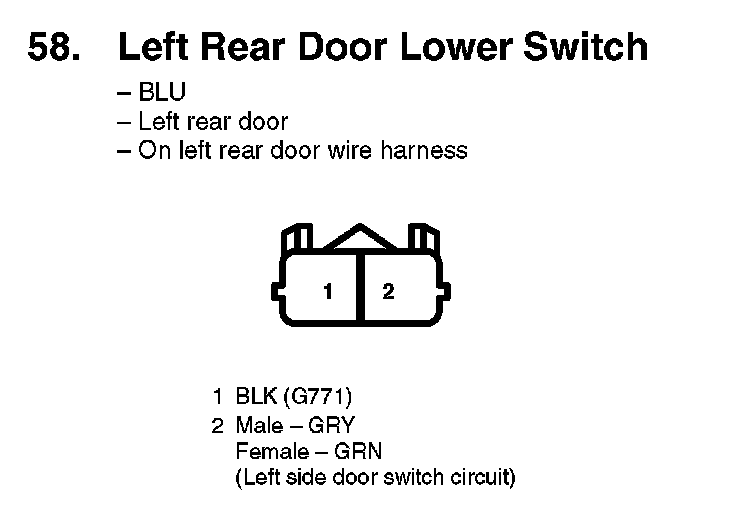

58. Left Rear Door Lower Switch:

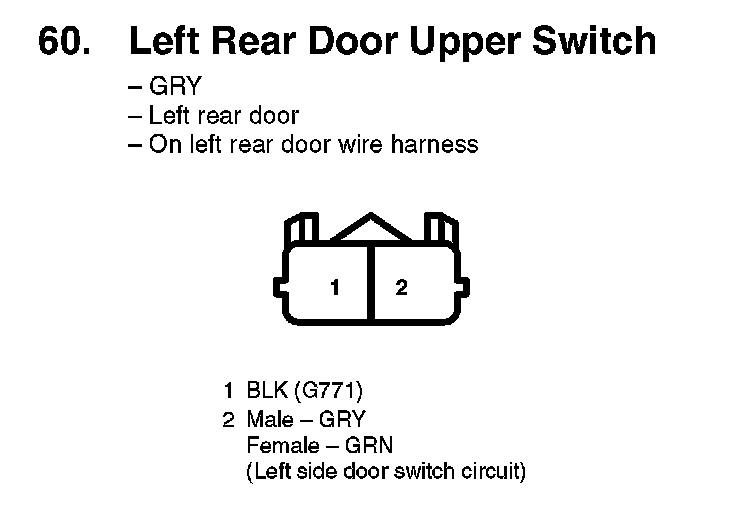

60. Left Rear Door Upper Switch:

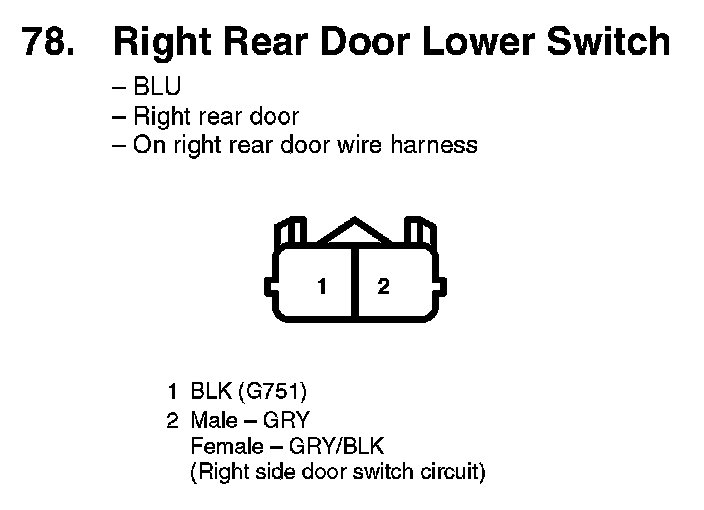

78. Right Rear Door Lower Switch:

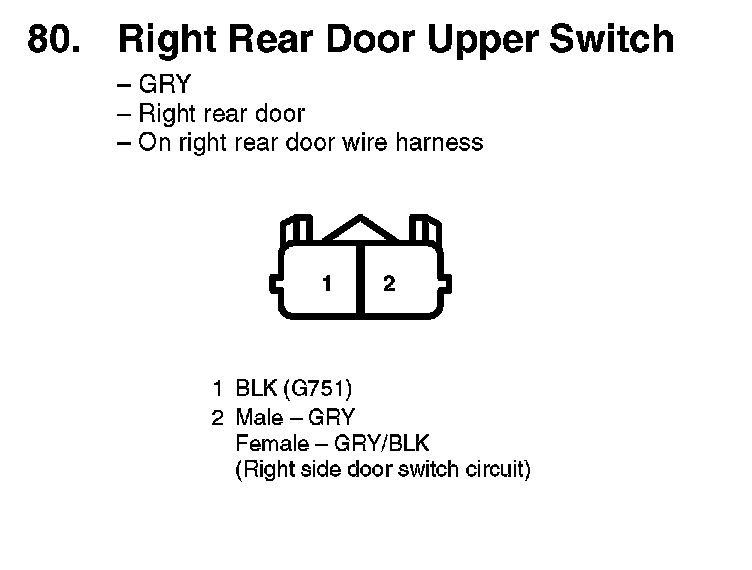

80. Right Rear Door Upper Switch:
