Catalytic Converter: Service and Repair

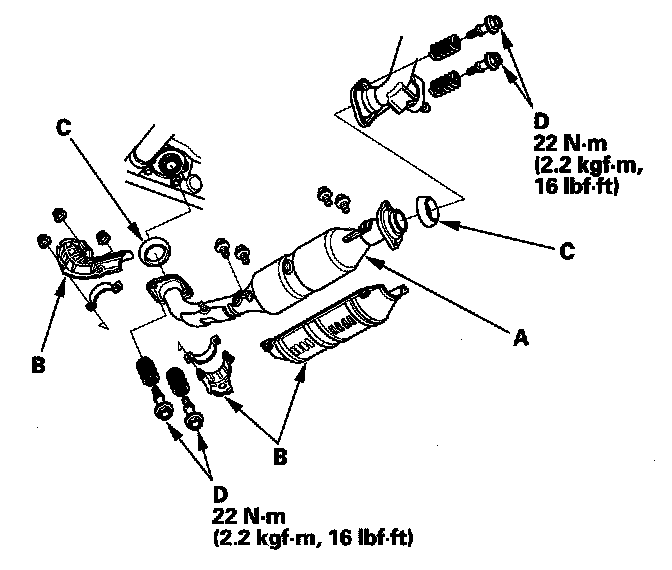

Catalytic Converter Removal/Installation

1. Remove the A/F sensor and secondary HO2S.




2. Remove the TWC (A).
3. Remove the converter cover (B).
4. Install the parts in the reverse order of removal with new gaskets (C), and new bolts (D).
