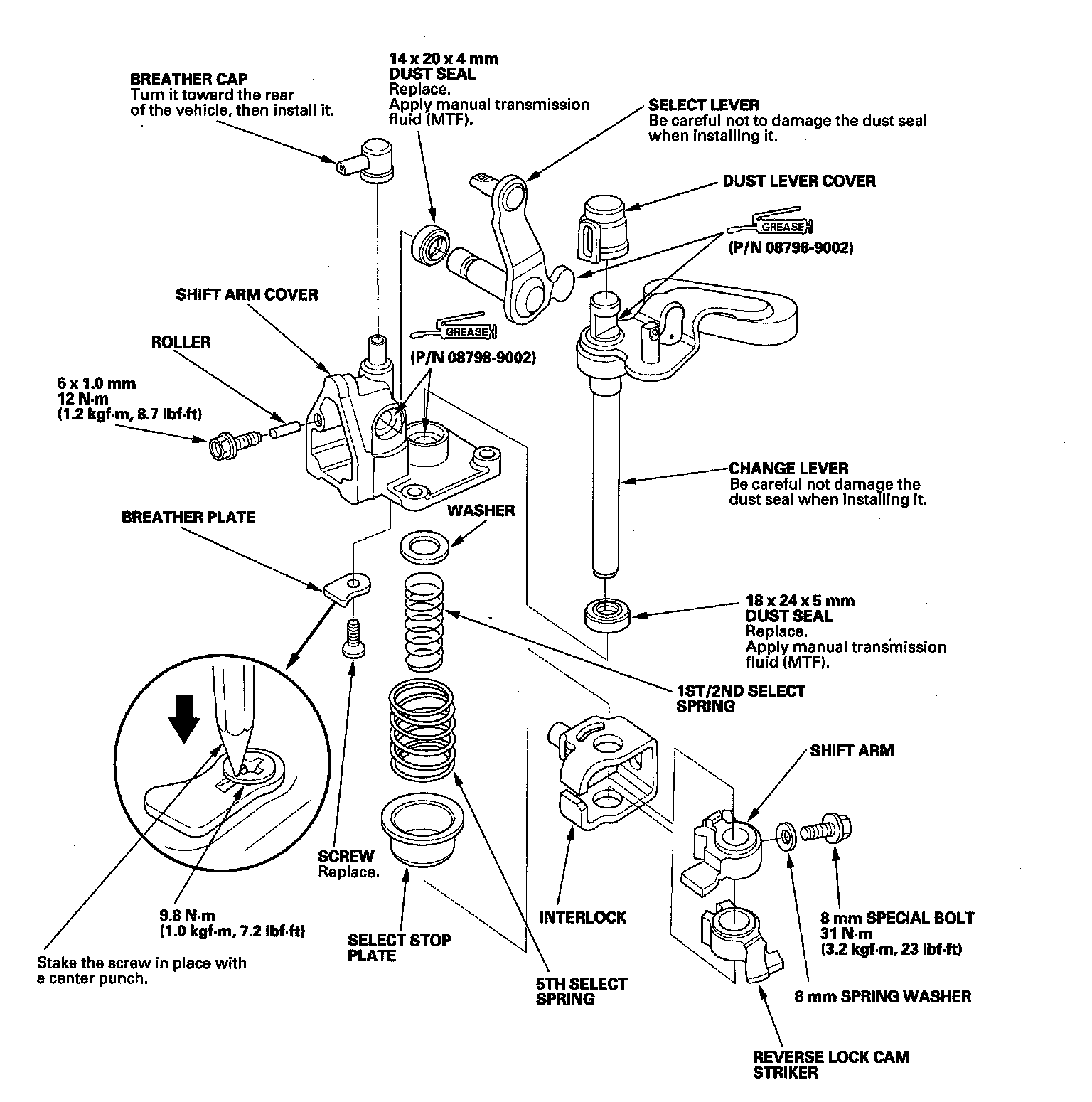

Change Lever Assembly Disassembly/Reassembly

Change Lever Assembly Disassembly/Reassembly
Prior to reassembling, clean all parts insolvent, dry them, and apply MTF to the contact surfaces as shown.
