Auxiliary Jack Connector Inputs and Outputs (EX and SC Models)

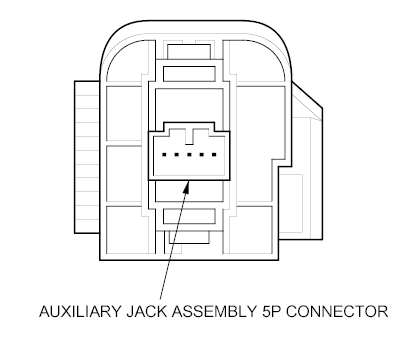

Fig 1: Identifying Auxiliary Jack Connector Inputs & Outputs (EX & SC Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

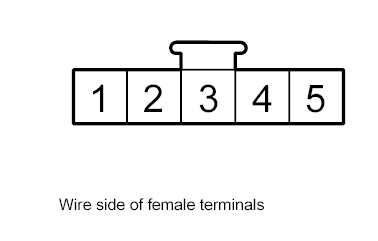

AUXILIARY JACK ASSEMBLY 5P CONNECTOR

Fig 2: Identifying Auxiliary Jack Assembly 5P Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

CONNECTOR REFERENCE TABLE

Cavity	Wire Color	Terminal Name	Connects to
1	YEL	AUX DET	Audio-navigation unit(1), Audio unit(2)
2	BLU	AUX GND	Audio-navigation unit(1), Audio unit(2)
3	GRN	S GND	Audio-navigation unit(1), Audio unit(2)
4	WHT	L ch	Audio-navigation unit(1), Audio unit(2)
5	BRN	R ch	Audio-navigation unit(1), Audio unit(2)
(1) With navigation (2) Without navigation
