System Indicator: Notes

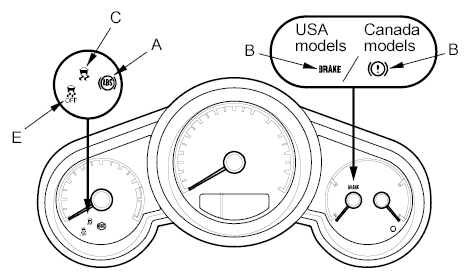

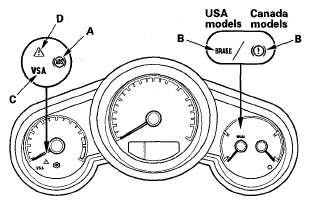

This system has four indicators:
- ABS indicator (A)
- Brake system indicator (B)
- VSA indicator (C)
- VSA activation indicator ('07-08 models) (D)
- VSA OFF indicator ('09-10 models) (E)
When the system detects a problem, it will turn the appropriate indicator on. Depending on the failure, the VSA modulator-control unit determines which indicators are turned on.
When the system is OK, each indicator comes on for about 2 seconds after turning the ignition switch ON (II), then goes off.
