Pressure Reducing Mode

VSA NO valve open, VSA NC valve closed, inlet valve closed, outlet valve open.

Caliper fluid flows through the outlet valve to the reservoir.

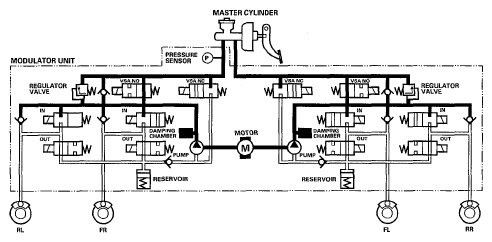

Fig 1: Identifying Pressure Reducing Mode - System Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
