Start-up procedure and Diagnostic Menu

Start the vehicle, and at the disclaimer screen use the navigation display hard buttons as described:

Make sure the battery is in good condition, then press and hold the MAP/GUIDE, MENU, and CANCEL buttons for about 3 seconds. The display screen goes directly to the Select Diagnosis Items menu shown.

• Self-Diagnosis Mode (runs the automatic diagnosis of the navigation system)
• Detail Information & Setting (allows you to manually diagnose the navigation system)

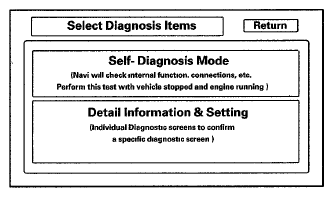

Fig 1: Navigation Screen Display - Select Diagnosis Items Menu

Courtesy of AMERICAN HONDA MOTOR CO., INC.
