How to Use the Self-Diagnostic Function with the HDS

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

Make sure the ignition switch is in LOCK (0).
Connect the HDS to the DLC.

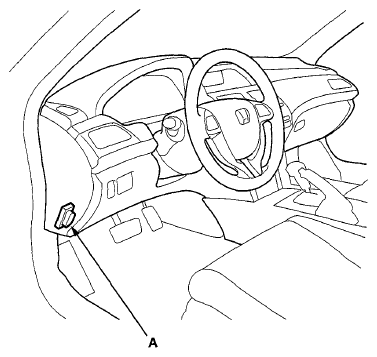

Fig 1: Locating Data Link Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Turn the ignition switch to ON (II).
Make sure the HDS communicates with the vehicle and the climate control unit. If it does not, go to the DLC circuit troubleshooting (see DLC CIRCUIT TROUBLESHOOTING ).
Select HVAC/CLIMATE CONTROL in the BODY ELECTRICAL menu.
Select INSPECTION in the HVAC/CLIMATE CONTROL menu.
Select CLIMATE CONTROL SELF TEST in the INSPECTION menu.
Check for DTCs. If any DTCs are indicated, write down the DTCs, then go to the indicated DTC troubleshooting.
NOTE:
- After troubleshooting, clear the DTCs with the HDS.
- For specific operations, refer to the user's manual that came with the HDS.
