TPMS Control Unit Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure the TPMS control unit mounting bracket is not bent or twisted as this may affect its communication with the tire pressure sensors.

Turn the ignition switch to LOCK (0).
Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
Remove the flange bolt (A), then remove the TPMS control unit (B) with the bracket (C).
NOTE: The TPMS control unit is located over the brake pedal.

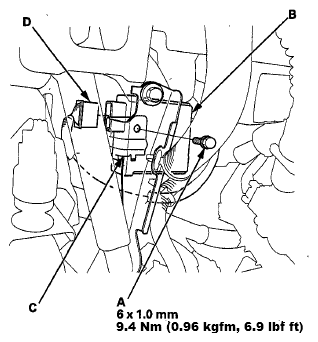

Fig 1: Identifying Flange Bolt, TPMS Control Unit, Bracket And TPMS Control Unit 20P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the TPMS control unit 20P connector (D).
Remove the TPMS control unit (A) from the bracket (B).
NOTE: To disconnect the TPMS control unit from its bracket, insert a small flat-tipped screwdriver (C) between the TPMS control unit and the bracket to release the hook (D), then slide out the TPMS control unit.

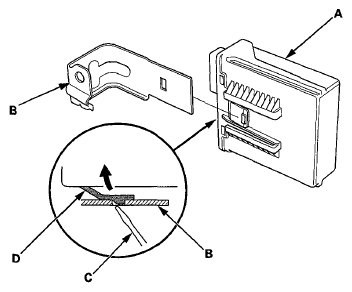

Fig 2: Identifying TPMS Control Unit, Bracket And Hook
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the TPMS control unit in the reverse order of removal.
NOTE: Make sure the TPMS control unit is properly installed. You will hear a click when the TPMS control unit is securely mounted on the bracket.
Connect the HDS, and memorize the tire pressure sensor IDs using the TPMS tool (see MEMORIZING THE TIRE PRESSURE SENSOR ID ).
