Wiper/Washer Switch Test/Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering column covers (see COLUMN COVER REMOVAL/INSRALLATION ).
Disconnect the dashboard wire harness 8P connector (A) from the wiper/washer switch (B).

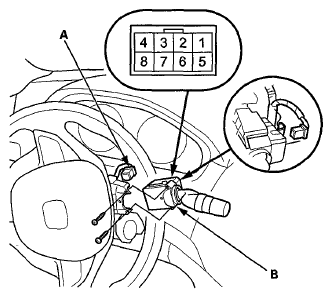

Fig 1: Identifying Dashboard Wire Harness 8P Connector And Wiper/Washer Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two screws, then slide out the wiper/washer switch.
Inspect the connector terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, Go to next step.
Check for continuity between the terminals in each switch position according to the table.
Windshield

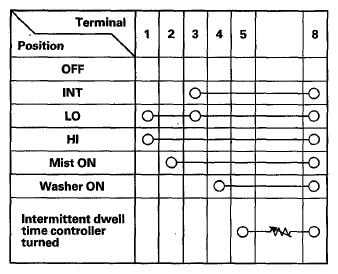

Fig 2: Windshield Terminals Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear window

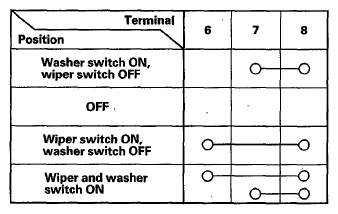

Fig 3: Rear Window Terminals Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
Install the switch in the reverse order of removal.
