Component Location Index

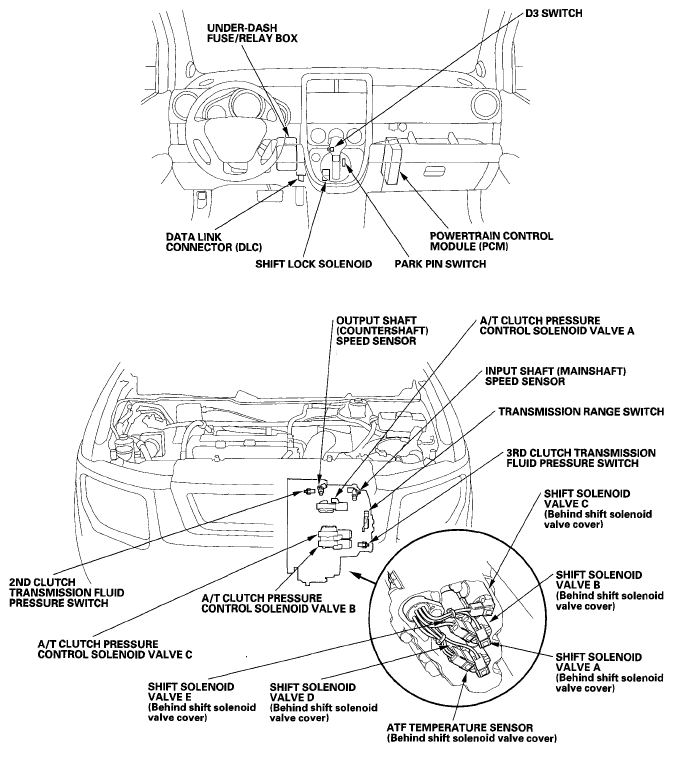

Fig 1: Identifying Automatic Transmission Component Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.

4WD

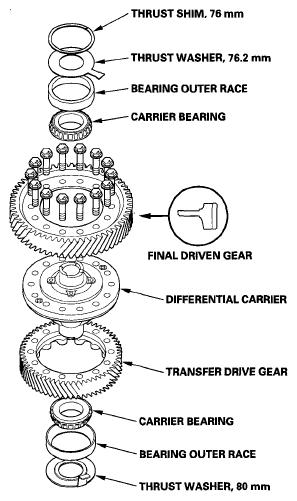

Fig 1: Identifying A/T Differential Components (4WD)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

2WD

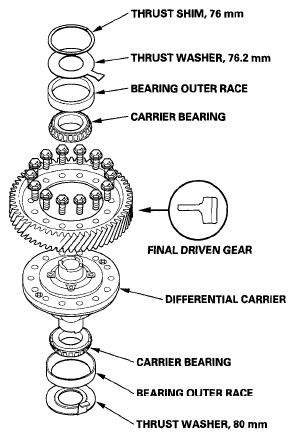

Fig 2: Identifying A/T Differential Components (2WD)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
