Mode Control Motor Replacement

  1. Remove the ECM/PCM (see ECM/PCM REPLACEMENT ).
  2. Disconnect the 7P connector (A) from the mode control motor (B). Remove the self-tapping screws and the mode control motor from the heater unit.

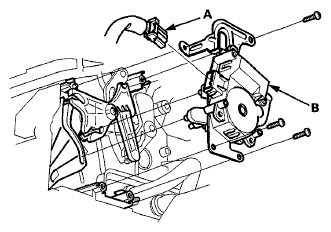

    Fig 1: Identifying Mode Control Motor And 7P Connector
    G06680522Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the motor in the reverse order of removal. After installation, make sure the motor runs smoothly.
