Poor AM or FM Radio Reception Or Interference (With Navigation)

NOTE:
  • Check the vehicle battery condition first.
  • Check the radio reception in an open area. Poor reception/interference can be caused by the following:
    • The radio station is far away.
    • A tall building, a mountain, or a high-voltage power line is nearby.
    • Aftermarket window tint.
    • Check for aftermarket accessories including cell phones and chargers plugged into the vehicle accessory power sockets.
  1. Turn the ignition switch to ON (II).
  2. Do SEEK STOP TEST  .

    Is the test vehicle within 10 % of the known-good vehicle?

    YES  - Multipath interference or weak station. Operation is normal.

    NO  - Go to step  3.

  3. Check if the radio reception/interference is the same in several locations.

    Is the reception/interference the same?

    YES  - Go to step  4.

    NO  - Multipath interference or weak station. Operation is normal.

  4. Check the reception/interference while the engine is running.

    Is there noise with the engine running?

    YES  - Check the antenna and radio grounds. If OK, check the charging system and the ignition system.

    NO  - Go to step  5.

  5. Turn the ignition switch to LOCK (0).
  6. Check the AM/FM/XM antenna mast for cracks, or other damage. Make sure that the AM/FM/XM antenna mast isn't loose.
    NOTE: Do not use any tools to tighten the AM/FM/XM antenna mast.

    Is there any damage?

    YES  - Replace the AM/FM/XM antenna mast (see AM/FM/XM ANTENNA REPLACEMENT  ).

    NO  - Go to step  7.

  7. Disconnect the AM/FM/XM antenna 3P connector from the AM/FM/XM antenna.
  8. Turn the ignition switch to ON (II).
  9. Turn on the audio-navigation unit.
  10. Measure the voltage between AM/FM/XM antenna 3P connector No. 3 terminal and body ground.

    Is there battery voltage?

    YES  - Go to step  15.

    NO  - Go to step  11.

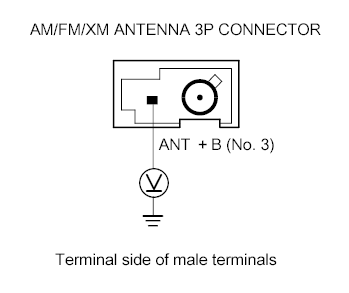

    Fig 1: Measuring Voltage Between AM/FM/XM Antenna 3P Connector No. 3 Terminal & Body Ground
    G00487482Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Turn the ignition switch to LOCK (0).
  12. Disconnect audio-navigation unit connector E (3P).
  13. Check for continuity between audio-navigation unit connector E (3P) terminal No. 3 and the AM/FM/XM antenna 3P connector terminal No. 3.

    Is there continuity?

    YES  - Go to step  14.

    NO  - Repair open in the wire between the audio unit and the AM/FM/XM antenna. Also check the AM/FM antenna lead/sub lead connector.

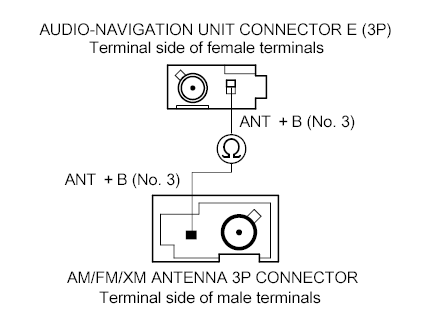

    Fig 2: Checking Continuity Between Audio-Navigation Unit Connector E (3P) No. 3 Terminal & AM/FM/XM Antenna 3P Connector No. 3 Terminal
    G00487483Courtesy of AMERICAN HONDA MOTOR CO., INC.
  14. Check for continuity between the audio-navigation unit connector E (3P) terminal No. 3 and body ground.

    Is there continuity?

    YES  - Repair short to body ground in the wire between the audio-navigation unit and AM/FM/XM antenna.

    NO  - Replace the audio-navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION ).

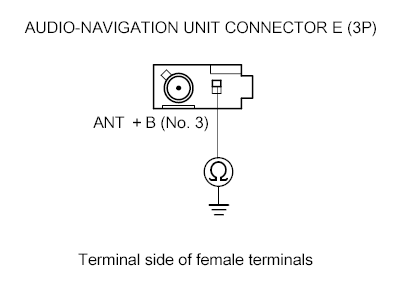

    Fig 3: Checking Continuity Between Audio Unit Connector E (3P) Terminal No. 3 & Body Ground
    G00487484Courtesy of AMERICAN HONDA MOTOR CO., INC.
  15. Turn the ignition switch to LOCK (0).
  16. Disconnect audio-navigation unit connector E (3P).
  17. Check for continuity between audio-navigation unit connector E (3P) terminal No. 1 and AM/FM/XM antenna 3P connector terminal No. 1

    Is there continuity?

    YES  - Go to step  18.

    NO  - Replace the AM/FM antenna lead and/or sublead.

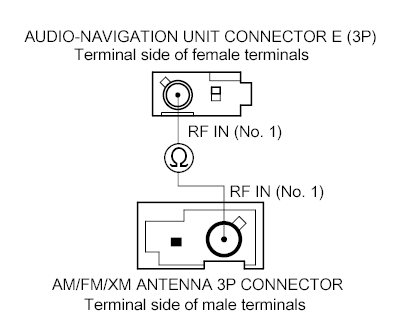

    Fig 4: Checking Continuity Between Audio-Navigation Unit Connector E (3P) No. 1 Terminal & AM/FM/XM Antenna 3P Connector No. 1 Terminal
    G00487485Courtesy of AMERICAN HONDA MOTOR CO., INC.
  18. Check for continuity between audio-navigation unit connector E (3P) terminal No. 1 and body ground.

    Is there continuity?

    YES  - Replace the AM/FM antenna lead and/or sublead.

    NO  - Go to step  19.

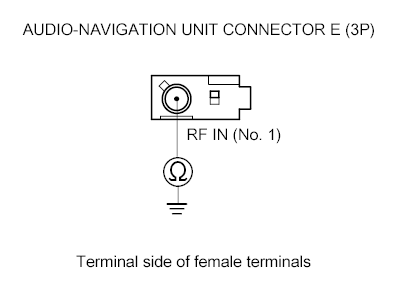

    Fig 5: Checking Continuity Between Audio-Navigation Unit Connector E (3P) Terminal No. 1 & Body Ground
    G00487486Courtesy of AMERICAN HONDA MOTOR CO., INC.
  19. Check for continuity between audio-navigation unit connector E (3P) terminal No. 2 and AM/FM/XM antenna 3P connector terminal No. 2.

    Is there continuity?

    YES  - Go to step  20.

    NO  - Replace the AM/FM antenna lead and/or sublead.

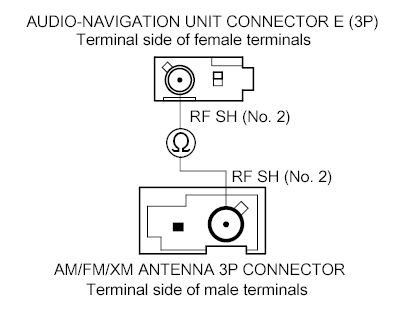

    Fig 6: Checking Continuity Between Audio-Navigation Unit Connector E (3P) Terminal No. 2 & AM/FM/XM Antenna 3P Connector No. 2 Terminal
    G00487487Courtesy of AMERICAN HONDA MOTOR CO., INC.
  20. Check for continuity between audio-navigation unit connector E (3P) terminals No. 1 and No. 2.

    Is there continuity?

    YES  - Replace the AM/FM antenna lead and/or sublead.

    NO  - Go to step  21.

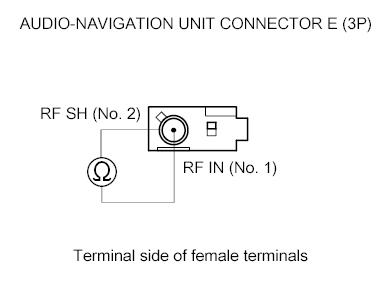

    Fig 7: Checking Continuity Between Audio-Navigation Unit Connector E (3P) Terminal No. 1 & 2
    G00487488Courtesy of AMERICAN HONDA MOTOR CO., INC.
  21. Substitute a known-good AM/FM antenna lead and/or sublead, and check the radio reception.

    Is the reception normal?

    YES  - Replace the AM/FM antenna lead and/or sublead.

    NO  - Substitute a known-good AM/FM/XM antenna (see AM/FM/XM ANTENNA REPLACEMENT  ) and recheck. If the reception is still poor, replace the audio unit (see AUDIO UNIT REMOVAL/INSTALLATION  ).
