USB Adapter Unit Replacement

  1. Remove the audio-navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION ).
  2. Removal the center panel (see CENTER PANEL REMOVAL/INSTALLATION ).
  3. Loosen the bolts (A), then pull out the USB adapter unit (B).

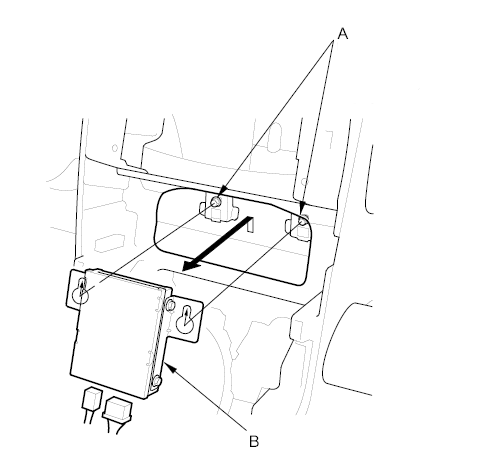

    Fig 1: Identifying USB Adapter Unit & Bolts
    G00487497Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the connectors from the USB adapter unit, and remove it.
  5. Install the USB adapter unit in the reverse order of removal.
