Microphone Replacement

  1. Remove the front individual map light lens (A).

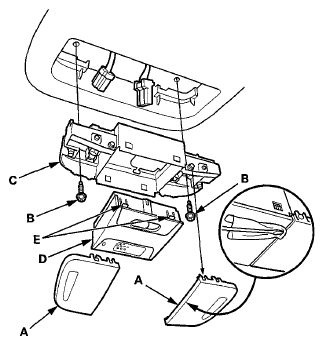

    Fig 1: Locating Front Individual Map Light Lens, Bolts, Map Light Housing, Microphone And Retaining Tabs
    G08049699Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the bolts (B) and pull down the map light housing (C), then disconnect the connectors.
  3. Carefully pry off the microphone (D) from the map light housing while pressing the retaining tabs (E).
  4. Install the microphone in the reverse order of removal.
