Component Location Index

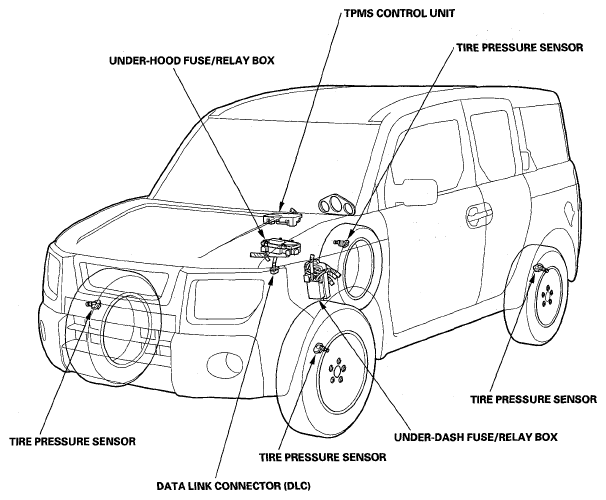

Fig 1: Identifying TPMS (Tire Pressure Monitoring System) Component Location - ('07-11 USA Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
