Power Mirror Switch TEST/REPLACEMENT
- Remove the driver's door panel (see
FRONT DOOR PANEL REMOVAL/INSTALLATION
).
- Disconnect the 13P connector from the power mirror switch (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.

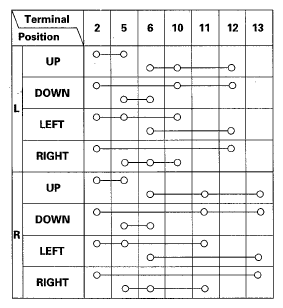

- Check for continuity between the terminals in each switch position according to the table below.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- If the continuity is not as specified, remove the screws and replace the switch.
