Front Seat Disassembly/Reassembly
SRS components are located in this area. Review the SRS COMPONENT LOCATION INDEX and PRECAUTIONS AND PROCEDURES , before performing repairs or service.
- Check the operation of the driver's seat position sensor after any of these actions (see DRIVER'S SEAT POSITION SENSOR OPERATION CHECK
).
- Driver's seat position sensor replacement
- Cover plate (front side of driver's seat slide rail) replacement
- Calibrate the ODS unit after any of these actions (see ODS UNIT CALIBRATION
).
- Front passenger's seat replacement (including any seat components)
- Replacement of the seat weight sensors
- After a vehicle collision
NOTE:
- Take care not to tear the seams or damage the seat covers.
- Put on gloves to protect your hands.
- Remove the front seat (see FRONT SEAT REMOVAL/INSTALLATION ).
- Remove these items:
- Front seat-back cover (see FRONT SEAT-BACK COVER REPLACEMENT )
- Front seat cushion cover (see FRONT SEAT CUSHION COVER REPLACEMENT )
- Front seat belt buckle (see SEAT BELT BUCKLE )
- Front seat belt upper anchor (see step 7 on FRONT SEAT BELT )
- Front seat belt lower anchor (see step 5 on FRONT SEAT BELT )

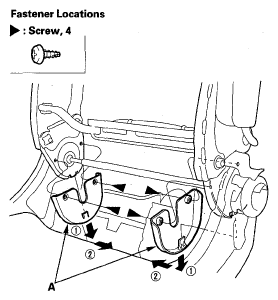

- Remove the screws securing the recline inner covers (A).
- Disconnect and/or detach the side airbag connector clip (A) on each side seat, and the ODS subharness connectors (B) on the passenger's seat. Remove the wire tie(s) (C).
Driver's seat
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Passenger's seat

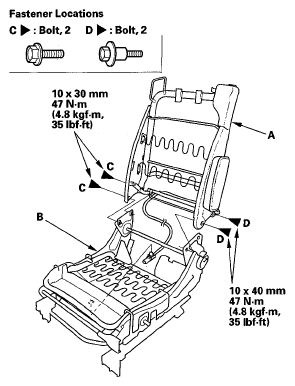

- Remove the bolts, then separate the seat-back (A) and the seat cushion (B).
- Reassemble the front seat in the reverse order of removal, and note these items:
- Apply multipurpose grease to the moving portions of the seat tracks.
- Replace the wire ties with new ones.
- Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
- Make sure the slide cables on both side seats and the rear seat access rod on the passenger's seat are connected securely.
