Circuit Diagram

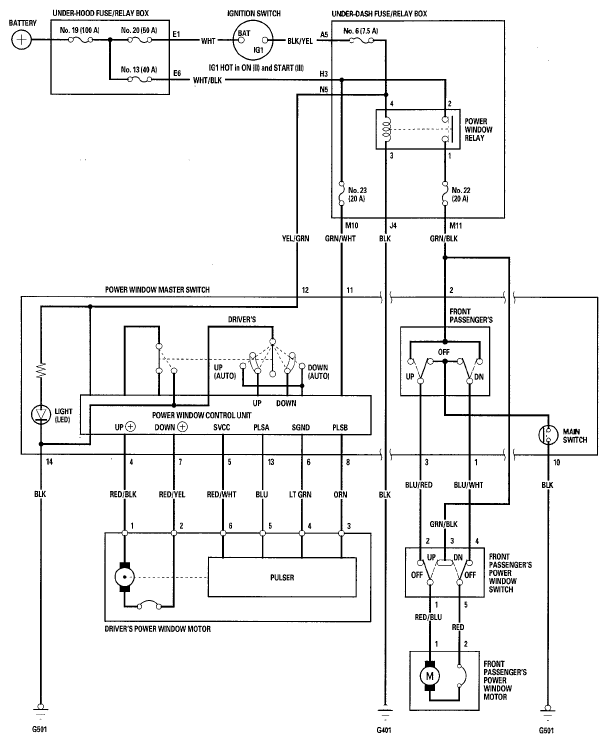

Fig 1: Identifying Power Window Motor Circuit Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
