Sensor Cluster Replacement

NOTE:
  • Do not damage or drop the sensor as it is sensitive.
  • Do not use power tools when replacing the sensor.
  1. Turn the ignition switch to LOCK (0).
  2. Remove the center console: SC model (see SC MODEL ), Except SC model (see EXCEPT SC MODELS ('07-08 MODELS) ).
  3. Disconnect the sensor cluster 6P connector (A).

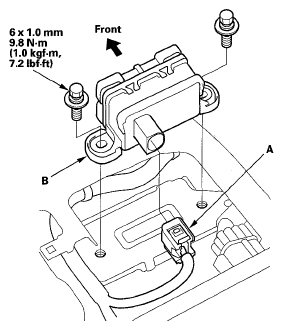

    Fig 1: Sensor Cluster 6P Connector & Sensor Cluster With Torque Specifications
    G05450832Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the sensor cluster (B).
  5. Install the sensor cluster in the reverse order of removal.
  6. Do VSA SENSOR NEUTRAL POSITION MEMORIZATION  .
