Pressure Reducing Mode

VSA NO valve open, VSA NC valve closed, inlet valve closed, outlet valve open, pump motor ON.

Caliper fluid flows through the outlet valve to the reservoir.

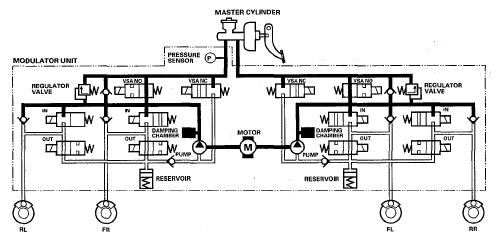

Fig 1: Identifying VSA Control - Pressure Reducing Mode

Courtesy of AMERICAN HONDA MOTOR CO., INC.
