Wheel Speed Sensor Replacement: Front
- Turn the ignition switch to LOCK (0).

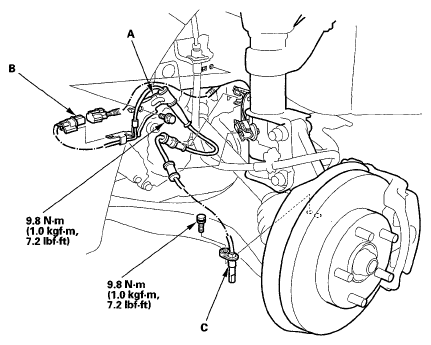

- Remove the bracket (A), then disconnect the wheel sensor connector (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Release from the clamps, then remove the bolt, and the wheel sensor (C).
- Install the wheel sensor in the reverse order of removal, and note these items:
- Install the sensor carefully to avoid twisting the wires.
- If the wheel sensor comes in contact with the wheel bearing, it is faulty.
- Start the engine, and check that the ABS and VSA indicators go off.
- Test-drive the vehicle, and check that the ABS and VSA indicators do not come on.
