Component Location Index & Drive Belt Routing

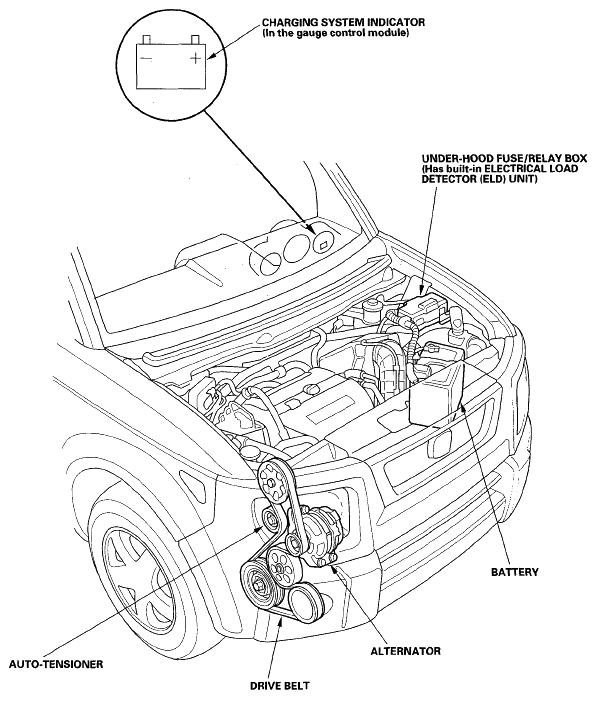

Fig 1: Identifying Charging System Replacement Components & Drive Belt Routing
G05448445Courtesy of AMERICAN HONDA MOTOR CO., INC.
