DTC P0752: Shift Solenoid Valve A Stuck ON: Notes

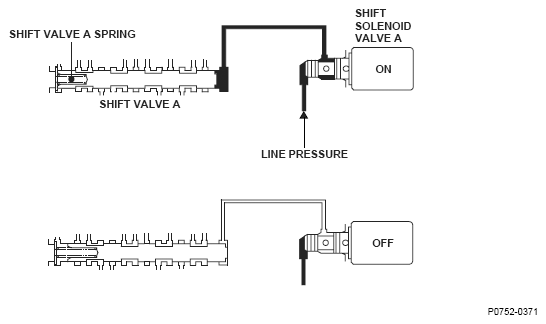

Fig 1: Shift Solenoid Valve A Operation Diagram
G04816834

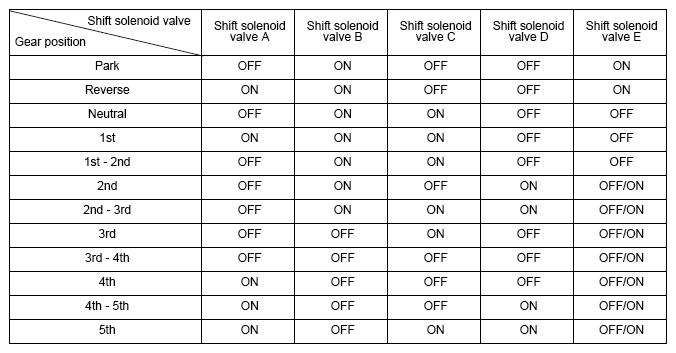

Shift solenoid valve driving signal combination table

Fig 2: Shift Solenoid Valve Driving Signal Combination Table
G04826917
